Rogers Brothers

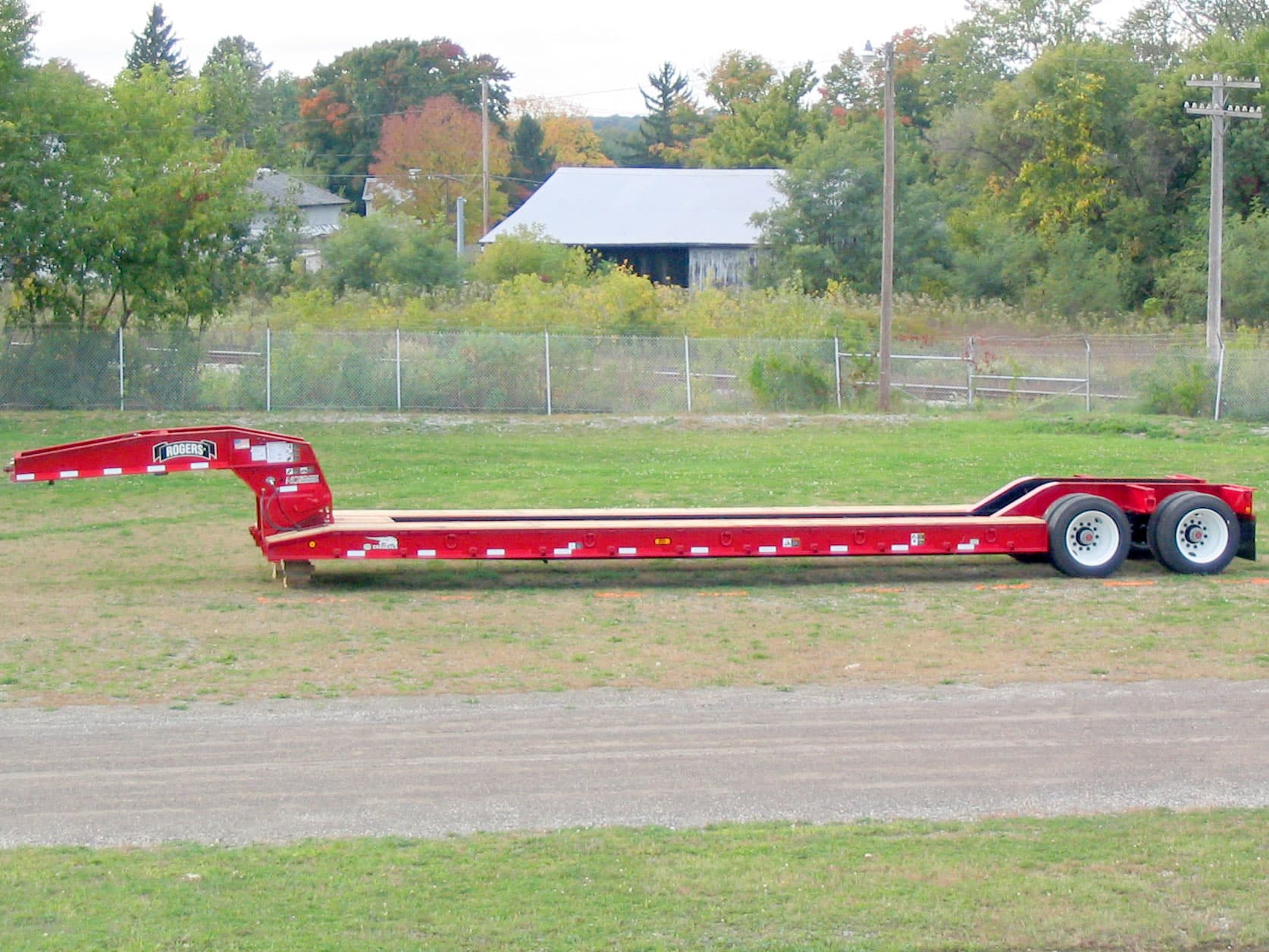

CY35 35-Ton Detachable Gooseneck
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 24 ft
- Deck height
- 22 in
Overview
From Rogers Brothers
CY35 is the Century Series 35-ton capacity trailer with the "No Foot"® Direct-Push style detachable gooseneck. This durable lowbed's capacity is based on the concentrated load in 2/3rd of the deck. Standard features: Patented "No Foot"® direct-push style gooseneck; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with paddle shoe; Hydraulics power source: tractor PTO; Main beam / side channel deck design; Exclusive Croucher low, taperd front with concealed beam hooks; Side channel reinforcing of first 6'-0" of deck; 1 3/4" air-dried oak decking / No center boards; Total (22) bracket bearings for removable side brackets; Total (10) bent lashing D's; Arch-type rear frame with wood decking to the tires; Outriggers between wheels; "Boom trough" in rear frame; Flag holders; US DOT-approved rubber-mounted LED lights with sealed wiring and 7-wire socket; Epoxy primer; ROGERS Red or Black industrial enamel finish.
Specifications
Capacity
- Capacity
- 35.0-ton
- Concentrated Load
- 70,000-pounds
- Concentrated Load Length
- 16'-0"
Dimensions
- Deck Length
- 24'-0"
- Loaded Deck Height
- 22"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 2 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
