Rogers Brothers
CY50 50-Ton Detachable Gooseneck
- Capacity
- 50 ton
- Axles
- 3
- Deck length
- 24 ft
- Deck height
- 22 in
Overview
From Rogers Brothers

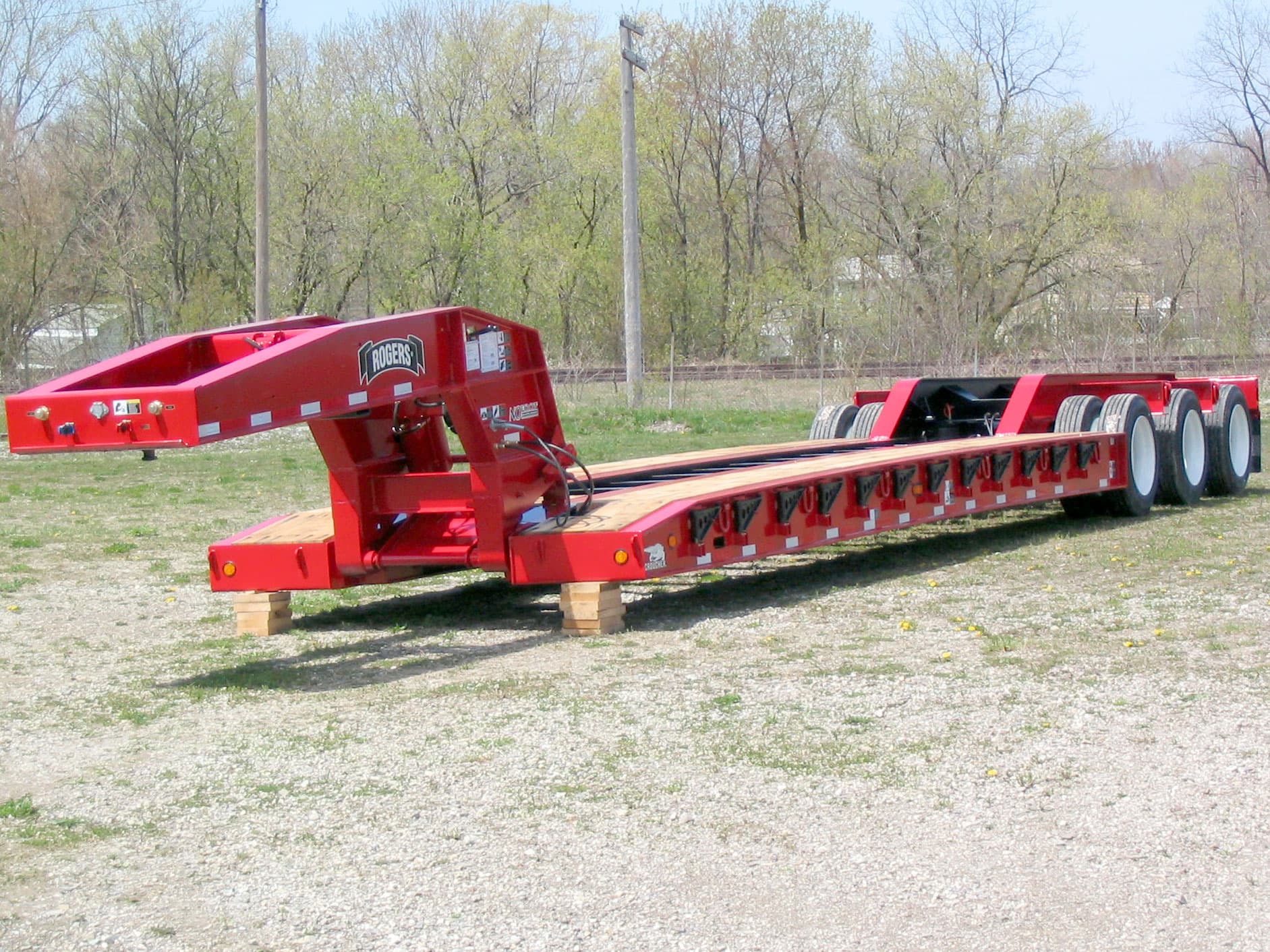

CY50 is the ROGERS® Century 50-ton capacity detachable gooseneck lowbed trailer. It features the exclusive "Croucher"® tapered front end with concealed beam hooks for unobstructed loading. Standard features: Patented "No Foot"® Direct-Push style gooseneck; Trap door extension blocks for adjusting 5th wheel height; Hydraulic gooseneck jack with paddle and shoe; Hydraulic power source: Tractor PTO; Four beam cambered deck design; Exclusive "Croucher"® low, tapered front with concealed beam hooks; Side beam flange reinforcing of first 6'-0" of deck; 1 3/4" air-dried oak decking; No center boards; Total (12) bent lashing D's; Total (24) side brackets; Arch-type rear frame with oak decking to tires; Outriggers between wheels; "Boom Trough"; LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).
Specifications
Capacity
- Capacity
- 50.0-ton
- Concentrated Load
- 100,000-pounds
- Concentrated Load Length
- 16'-0"
Dimensions
- Deck Length
- 24'-0"
- Loaded Deck Height
- 22"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 3 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
