Talbert Manufacturing
Drop Deck
Specifications
Gooseneck
- Fixed Gooseneck
- 1-1/8 in. Shiplap Apitong Flooring
General
- 110,000 lbs. Distributed 70,000 lbs. in 10 ft.
- Construction: T1 and 80K Beams
- 11 ft. 0 in. Upper 30-in. Kingpin Setting
- Ridewell Air Ride Suspension
- 48 and 53 ft. OAL
- Lights: DOT Rubber Mount with Modular Harness
Dimensions
- 8 ft.-6 in. Wide Deck
- Winch Cable Pipe on Rear of Gooseneck in
- 35-42 in. Loaded Deck Height
- One Pipe Pocket Each End of Rear Gooseneck Pipe

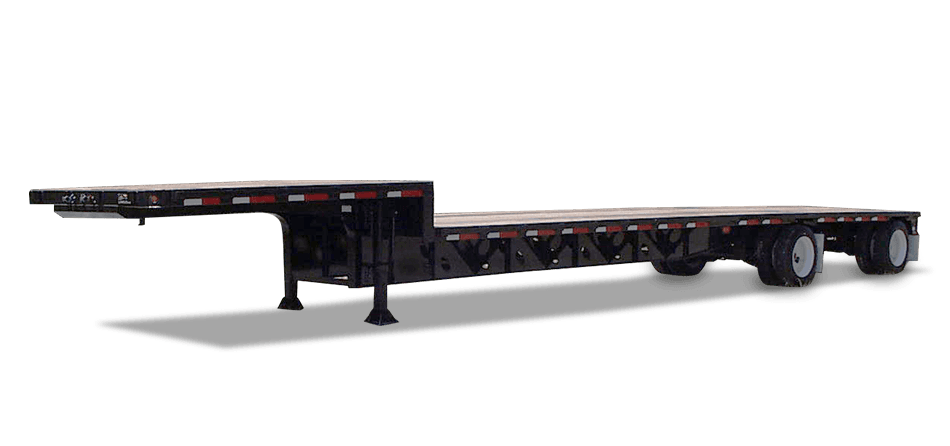

About step deck trailers
A step deck (or drop deck) has a short upper deck over the fifth wheel and a longer lower deck stepped down behind it. The lower deck sits around 36 to 40 inches high — roughly two feet lower than a flatbed — so it carries freight up to about 10 feet tall without an over-height permit. Common lengths are 48 and 53 feet, with ramps optional for wheeled equipment.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
