Murray Trailers
Easy Tail
Low Profile 8-Tire Low Bed Trailer
- Capacity
- 32 ton
- Axles
- 2
- Deck length
- 21.5 ft
- Deck height
- 27 in
- GVWR
- 80,000 lb
Overview
From Murray Trailers

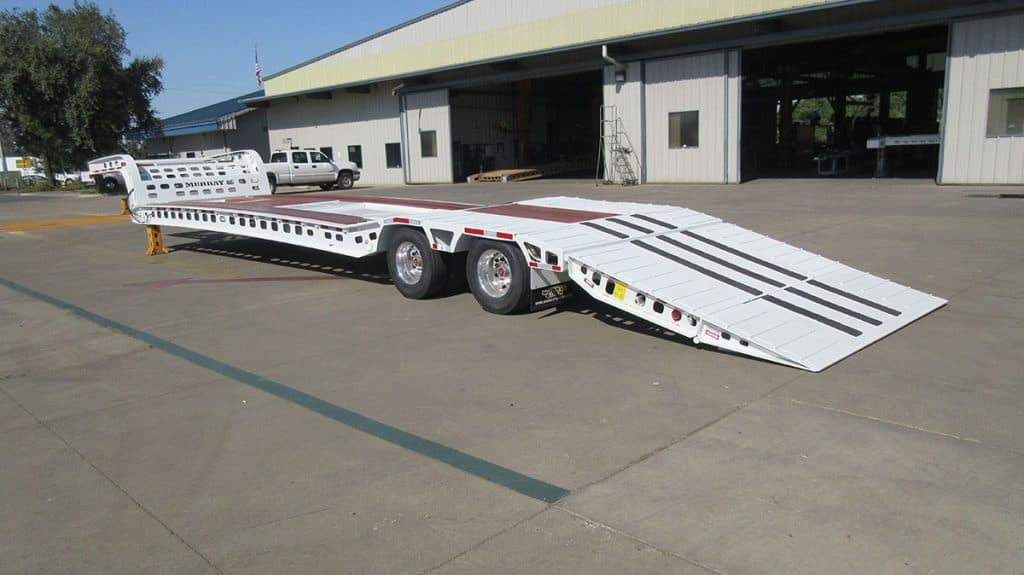

Low Profile 8-Tire Low Bed Trailer. 100% Air Powered Folding Tail, No Hydraulics
Specifications
Capacity
- Permitted NET Load
- 32 Tons
- GVWR
- 80,000 lbs.
- GAWR
- 2 Axles @ 20,000 lbs. each
Construction
- Construction
- 130 KSI/100 KSI yield steel
- Decking
- 3” Apitong outside, 2” Douglas Fir inside
- Paint
- DuPont IMRON ELITE
Dimensions
- Tail Loading Angle
- 14.5 Degrees
- Deck Height
- 27” nominal center of deck (dependent on 5th wheel height)
- Over-front loading
- 10”
- Over-rear loading
- 34”
- Overall Length
- 46’-10” with standard 21’-6” deck, gooseneck, & tail
- Width
- 8’ – 6”
Running Gear
- Axles
- 2 each, 20,000 lbs. each
- Suspension
- Air Ride Suspension
- Axle Spacing
- 54-inches
- Wheels
- Aluminum, 8-hole, hub piloted aluminum
- Tires
- 235/75R x 17.5 – Hankook or Continental

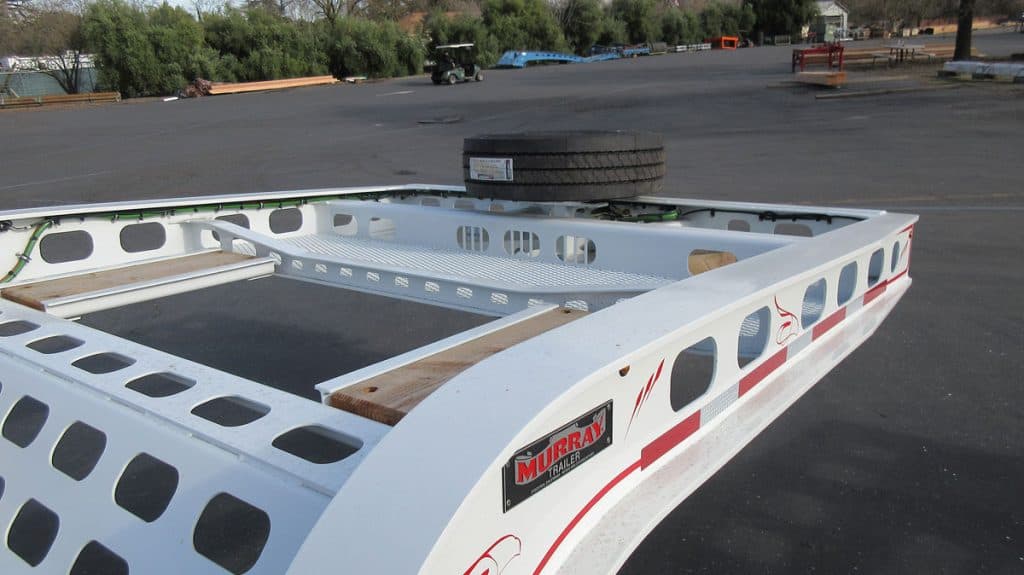

Gooseneck
- Goosenecks
- Mechanical Removable wide neck for jeep or trailer
Weight
- Base Trailer Weight
- 14,200 lbs.
Electrical
- Lighting
- All LED
Options
- Deck Lengths to 23’-4”
- Optional
- 16” Longer Gooseneck
- Optional
- Second kingpin
- Optional
- Air operated “RoboLink” & Deck Latch release (US PAT #8752854, 9272591)
- Optional
- Tire Inflation System
- Optional
- Disc brakes with ABS
- Optional
- Full or half wheel covers
- Optional
- Electric Winch
- Optional
- Lockable tool boxes in wide neck
- Optional
- Front wedge & paver ramps
- Optional
- ”D” Rings
- Optional
- Outriggers, removable or sliding
- Optional

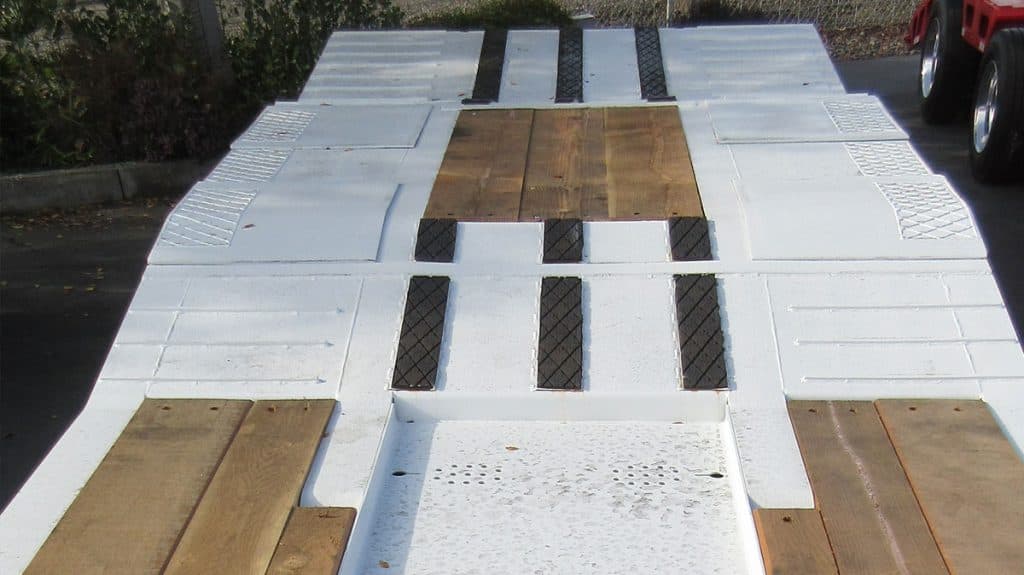

- Chain boxes
- Optional
- Deck well or pan
- Optional
- Cleral Scale System, wireless (AIR)
- Optional
- Spare wheel & tire with lockable mount
- Optional
- Rubber strips on tail
- Optional
Documents
- Trailer Brochure (PDF)
- https://www.murraytrailer.com/wp-content/uploads/2020/11/EasyTail-Brochure-200413.pdf
- Trailer Spec Sheet (PDF)
- https://www.murraytrailer.com/wp-content/uploads/2020/11/EasyTail-22-6.pdf
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
