Rogers Brothers
FG35D-3XRS 35-Ton Fixed Gooseneck
- Capacity
- 35 ton
- Axles
- 3
- Deck length
- 22 ft
Overview
From Rogers Brothers

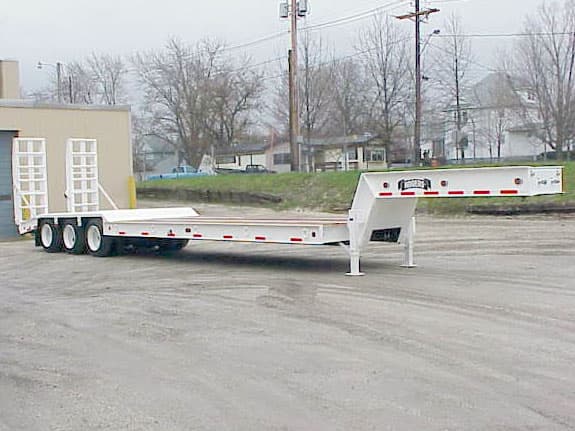

This 35-ton fixed gooseneck trailer has pin type landing gear, 22'-0" deck and hydraulic powered ladder-style ramps. Customer specified additional clearance lights on the sides of the deck and gooseneck, and ROGERS white color finish.
Specifications
Capacity
- Capacity
- 35.0-ton
- Concentrated Load
- 70,000-pounds
- Concentrated Load Length
- 11'-0"
Dimensions
- Deck Length
- 22'-0"
- Deck Width
- 8'-6"
- Deck Style
- Double Drop
Running Gear
- Axles
- 3 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Specialized
- Trailer Use
- Rear Loading: Fixed Gooseneck
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
