Rogers Brothers
FG35L-RS 35-Ton Fixed Gooseneck
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 22 ft
Overview
From Rogers Brothers

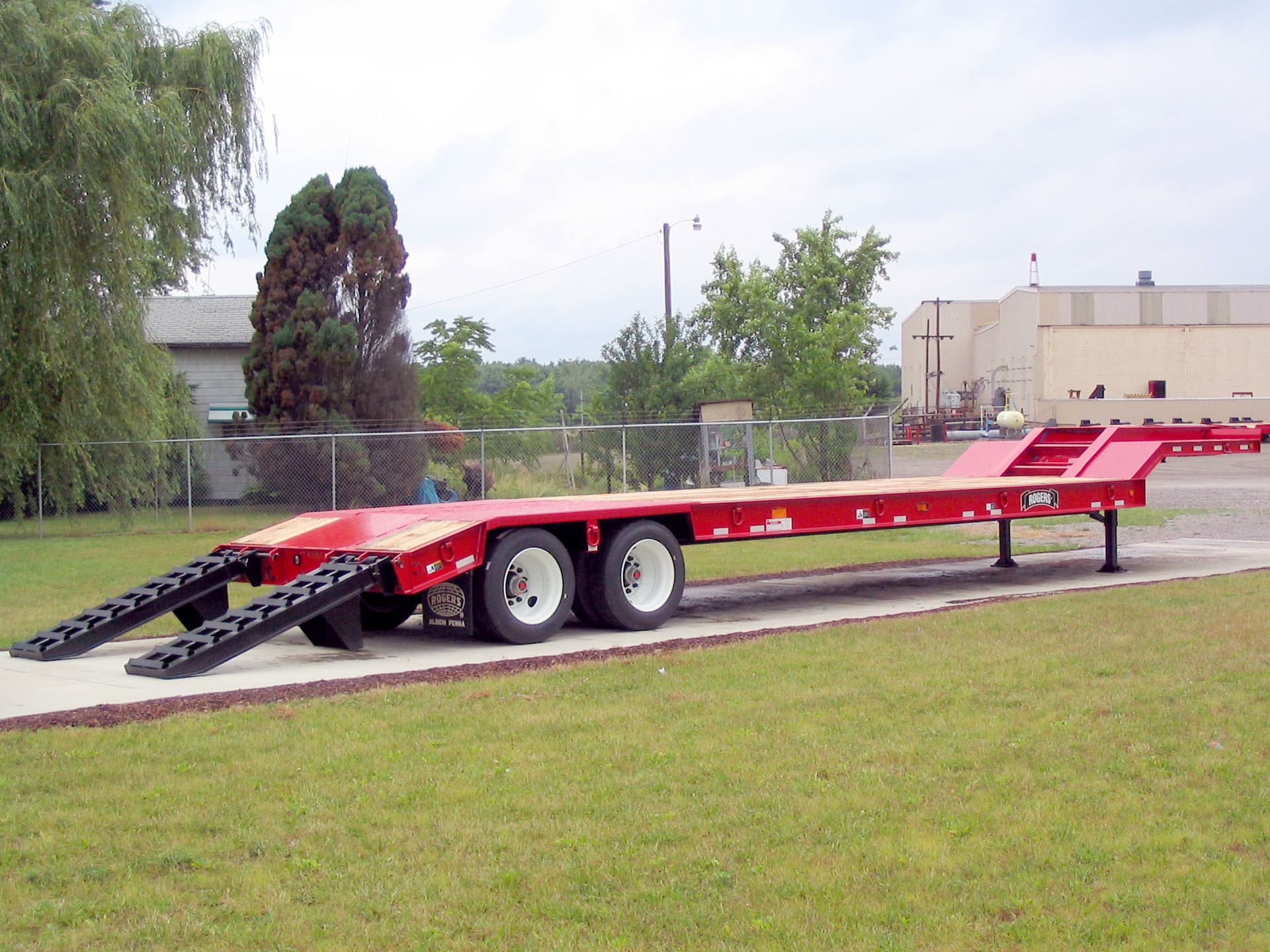

This FG35L-RS is a 35-ton capacity fixed gooseneck trailer equipped with rear ladder-style ramps, heavy-duty spring suspension, two-speed landing gear and and motor grader ramps on the gooseneck.
Specifications
Capacity
- Capacity
- 35.0-ton
- Concentrated Load
- 70,000-pounds
- Concentrated Load Length
- 15'-0"
Dimensions
- Deck Length
- 22'-0"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 2 axles
- Axle Type
- 22,500 lbs. capacity with oil-bathed bearings
- Suspension
- 50,000 lb. capacity tandem axle heavy-duty multi-leaf 4-spring
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Fixed Gooseneck
- Trailer Use
- Rear Loading: Fixed Gooseneck
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
