Felling Trailers
HD Series – X-FORCE
“Heavy Duty” HD Series
- Capacity
- 50 ton
- Deck height
- 24 in
- GVWR
- 118,700 lb
Overview

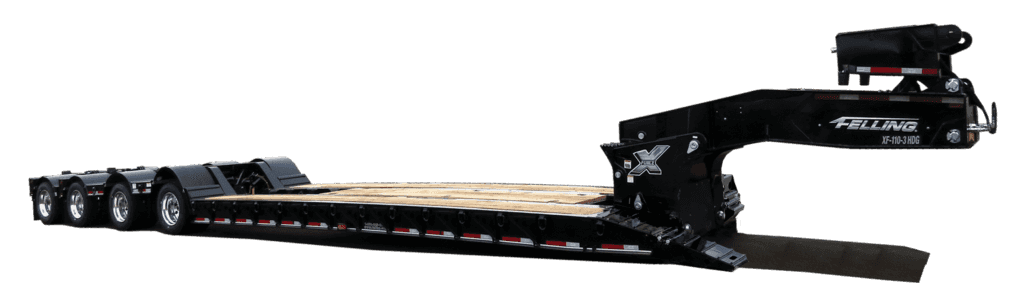

Felling’s HD Series – X-Force detachable gooseneck trailer line (Heavy Duty) is built with rugged brute strength to tackle the most demanding capacity loads. Load Capacities Ranging from 100,000 lbs. to 120,000 lbs. Distributed in 12’. The HD Series Main Deck is Engineered, Cambered, Fabricated 16” Main Beams and Side Beams, with T-1 Flanges, 10” I-Beam Crossmembers on 24” Centers. View our trailer model details in the product sheets below. If you’re ready for a quote fill out the request a quote form. All submitted information is considered confidential. Contact Your Felling Trailers Regional Sales Manager for a Quote "*" indicates required fields © 2026 Felling Trailers, Inc. 1/2026 Δ document.getElementById( "ak_js_1" ).setAttribute( "value", ( new Date() ).getTime() );
Specifications
Capacity
- Capacity
- 100,000 lbs. to 120,000 lbs. Distributed in 12’ lbs
- GVWR
- 118,700 lbs. to 140,000 lbs. lbs
Dimensions
- Deck Height (loaded)
- 24″ Loaded, 8″ Ground Clearance
Gooseneck
- Gooseneck
- Flip Neck Reinforced, Including Main Frame. (Optional Flip Neck Extension Brackets and Drop-in King Pin – Optional Flip Neck Extension Available up to 168” Swing Clearance)
- Gooseneck Type
- Detachable
General
- Trunnion
- Modular Trunnion Approach
- XF-HD-110-3 HDG
- (PDF)

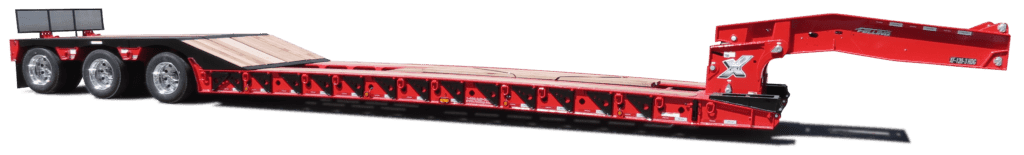

- XF-HD-120-3 HDG
- (PDF)
- Manufacturer
- Felling Trailers
Deck
- Main Deck
- Engineered, Cambered, Fabricated 16” Main Beams and Side Beams, with T-1 Flanges, 10” I-Beam Crossmembers on 24” Centers
- Rear Deck & Trunnion
- Stinger Reinforced Trunnion Main Frame (XF-HD-110-3 Single Axle, XF-HD-120-3 Tandem Axle) Plumbing and Brackets
Models
- “Heavy Duty” HD Series
- Felling’s HD Series – X-Force detachable gooseneck trailer line (Heavy Duty) is built with rugged brute strength to tackle the most demanding capacity loads. Load Capacities Ranging from 100,000 lbs. to 120,000 lbs. Distributed in 12’. The HD Series Main Deck is Engineered, Cambered, Fabricated 16” Main Beams and Side Beams, with T-1 Flanges, 10” I-Beam Crossmembers on 24” Centers.
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
