Felling Trailers
Hydraulic Tail-Perimeter Frame

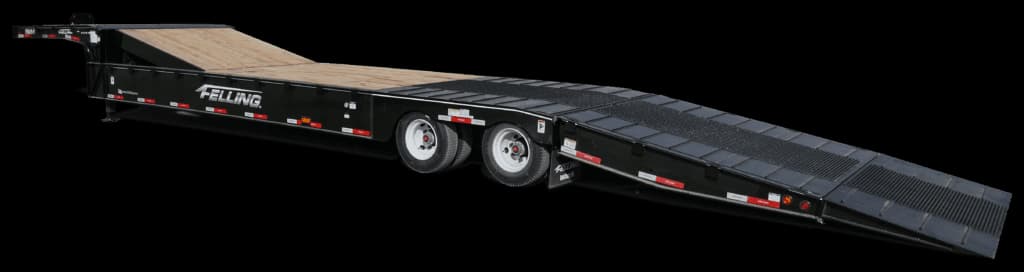

Hydraulic Tail Trailer – Perimeter Frame Trailer
- Deck height
- 35 in
Overview
Perimeter Frame trailers are ideal for those in the Commercial Transport, Construction, Implement, and Rental industries. This trailer provides the user with the flexibility to transport multiple pieces of small equipment or one to two large pieces. Felling’s hydraulic folding tail drop deck trailer design also provides ease in the loading of low clearance machines like rollers, scissor lifts, and aerial lifts, with a six-degree (6º) break-over at the end of the main deck. The hydraulic tail provides the operator with the capability of dock loading up to 60″ high. Standard with an 8′ 6″ hydraulic tail with 4’ Fold Under (Star Plate Center/Traction Bars Outer Over Tread Plate). View our trailer model details in the product sheets below. If you’re ready for a quote fill out the request a quote form. Contact Your Felling Trailers Regional Sales Manager for a Quote "*" indicates required fields © 2026 Felling Trailers, Inc. 1/2026 Δ document.getElementById( "ak_js_1" ).setAttribute( "value", ( new Date() ).getTime() );
Specifications
Dimensions
- Main Deck Height
- 35″ on PL models, 41″ on PH models
Deck
- Upper Deck
- 90º neck with 59″ upper deck height
Loading
- Beavertail
- 8’6″ hydraulic tail with 4′ fold under
Hydraulics
- Hydraulic Tail Trailer – Perimeter Frame Trailer
- Felling’s Hydraulic Tail Trailer –
General
- FT-70-2 PL-HT
- (PDF)
- FT-80-2 PL-HT
- (PDF)
- T-80-2 PH-HT
- (PDF)

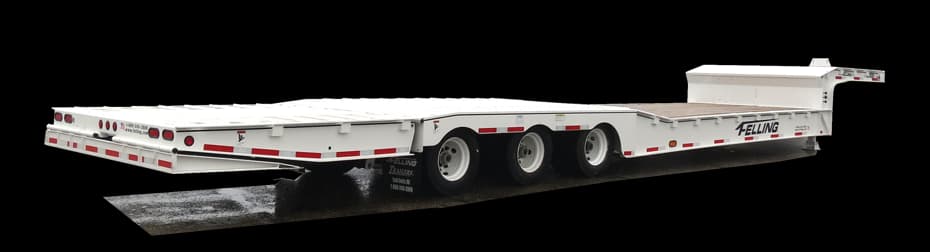

- FT-80-3 PL-HT
- (PDF)
- T-80-3 PH-HT
- (PDF)
- FT-100-3 PL-HT
- (PDF)
- FT-100-3 PH-HT
- (PDF)
- Manufacturer
- Felling Trailers
About step deck trailers
A step deck (or drop deck) has a short upper deck over the fifth wheel and a longer lower deck stepped down behind it. The lower deck sits around 36 to 40 inches high — roughly two feet lower than a flatbed — so it carries freight up to about 10 feet tall without an over-height permit. Common lengths are 48 and 53 feet, with ramps optional for wheeled equipment.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
