Jet Company

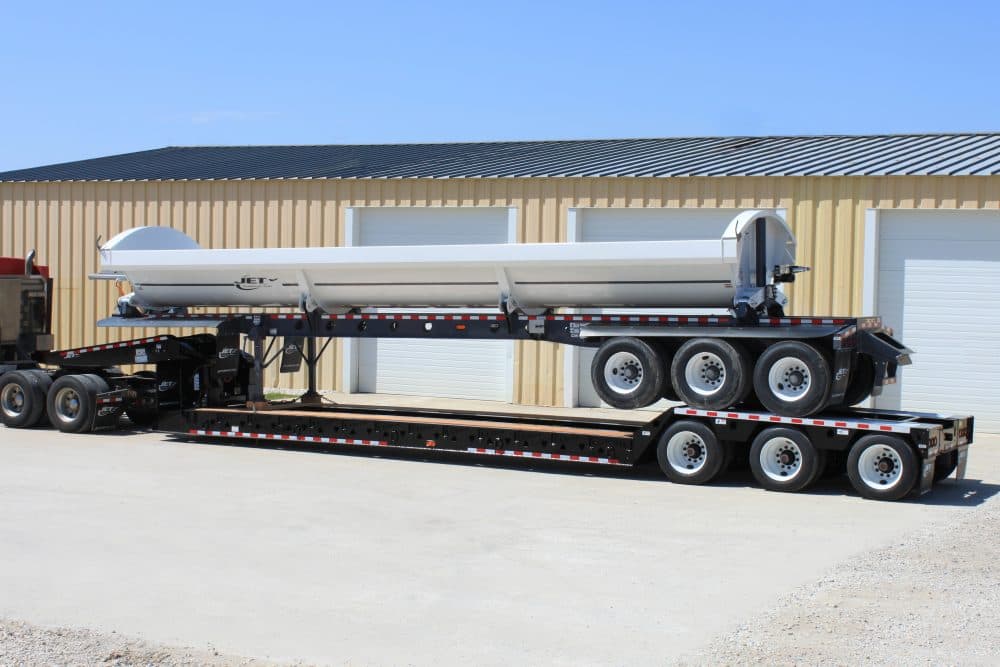

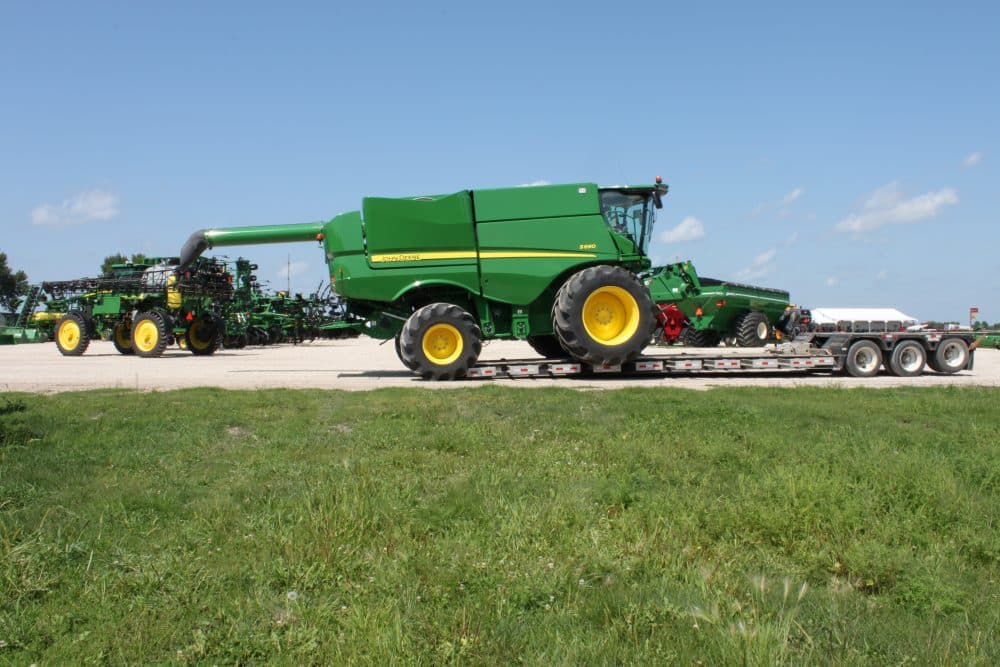

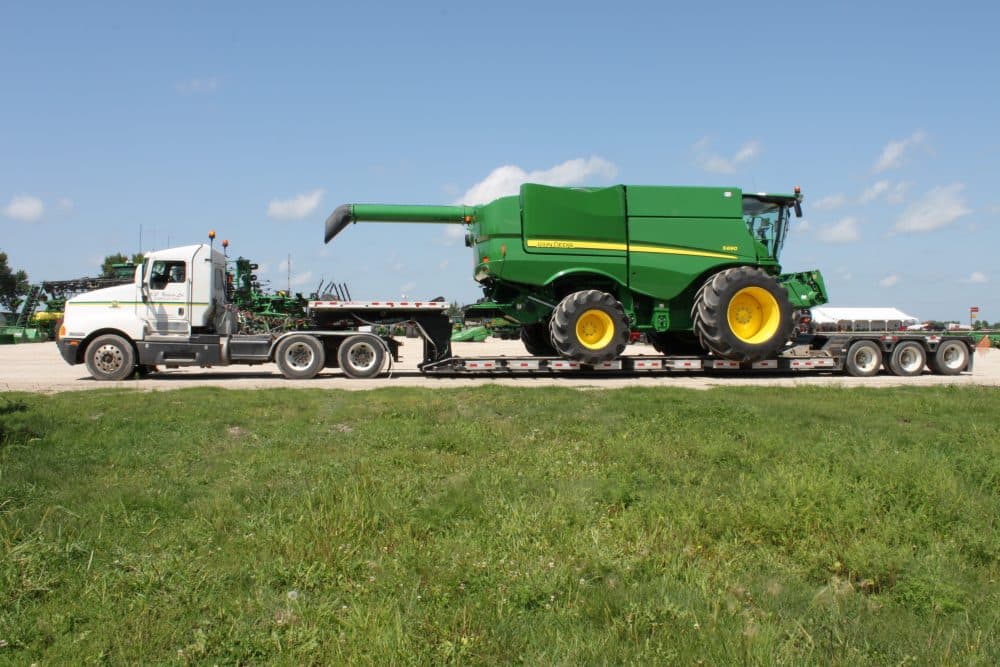

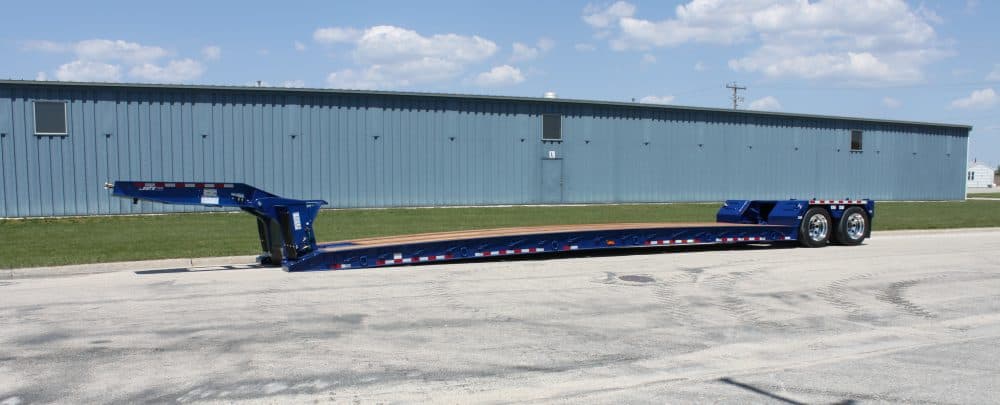

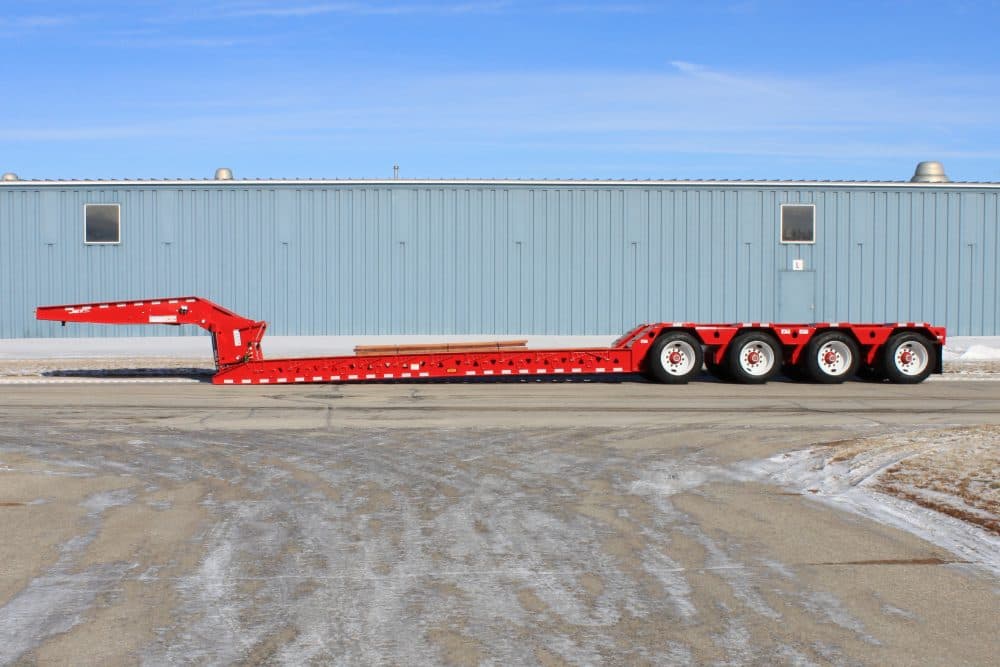

Jet 51T53-3 Detachable Gooseneck Lowboy
- Capacity
- 51 ton
- Axles
- 3
- Deck length
- 26 ft
Overview
From Jet Company
Jet's high quality craftsmanship and attention to detail puts our Detachable Gooseneck Lowboy trailers in a class of their own. Learn More
Specifications
Specifications
- Capacity – 15' Maximum load
- 102,000 lbs
- Trailer Length
- 53'
- Trailer Width
- 102”
- Trailer Main Deck Length
- 26'
- Trailer Main Beam Height (typical)
- 16”
- King Pin Height
- 50”
- Swing Clearence
- 108”
- Ground Clearance
- 8”
- Suspension
- Triple Axle Air Ride
- Axle Configuration
- 54.5” - 54.5” Center Spacing
- Wheels
- (12) 22.5” x 8.25” Steel
- Tires
- (12) 255/70R 22.5 radials
- Brakes
- 16 1/2" x 7", 2S1M ABS
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
