Murray Trailers
Loadmaster

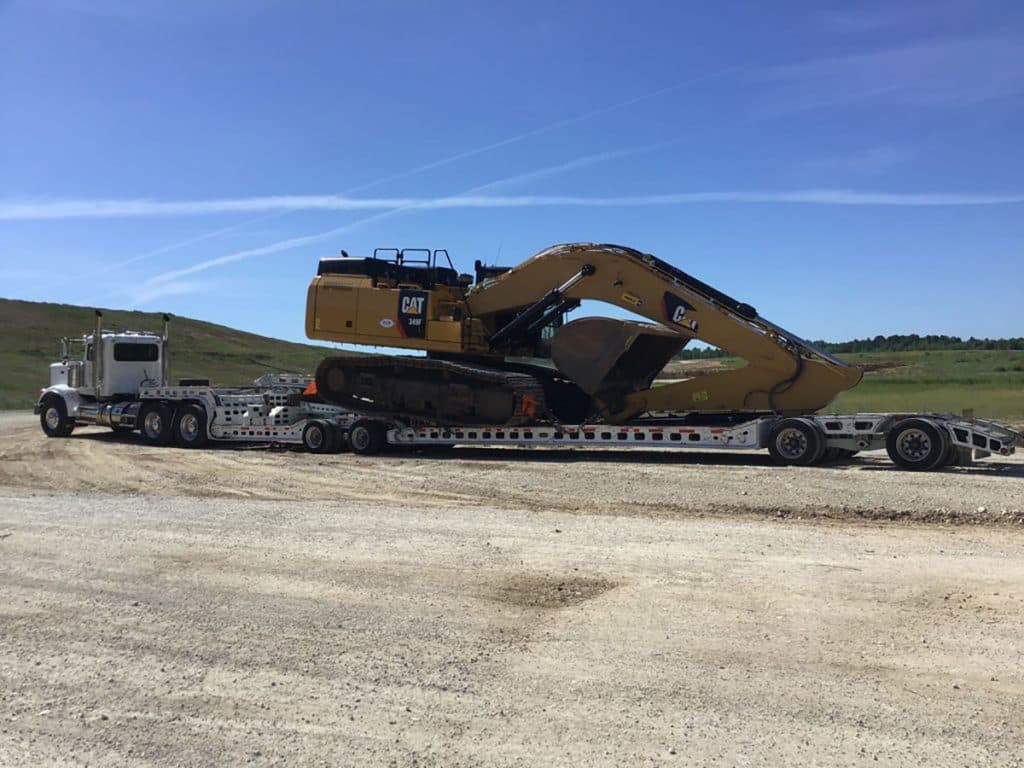

7-Axle Combination 4-Frame, 16-Tire Trailer & 16-Tire Jeep
- Axles
- 7
- Deck length
- 20 ft
- Deck height
- 27 in
Overview
From Murray Trailers
7-Axle Combination 4-Frame, 16-Tire Trailer & 16-Tire Jeep. The most versatile 7-axle on the market
Specifications
Construction
- Construction
- All 130/100 KSI Minimum yield steel, 4-beam design
- Decking
- 3” Apitong outside, 2” Douglas Fir inside
- Paint
- DuPont IMRON ELITE
Running Gear
- Axles
- 8 trunnions, 18,160 lbs. each
- Suspension
- Murray 3-point system
- Expando Power
- Murray 6” air cylinders
- Wheels
- 8-hole, hub piloted aluminum
- Tires
- 215/75R x 17.5 – Hankook or Continental

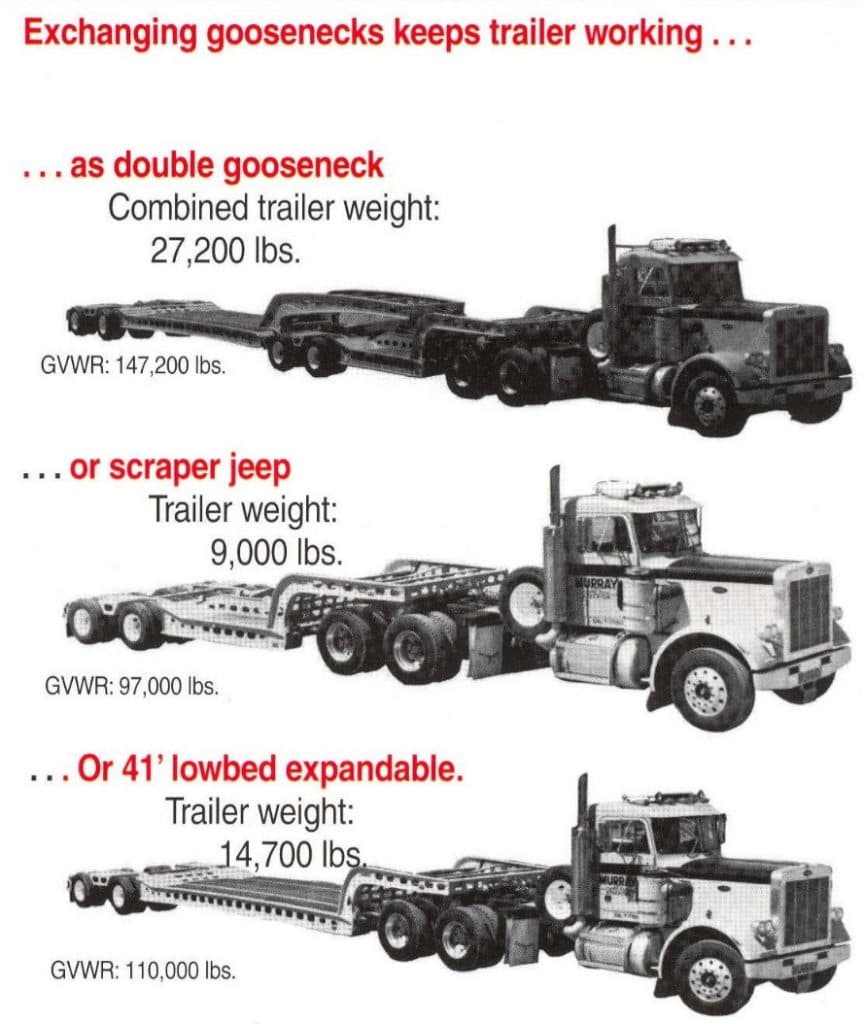

Gooseneck
- Wide Gooseneck
- Mechanical Removable wide neck for jeep or trailer
- Narrow Gooseneck
- Long narrow neck for trailer to jeep connection
Dimensions
- Deck Height
- 27” nominal (dependent on 5th wheel height)
- Over-front loading
- 10”

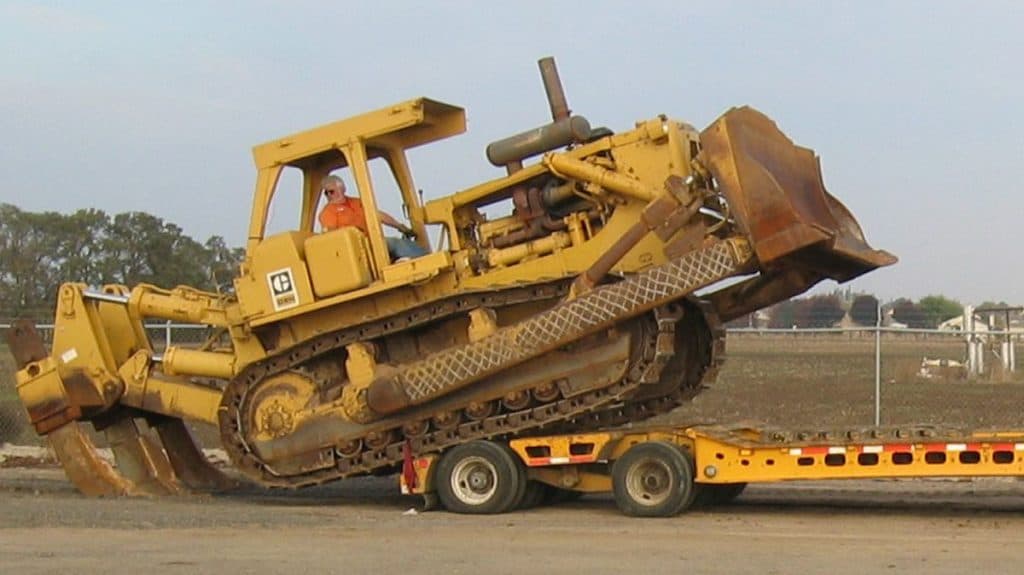

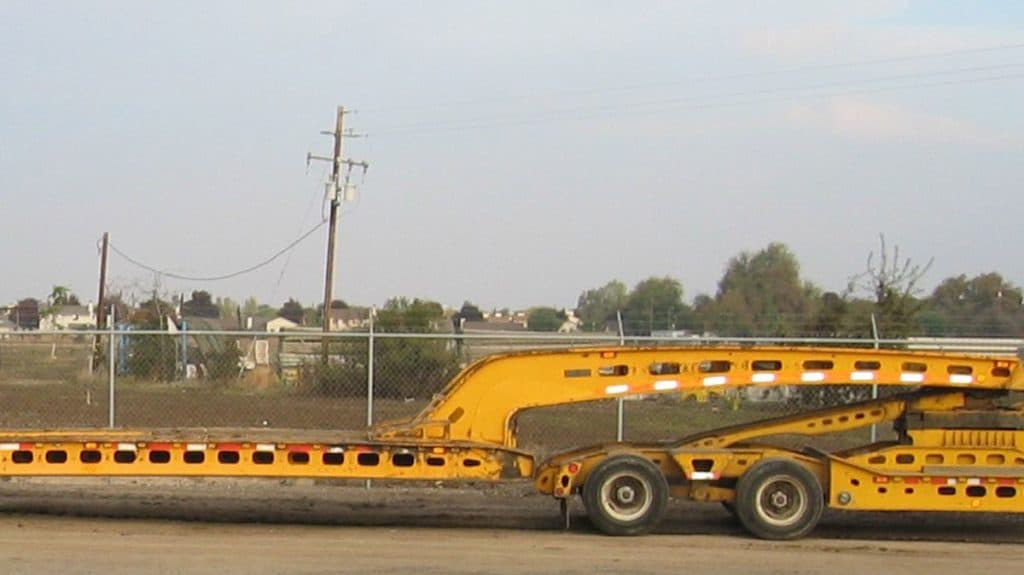

- Over-rear loading
- 34”
- Length
- 61’ with standard 20’ deck
Options
- Deck Lengths to 27’-6”
- Optional
- 16” Longer Gooseneck
- Optional
- Second kingpin
- Optional
- Air operated “RoboLink” & Deck Latch Release (US PAT #8752854, 9272591)
- Optional
- Steel inside islands between tires
- Optional
- Disc brakes with ABS
- Optional
- Full or half wheel covers
- Optional
- Lockable tool boxes in wide neck
- Optional
- Front & rear loading ramps
- Optional
- ”D” Rings
- Optional
- Outriggers
- Optional
- Chain boxes
- Optional

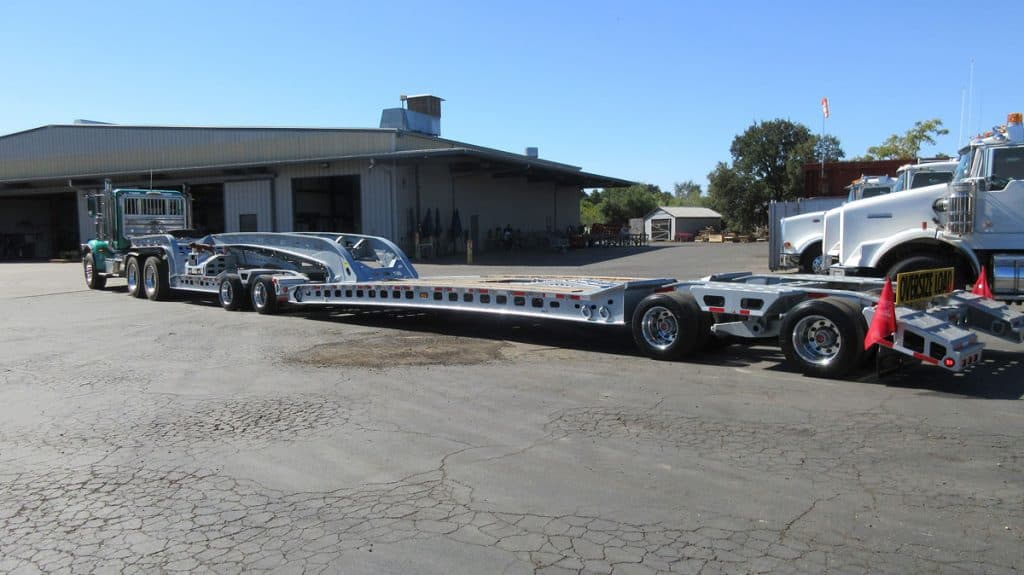

- Magnum Jeep
- Optional
Documents
- Trailer Brochure (PDF)
- https://www.murraytrailer.com/wp-content/uploads/2020/11/Loadmaster-Brochure-200413.pdf
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
