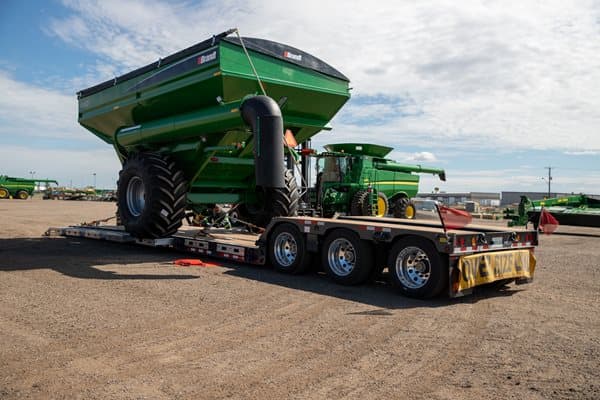

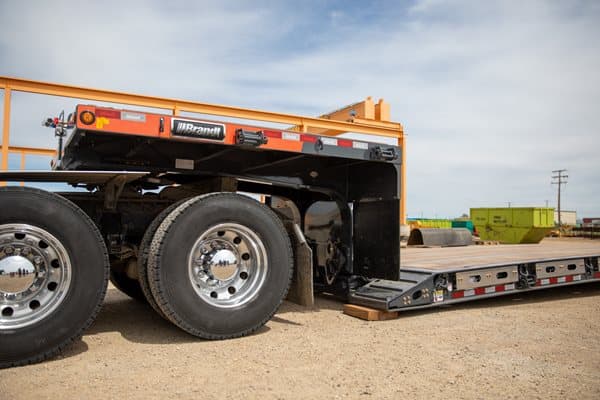

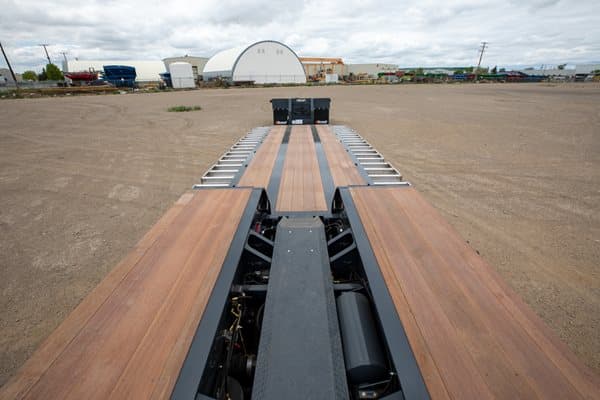

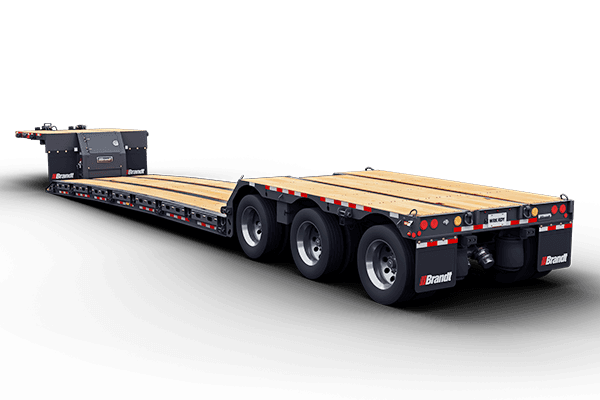

Brandt M400 trailer
Brandt M400 trailer
Brandt M400 trailer
Brandt M400 trailer
Brandt M400 trailer

Brandt

M400 Transporter

Capacity
40 ton
Deck length
28.5 ft

Overview

From Brandt

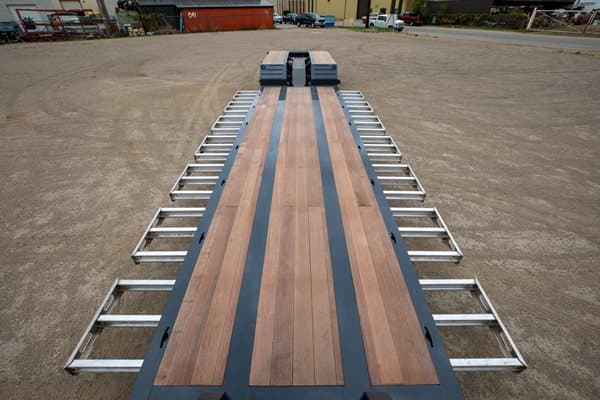

Multitalented Muscle. Leave the challenges of moving your machines in the dust with Brandt’s all-new M400 equipment hauler. This innovative trailer is more versatile with superior payload capacity compared to other models in its class, allowing you to maximize productivity wherever you’re working. The innovative gooseneck allows you to adapt this trailer and your truck to your payload while minimizing tare weight. And, the unmatched ground clearance of 5” at all fifth-wheel and jeep heights helps to eliminate the need for overheight permits, saving you time and money. Features: Brandt’s advanced paint protection looks better, lasts longer, and inhibits corrosion for longer trailer life and increased resale value. Reliable design and long-lasting components reduce total cost of ownership. Mechanically removable gooseneck provides easy loading over the front of the trailer while minimizing tare weight. Trailer capacity of up to 40 distributed tons allows most single-machine loads to be transported without the need to disassemble the load. Integrated slip-resistant aluminum pullouts or swing-out outriggers are available, allowing operators to minimize setup times when hauling oversized equipment. Remotely-mounted air-tank drain valves make maintenance safer and faster. Industry-standard Apitong decking ensures that the operator has safe, stable footing when working on the trailer. Optional lighting packages maximize jobsite safety in low-visibility conditions.

Specifications

Capacity

Tare
22,500 lb
Payload
40 tons

Dimensions

Dimensions (W x L x H)
8'6" x 28' 6"

General

Application
On Highway

About removable gooseneck trailers

A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.

Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
