Fontaine Trailer
Magnitude 55L Plus
- Capacity
- 55 ton
- Axles
- 3
- Deck length
- 26 ft
- Deck height
- 18 in
Overview

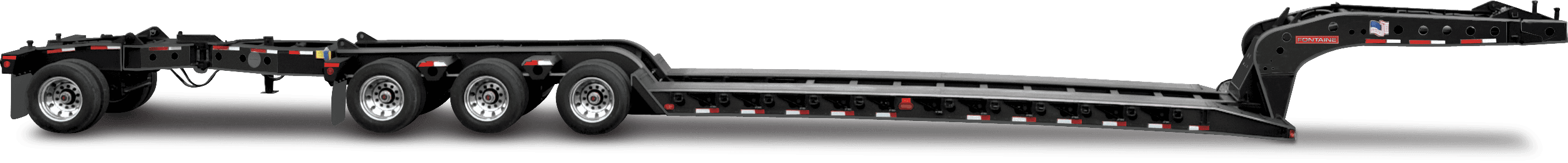

The Fontaine Trailer Magnitude 55L Plus is a 55-ton lowboy trailer with 3 axles, a 26-foot deck and a 18-inch loaded deck height. Trailers of this type typically haul excavators, dozers, cranes and drill rigs.
Specifications
Capacity
- Standard SpecificationsCapacity55 tons in 16 ft. with 125" swing, flipbox deployed & 3+1 EQ155 tons in 10 ft. with 102" swing & 4 axles close coupled(GAWR & GVWR determine legal payloads)TrailerLength
- Width:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)DeckDeck type:FLDDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:18" loaded deck height with 6" clearanceFlooring:2 inch nominal apitong - side rails onlyAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axleAxle spread:54.5" or 60"BogieDeck to bogie connection:FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard
- Capacity55 tons in 16 ft. with 125" swing, flipbox deployed & 3+1 EQ155 tons in 10 ft. with 102" swing & 4 axles close coupled(GAWR & GVWR determine legal payloads)TrailerLength
- Width:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)DeckDeck type:FLDDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:18" loaded deck height with 6" clearanceFlooring:2 inch nominal apitong - side rails onlyAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axleAxle spread:54.5" or 60"BogieDeck to bogie connection:FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard
- Axle Capacity
- 25,000 lb. nominal capacity per axle
General
- TrailerLength
- Width:
- Design
- Hydraulic removable non ground bearing design
- Swing radius
- 102 inches (11 feet 11 inches overall gooseneck length)
- DeckDeck type
- FLDDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:18" loaded deck height with 6" clearanceFlooring:2 inch nominal apitong - side rails only
- Deck type
- FLD
- Flooring
- 2 inch nominal apitong - side rails only
- BogieDeck to bogie connection
- FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:
- Deck to bogie connection
- Fixed
- Rear bogie height
- 41 inches
Gooseneck
- GooseneckDesign
- Hydraulic removable non ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length)
Dimensions
- Deck width
- 8' 6" or 9"
- Loaded deck height/clearance
- 18" loaded deck height with 6" clearance
Axles
- AxlesStandard trailer axles
- 3Axle Capacity:25,000 lb. nominal capacity per axleAxle spread:54.5" or 60"
- Standard trailer axles
- 3
- Axle spread
- 54.5" or 60"
Tires & Wheels
- TiresTire size
- 275/70R 22.5 OEM Standard
- Tire size
- 275/70R 22.5 OEM Standard
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
