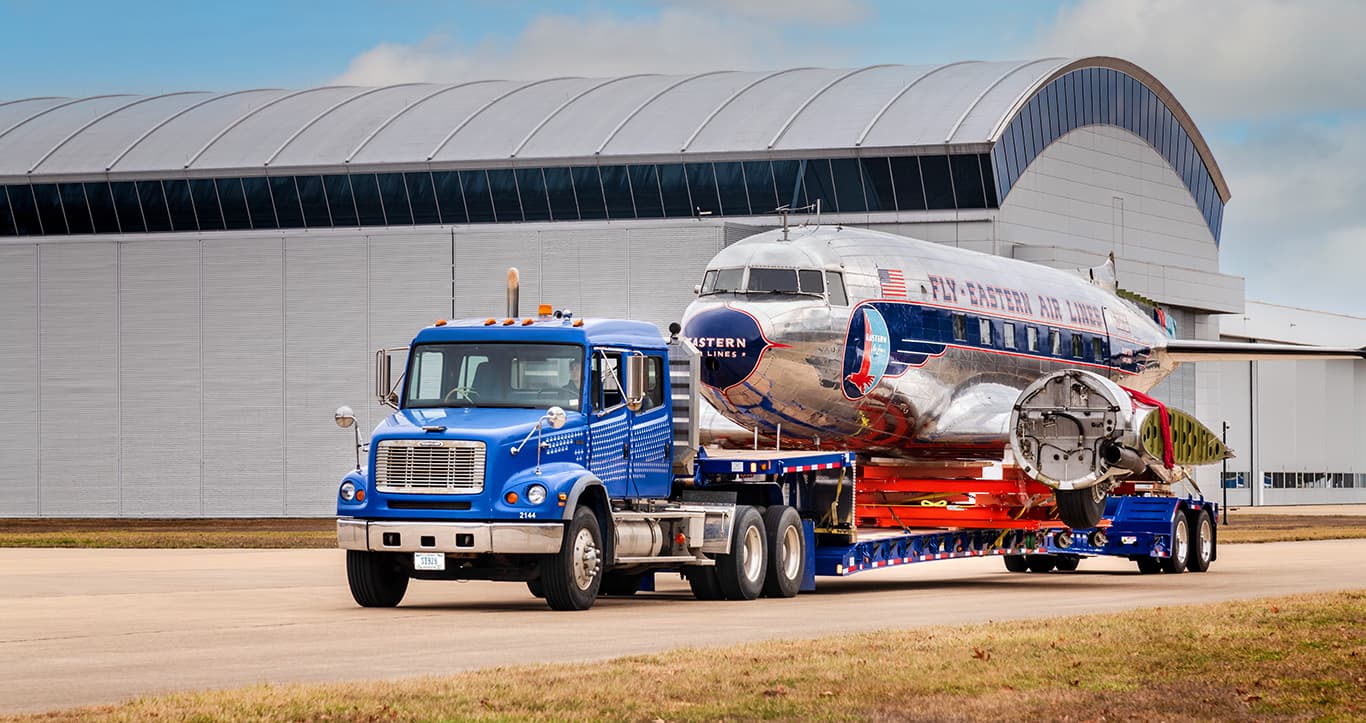

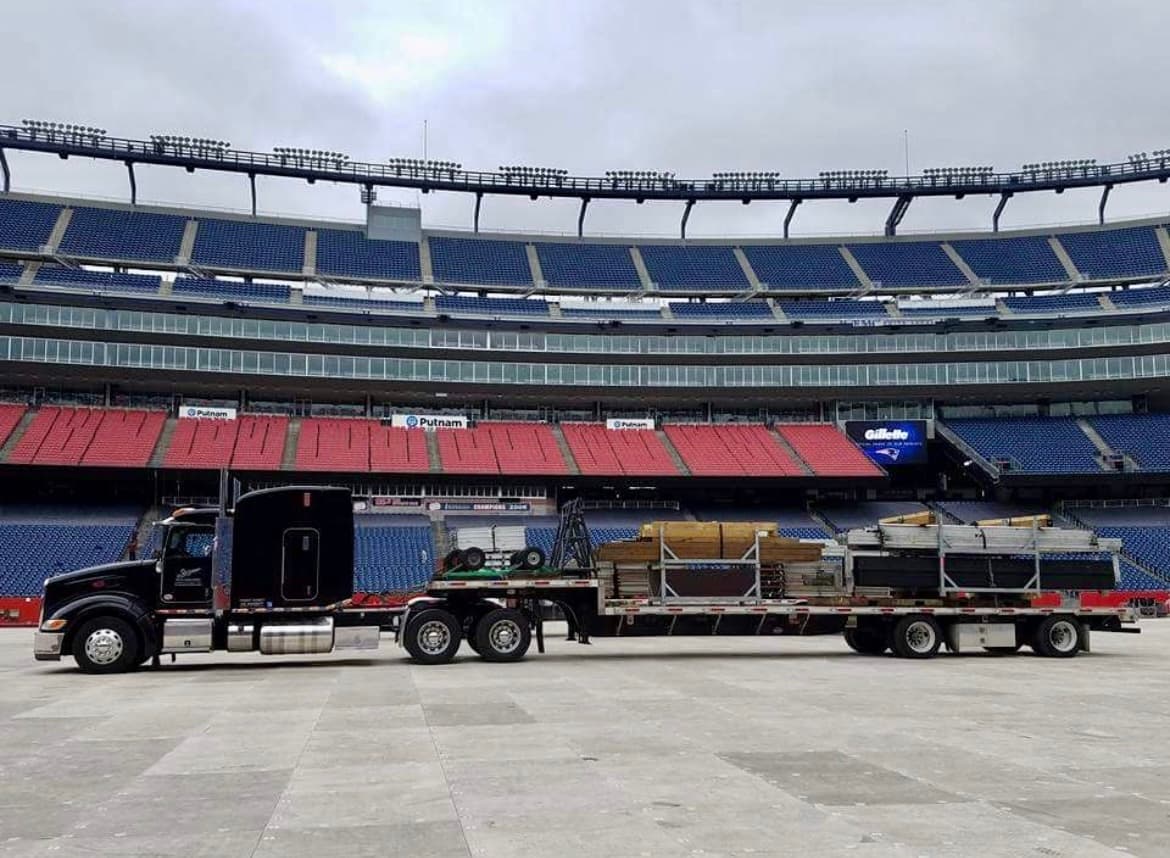

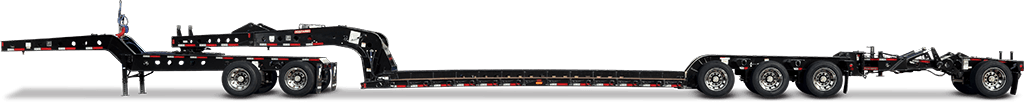

Magnitude 60 MDSR trailer

Fontaine Trailer

Magnitude 60 MDSR

Capacity
60 ton
Axles
3
Deck length
26 ft
Deck height
14.5 in

Overview

The Fontaine Trailer Magnitude 60 MDSR is a 60-ton lowboy trailer with 3 axles, a 26-foot deck and a 14.5-inch loaded deck height. Trailers of this type typically haul excavators, dozers, cranes and drill rigs.

Specifications

Capacity

Standard SpecificationsCapacity60 tons in 12-foot length with 4th axle close coupled or 3+1 axle configuration - GAWR and tire ratings determine legal payloadsTrailerLength
Width:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)DeckDeck type:MDSRDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:14.5 inches at side rails, 23 inches at main beams with 6 inches ground clearanceFlooring:2 inch nominal woodAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"BogieDeck to bogie connection:ModularRear bogie height:40 7/8 inches to top flange - 36 5/8 inches to top of bolstersDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard
Capacity60 tons in 12-foot length with 4th axle close coupled or 3+1 axle configuration - GAWR and tire ratings determine legal payloadsTrailerLength
Width:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)DeckDeck type:MDSRDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:14.5 inches at side rails, 23 inches at main beams with 6 inches ground clearanceFlooring:2 inch nominal woodAxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"BogieDeck to bogie connection:ModularRear bogie height:40 7/8 inches to top flange - 36 5/8 inches to top of bolstersDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard
Axle Capacity
25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
25,000 lb. nominal capacity per axle NOTE
GAWR determined by suspension type, brakes, tires and other components.

General

TrailerLength
Width:
Design
Hydraulic removable non ground bearing design
Swing radius
106 inches (12 feet 8 inches overall gooseneck length)
DeckDeck type
MDSRDeck length:Deck width:8' 6" or 9"Loaded deck height/clearance:14.5 inches at side rails, 23 inches at main beams with 6 inches ground clearanceFlooring:2 inch nominal wood
Deck type
MDSR
Flooring
2 inch nominal wood
BogieDeck to bogie connection
ModularRear bogie height:40 7/8 inches to top flange - 36 5/8 inches to top of bolstersDesign:Covered Rear Bogie:
Deck to bogie connection
Modular
Rear bogie height
40 7/8 inches to top flange - 36 5/8 inches to top of bolsters

Gooseneck

GooseneckDesign
Hydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)

Dimensions

Deck width
8' 6" or 9"
Loaded deck height/clearance
14.5 inches at side rails, 23 inches at main beams with 6 inches ground clearance

Axles

AxlesStandard trailer axles
3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5" or 60"
Standard trailer axles
3
Axle spread
54.5" or 60"

Tires & Wheels

TiresTire size
275/70R 22.5 OEM Standard
Tire size
275/70R 22.5 OEM Standard

About lowboy trailers

A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.

Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
