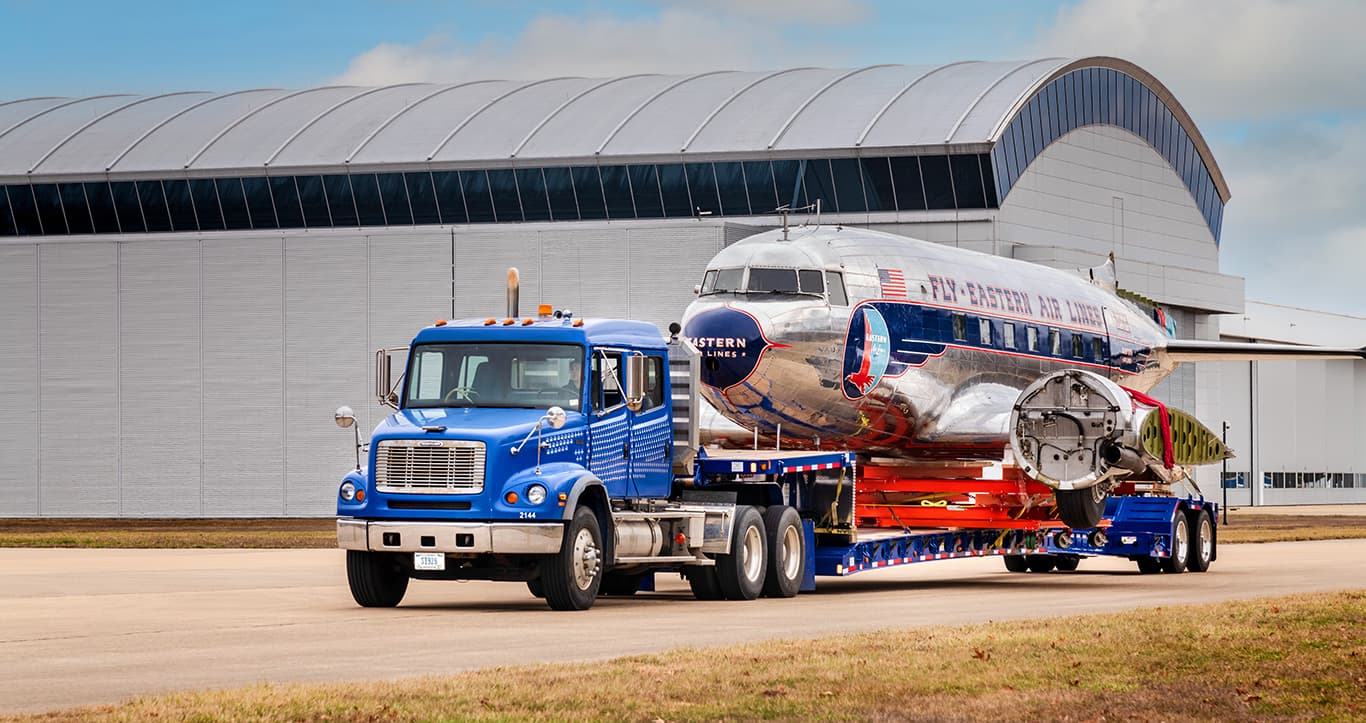

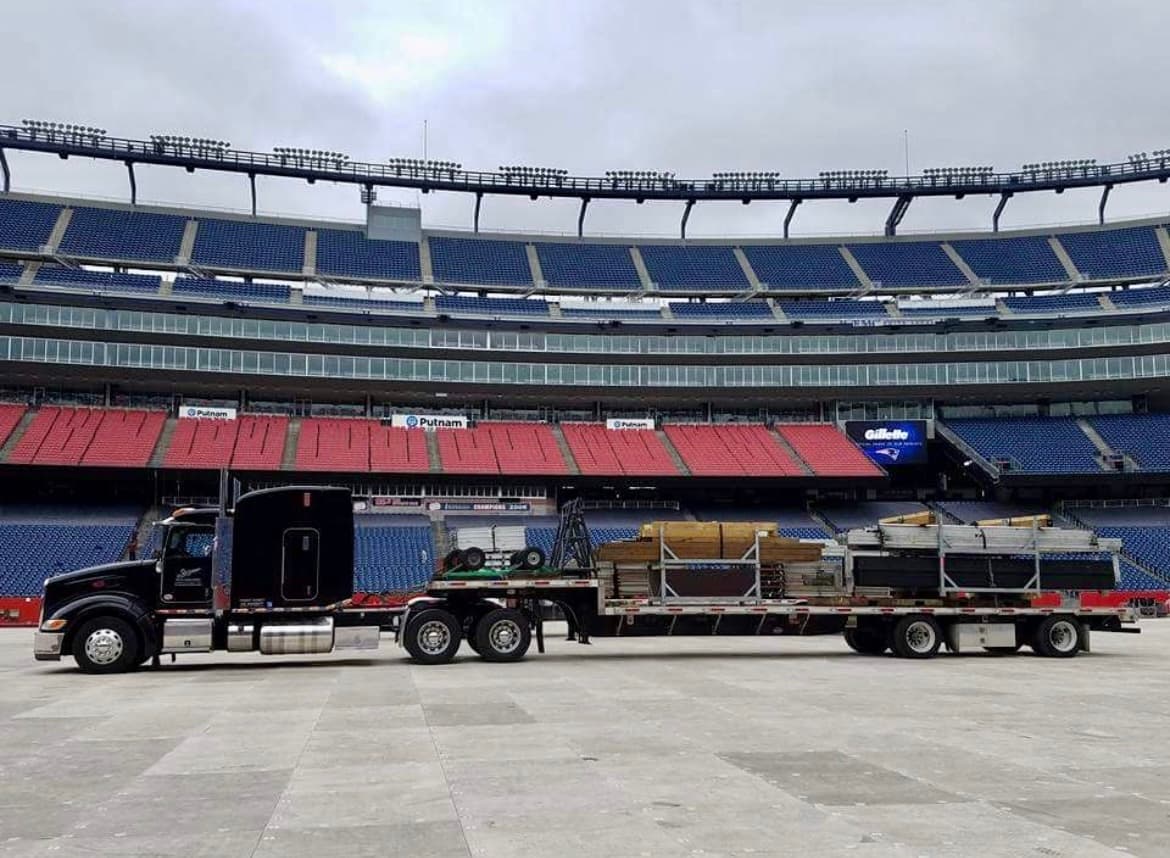

Fontaine Trailer
Magnitude 60HD MBMD
- Capacity
- 60 ton
- Axles
- 5
- Deck length
- 26 ft
- Deck height
- 23 in
Overview
The Fontaine Trailer Magnitude 60HD MBMD is a 60-ton lowboy trailer with 5 axles, a 26-foot deck and a 23-inch loaded deck height. Trailers of this type typically haul excavators, dozers, cranes and drill rigs.
Specifications
Capacity
- Standard SpecificationsCapacity60 tons in 16-feet as a 3+2 axle configuration with flipbox deployed. 60 tons in 12-foot length with 4 axle close coupled. - GAWR and tire ratings determine legal payloadsTrailerLength
- Width:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)DeckDeck type:MBMDDeck length:Deck width:Loaded deck height/clearance:23 inches at main beams with 6 inches ground clearanceFlooring:AxlesStandard trailer axles:5Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. Extra Duty Axle/Brake System Package - Consult Factory | Est. weight: 0 lbs. (±3% lbs.)Axle spread:60"BogieDeck to bogie connection:ModularRear bogie height:43 3/4 inches to top flange - 37 1/2 inches to top of bolstersDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard
- Capacity60 tons in 16-feet as a 3+2 axle configuration with flipbox deployed. 60 tons in 12-foot length with 4 axle close coupled. - GAWR and tire ratings determine legal payloadsTrailerLength
- Width:GooseneckDesign:Hydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)DeckDeck type:MBMDDeck length:Deck width:Loaded deck height/clearance:23 inches at main beams with 6 inches ground clearanceFlooring:AxlesStandard trailer axles:5Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. Extra Duty Axle/Brake System Package - Consult Factory | Est. weight: 0 lbs. (±3% lbs.)Axle spread:60"BogieDeck to bogie connection:ModularRear bogie height:43 3/4 inches to top flange - 37 1/2 inches to top of bolstersDesign:Covered Rear Bogie:TiresTire size:275/70R 22.5 OEM Standard
- Axle Capacity
- 25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. Extra Duty Axle/Brake System Package - Consult Factory | Est. weight: 0 lbs. (±3% lbs.)
- 25,000 lb. nominal capacity per axle NOTE
- GAWR determined by suspension type, brakes, tires and other components. Extra Duty Axle/Brake System Package - Consult Factory | Est. weight: 0 lbs. (±3% lbs.)
General
- TrailerLength
- Width:
- Design
- Hydraulic removable non ground bearing design
- Swing radius
- 106 inches (12 feet 8 inches overall gooseneck length)
- DeckDeck type
- MBMDDeck length:Deck width:Loaded deck height/clearance:23 inches at main beams with 6 inches ground clearanceFlooring:
- Deck type
- MBMD
- BogieDeck to bogie connection
- ModularRear bogie height:43 3/4 inches to top flange - 37 1/2 inches to top of bolstersDesign:Covered Rear Bogie:
- Deck to bogie connection
- Modular
- Rear bogie height
- 43 3/4 inches to top flange - 37 1/2 inches to top of bolsters
Gooseneck
- GooseneckDesign
- Hydraulic removable non ground bearing designSwing radius:106 inches (12 feet 8 inches overall gooseneck length)
Dimensions
- Loaded deck height/clearance
- 23 inches at main beams with 6 inches ground clearance
Axles
- AxlesStandard trailer axles
- 5Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components. Extra Duty Axle/Brake System Package - Consult Factory | Est. weight: 0 lbs. (±3% lbs.)Axle spread:60"
- Standard trailer axles
- 5
- Axle spread
- 60"
Tires & Wheels
- TiresTire size
- 275/70R 22.5 OEM Standard
- Tire size
- 275/70R 22.5 OEM Standard
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
