Rogers Brothers
MH25 25-Ton Machinery Hauler
- Capacity
- 25 ton
- Axles
- 2
- Deck length
- 22 ft
Overview
From Rogers Brothers

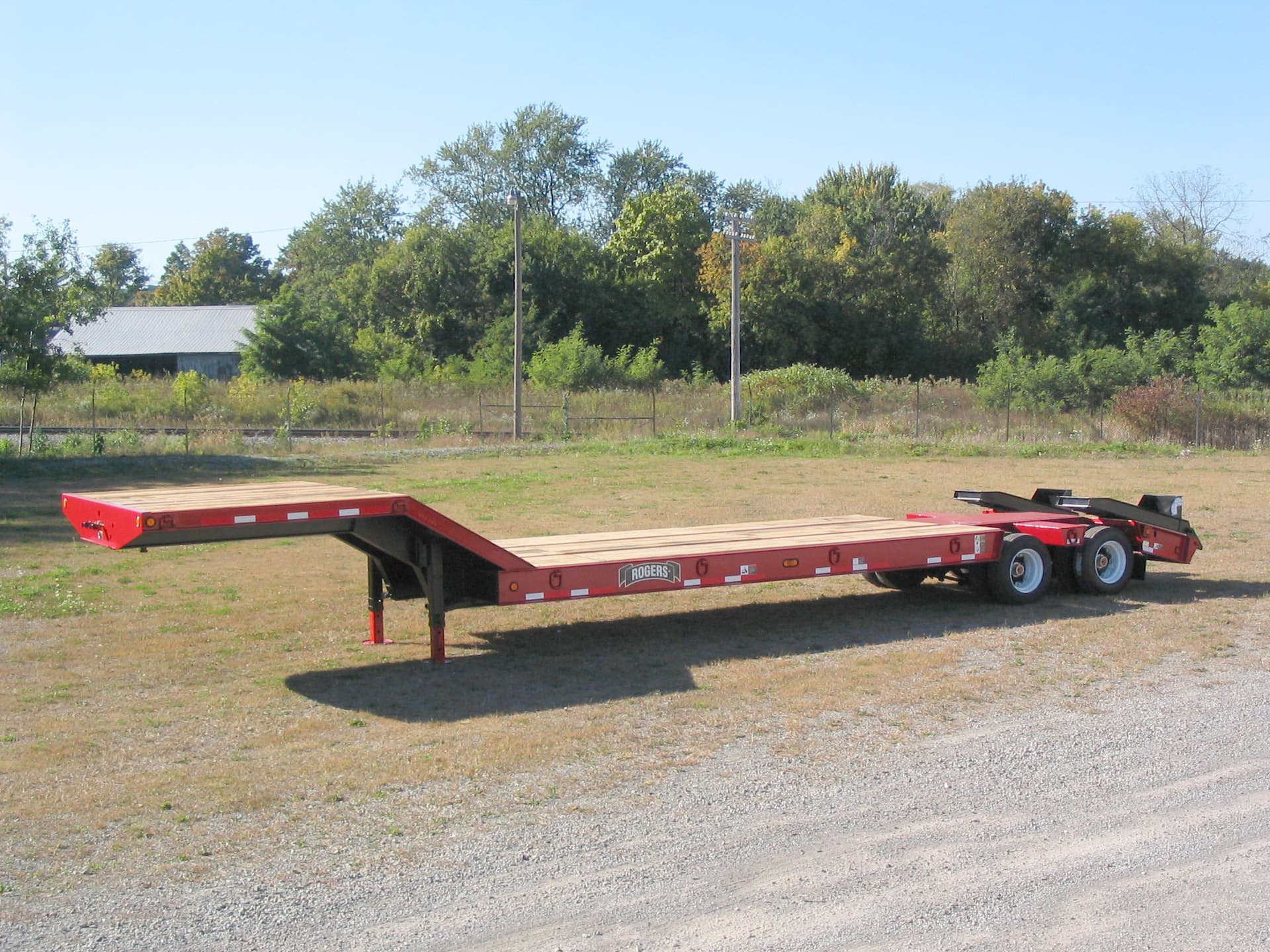

The MH25 is a 25-ton capacity easy-to-load "carry all" lowboy. Built on a four-spring suspension with 215/70R low-profile tires, it has a low deck height AND ample ground clearance. The full width gooseneck can handle machinery or cargo. Standard features: Fixed, full width oak-covered gooseneck; Pin type landing legs; Oak-covered 30º slope from deck to gooseneck; Full 1 3/4" air-dried oak decking; Total (14) bent lashing D's; Trunnions between wheels; Oak-covered 14º sloped beavertail; Center rear frame 1/4" smooth cover plate; Dual spring-assisted "E–Z Flip" oak-covered rear loading ramps, laterally adjustable; LED lights: US DOT-approved rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Flag holders; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).
Specifications
Capacity
- Capacity
- 25.0-ton
- Concentrated Load
- 50,000-pounds
- Concentrated Load Length
- 15'-0"
Dimensions
- Deck Length
- 22'-0"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 2 axles
- Axle Type
- 22,500 lbs. capacity with oil-bathed bearings
- Suspension
- 44,800 lb. capacity tandem axle multi-leaf 4-spring
- Tires
- 215/75R17.5(H) low-profile tubeless radial
- Wheels
- 17.5 x 6.75 8-hole steel disc
- Brakes
- 12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Machinery Hauler
- Trailer Use
- Rear Loading: Fixed Gooseneck
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
