Felling Trailers

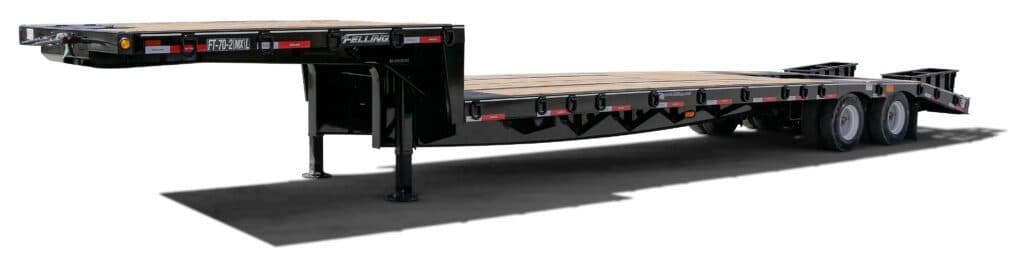

MX Series – Semi Trailer
delivers brute strength and a robust design to haul heavy loads day after day.
- Capacity
- 25 ton
- Deck height
- 35 in
Overview
The MX Semi Trailer is ideal for heavy-load transportation. Whether moving construction equipment, raw materials, or other substantial cargo, the MX Semi Trailer Series offers powerful construction and the customization options needed to get the job done. Discover a selection of customization options for the MX Series. Fill out the quote form below to start creating your perfect MX Series design today! View our trailer model details in the product sheets below. If you’re ready for a quote fill out the request a quote form. All submitted information is considered confidential. "*" indicates required fields © 2026 Felling Trailers, Inc. 1/2026 Δ document.getElementById( "ak_js_1" ).setAttribute( "value", ( new Date() ).getTime() );
Specifications
Dimensions
- Height
- MX-L 35″Loaded – MX-H 41″ Loaded
Weight
- Weight
- 12,000 lbs. – 19,500 lbs. lbs
Capacity
- Towing Capacity
- 50,000 lbs. – 100,000 lbs. lbs
Deck
- Upper Deck
- 10′ 90° gooseneck
General
- FT-80-3 MX-L
- (PDF)
- FT-100-4 MX-L
- (PDF)
- Manufacturer
- Felling Trailers
Loading

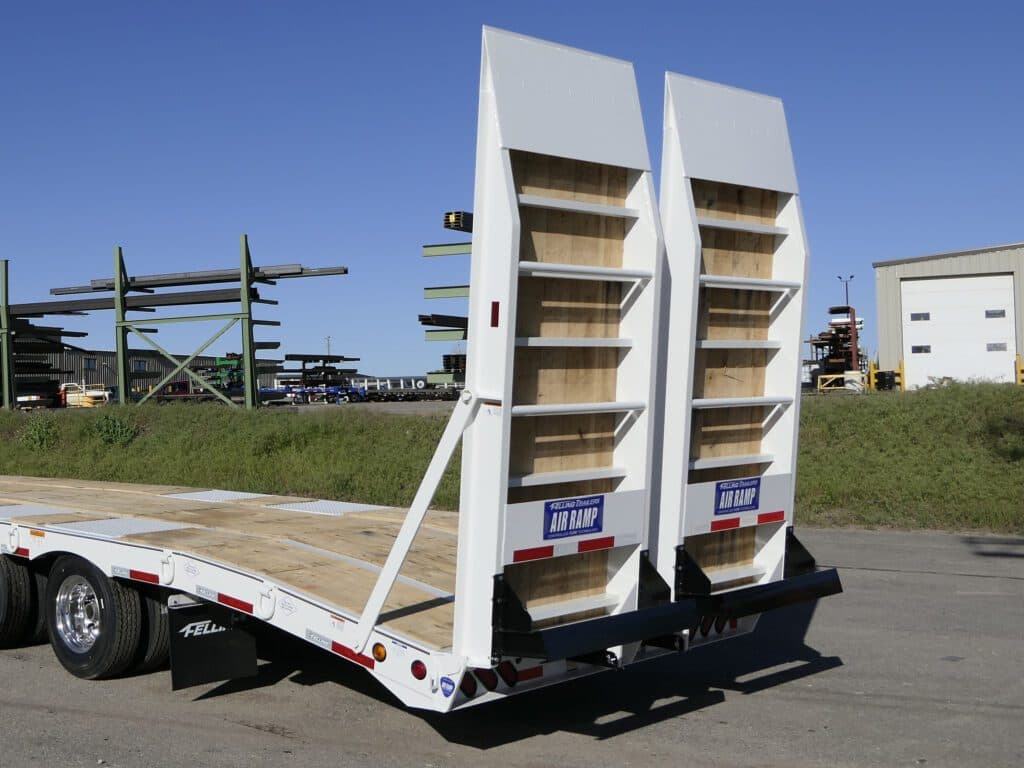

- Air Ramps Options
- CNS-102
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
