Witzco Challenger

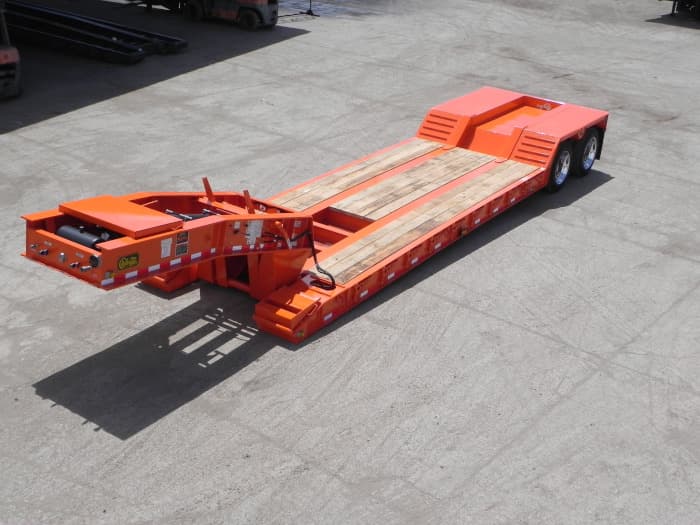

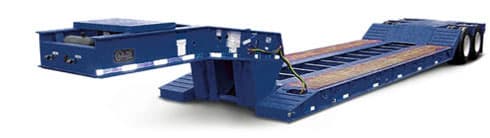

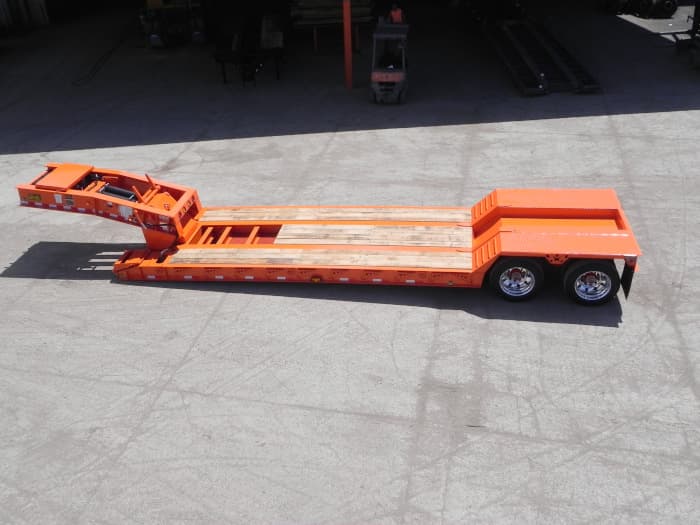

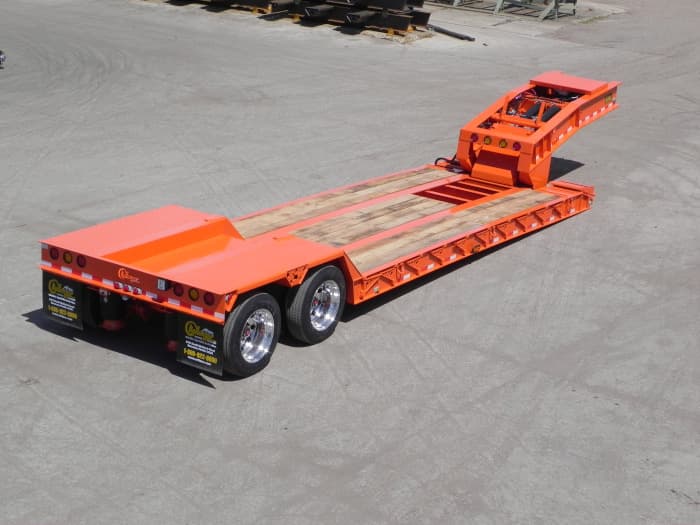

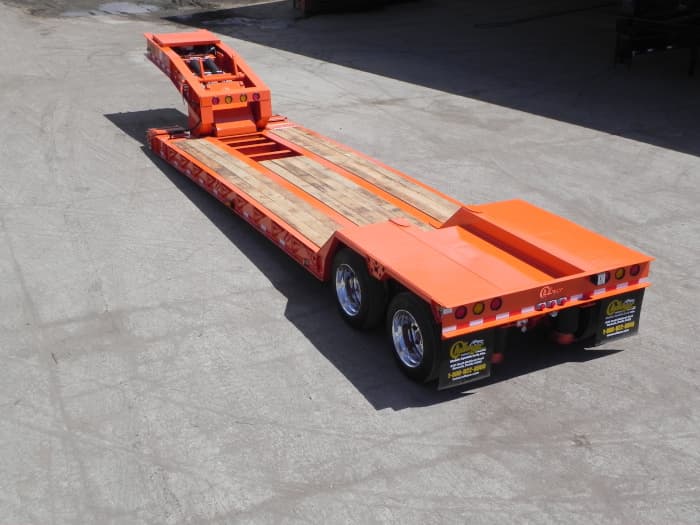

NGB-40 • 40 Ton Non-Ground Bearing, Removable Gooseneck
- Capacity
- 40 ton
- Axles
- 2
- Deck length
- 22 ft
Overview
From Witzco Challenger
Automated gooseneck detachment and ride height adjustment make the NGB front-loading trailer the perfect choice for efficiency on the job, ease of operation and increased safety. The NGB Series features a visible 4-position ride height adjustment which allows quick adjustments to the trailer’s ride height in 2” increments, for everyday versatility demanded in the field… such as uneven terrain, high crowns and off-road operations. The NGB Series utilizes an air-operated gooseneck safety lock feature. The locking pin actuator enhances operator safety, while assuring a reliable, secure trailer connection. A single-pivot articulator is adjusted by twin 6″ hydraulic cylinders, powered by a self-contained hydraulic system or an optional wetline. All trailer functions are controlled from the single operator station at the side of the gooseneck, allowing safe and easy access to all attach/detach and ride height control functions. NGB 40 Standard Features – 80,000# load capacity, 2 axles with 43’-11″ overall length. Non ground bearing removable gooseneck with self-contained hydraulic system. 22’ load deck, tapered front beam, 2” lumber decking & (24) 12” outriggers (12 each side). 3 “D” rings per side of deck & 1 on each front stump at tire area, for a total of 8 “D” rings. Hutchen’s type H9700 suspension. 25,000# capacity axles with 16.5” x 7” air brakes, unimount wheels with 255/70 R22.5 Radial tires. Modular wire harness, 12v, DOT approved, rubber-mounted lighting. *Note: ABS brakes required on all 35 and 40-ton domestic sales.
Specifications
Capacity
- Load Capacity
- 80,000 lbs
Running Gear
- Axles
- 2
- Axle Capacity
- 25,000 lbs
- Suspension
- Hutchen's type H9700 suspension
- Brakes
- 16.5" x 7" air brakes
- Tires
- 255/70 R22.5
Dimensions
- Overall Length
- 43' 11"
- Deck Length
- 22'
Construction
- Decking
- 2" lumber decking
- Outriggers
- 24 × 12"
Hydraulics
- Hydraulic System
- Self-contained
Gooseneck
- Ride Height Adjustment
- 4-position, 2" increments
- Safety Lock
- Air-operated locking pin
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
