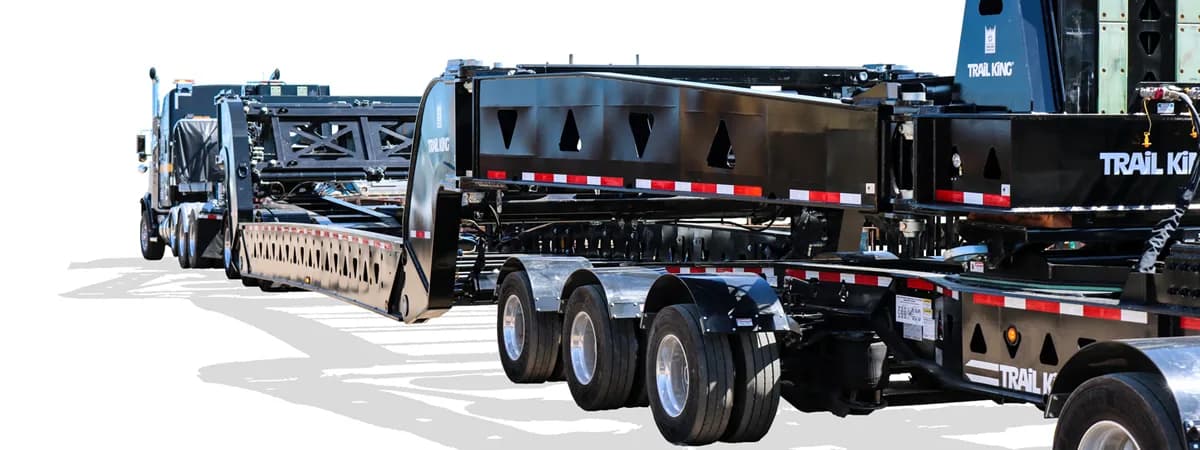

Perimeter Expanding Frame
Find Your Specialized Solution
Overview
Designed for multiple load configurations, this trailer expands from 12’ to 20’ wide. The Perimeter Frame Trailer is engineered to be lightweight, while still increasing payload. The low deck height offers the ability to haul even the tallest equipment. Endless combinations of decks are available to meet your hauling requirements. Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King Perimeter Expanding Frame Protect Your Investment with Our Complete Line of Services Trail King Paint Options Standard duty bolts in expandable cross members Trail King – Perimeter Expanding Frame in augmented reality powered by JigSpace
Specifications
Frame
- Perimeter Expanding Frame – Standard Equipment
- TK160
Capacity
- Capacity
- 160,000 uniform, 150K in 16 ft.
Dimensions
- Width
- Expandable deck width 12’ to 20’ overall
General
- Inside Expansion
- Inside expansion from 10’ 8” to 18’ 8”
- Standard duty bolts in expandable cross members
- 4
- Heavy duty bolts in expandable cross members
- 4
Hydraulics
- Plumbed to supply hydraulics from rear to front hatbox
- X
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
