Murray Trailers
Professional

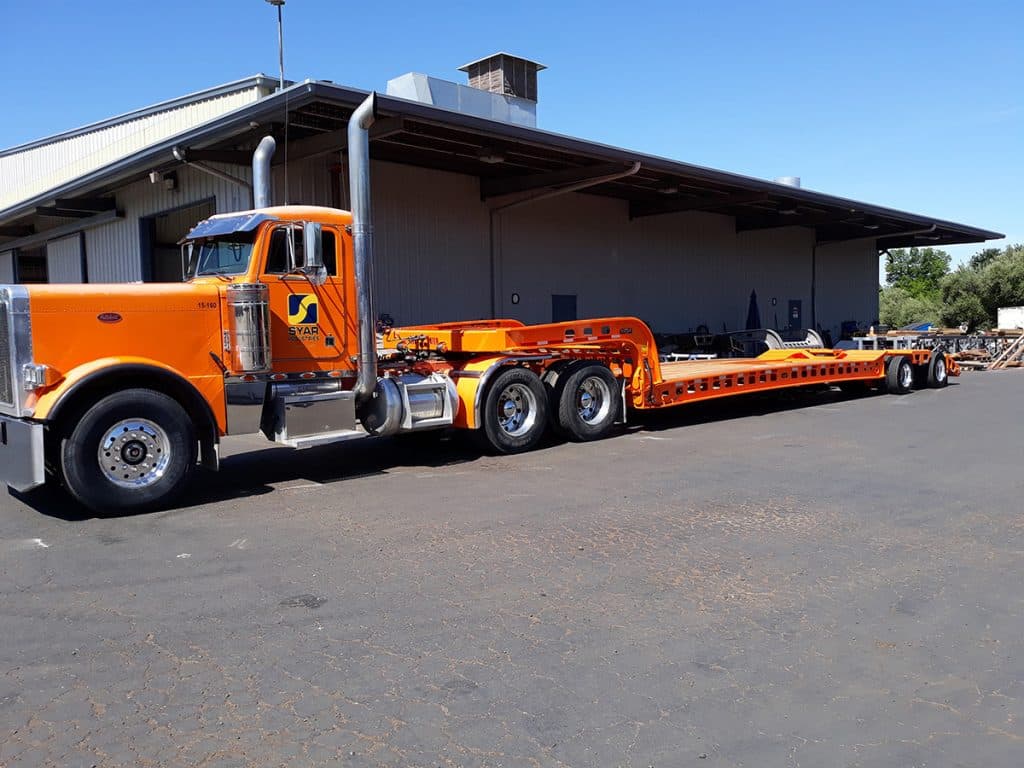

16-Tire Heavy Equipment Trailer
- Capacity
- 46 ton
- Deck length
- 21.5 ft
- Deck height
- 27 in
- GVWR
- 106,000 lb
Overview
From Murray Trailers
16-Tire Heavy Equipment Trailer. The most versatile 5-axle on the market
Specifications
Construction
- Construction
- 130 KSI/100 KSI yield steel
- Decking
- 3” Apitong outside, 2” Douglas Fir inside
- Paint
- DuPont IMRON ELITE
Capacity
- Permitted NET Load
- CA, NV, AZ, NM, UT, TX – 46 Tons
- GVWR
- 106,000 lbs.
Running Gear
- Axles
- 4 trunnion, GAWR 18,160 lbs. each
- Suspension
- Murray 3-point system
- Expando Power
- Murray 6” air cylinders
- Brakes
- S-Cam ABS Brakes (4S2M), Automatic Slack Adjusters
- Wheels
- 8-hole, hub piloted aluminum
- Tires
- 215/75R x 17.5 – Hankook or Continental
Weight
- Base trailer weight
- Approximately 13,300 lbs. (21’6” Deck)
Electrical
- Lighting
- LED
Gooseneck
- Goosenecks

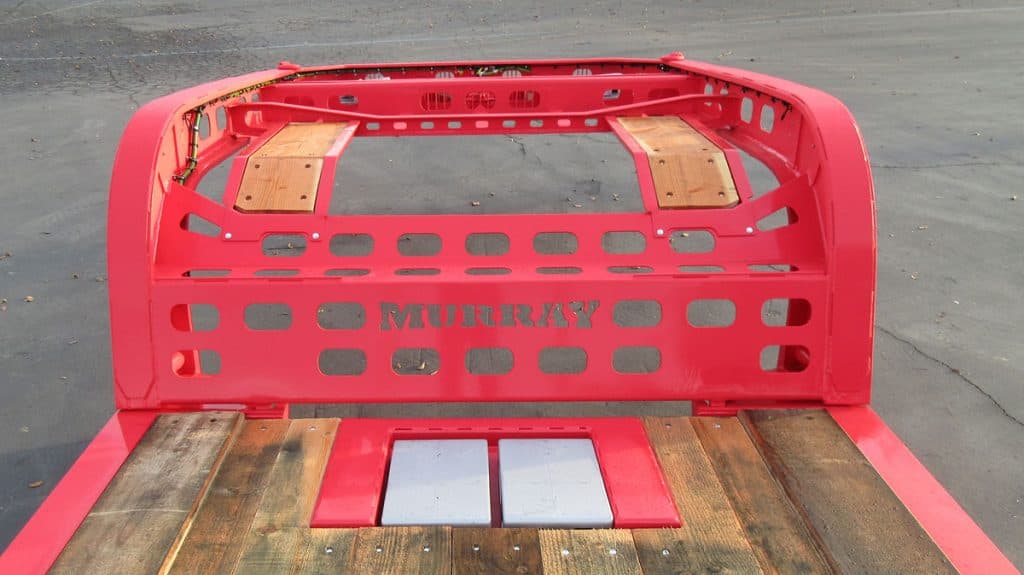

- Mechanical Removable wide neck
Dimensions
- Deck Height
- 27” nominal center of deck (dependent on 5th wheel height)
- Over-front loading
- 10”
- Over-rear loading
- 34”
- Overall Length
- 42’-3” with standard 21’-6” deck, gooseneck, & tail
Options
- Deck Lengths to 22’-10”
- Optional
- 16” Longer Gooseneck
- Optional
- Second kingpin
- Optional
- Air operated “RoboLink” & Deck Latch release (US PAT #8752854, 9272591)
- Optional
- Steel inside islands between tires
- Optional
- Disc brakes with ABS
- Optional
- Full or half wheel covers
- Optional

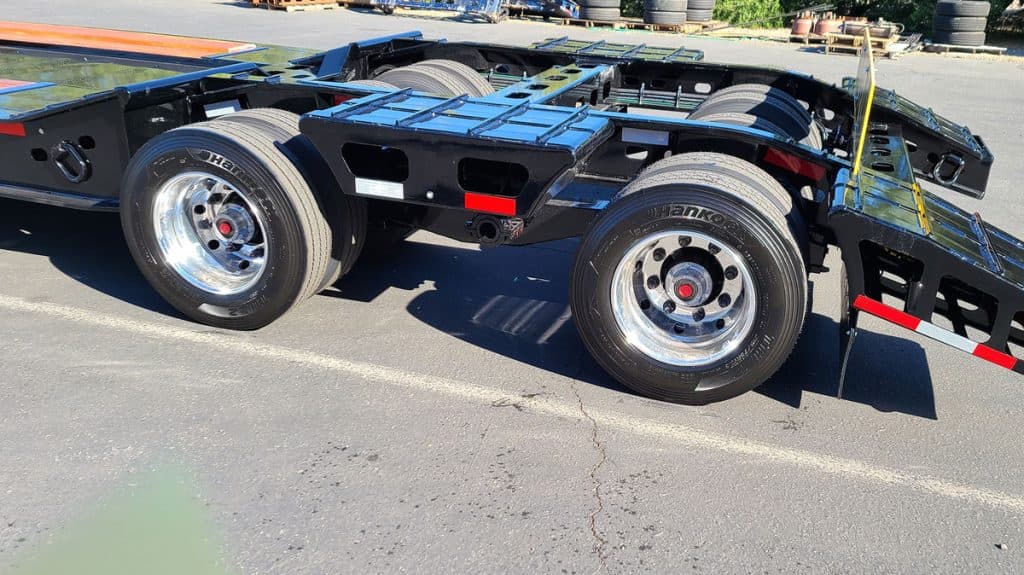

- 20” Longer Tail
- Optional
- Lockable tool boxes in wide neck
- Optional
- Front & rear loading ramps
- Optional
- ”D” Rings
- Optional
- Outriggers – Sliding or Removable Chain boxes
- Optional
- Excavator deck well or pan
- Optional
- Loadmaster Style Rear End
- Optional
- Spare tire with lockable mount
- Optional
Documents
- Trailer Brochure (PDF)
- https://www.murraytrailer.com/wp-content/uploads/2020/11/Professional-Brochure-200413.pdf
- 21' 6" Trailer Spec Sheet (PDF)
- https://www.murraytrailer.com/wp-content/uploads/2020/11/PRO-21-6-LongTail.pdf
- 22' 10" Trailer Spec Sheet (PDF)
- https://www.murraytrailer.com/wp-content/uploads/2020/11/PRO-22-10-LongTail.pdf
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
