Rogers Brothers
PT35L Air Ramps 35-Ton Fixed Gooseneck
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 25 ft
- Deck height
- 36 in
Overview
From Rogers Brothers

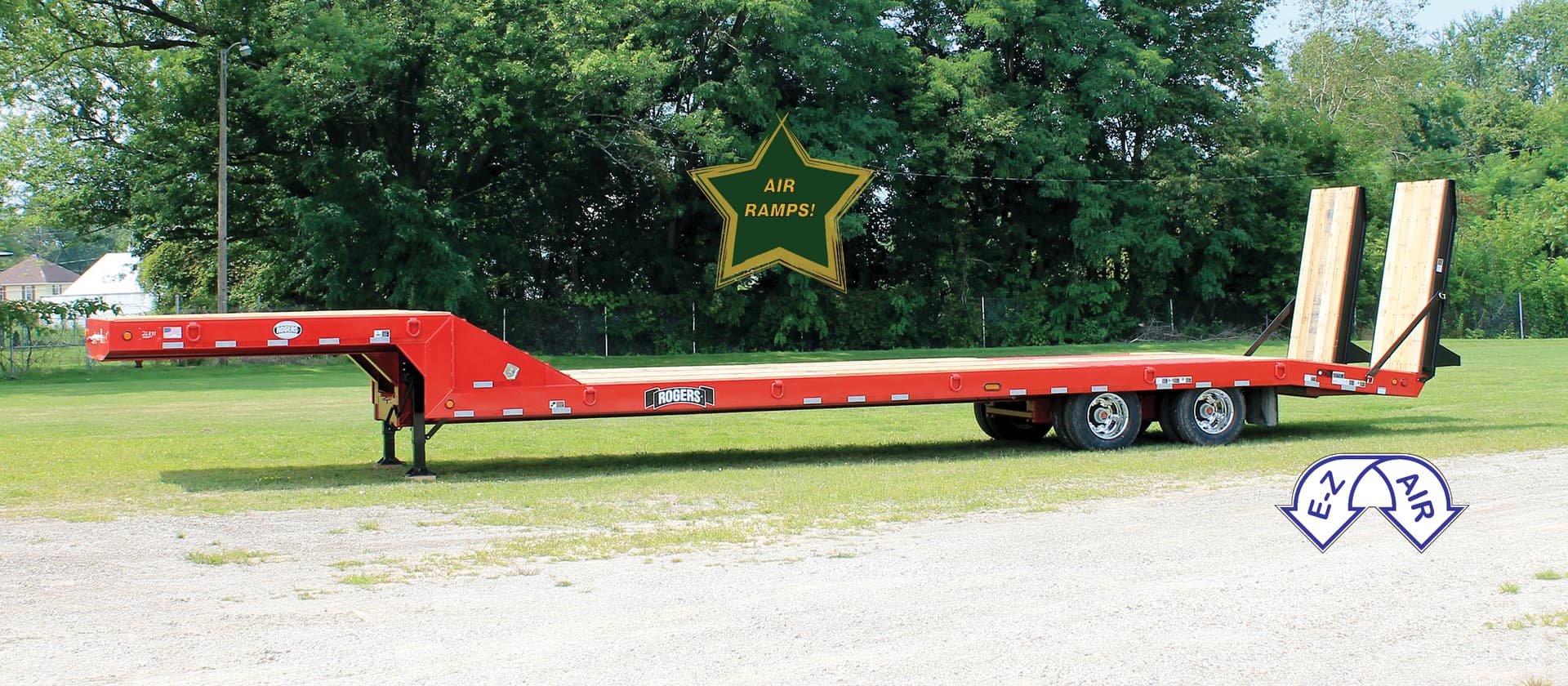

The brand new ROGERS PT35L is a trailer designed to haul multiple machines with the paving contractor in mind. It combines the conveniences of a rear loading style with "E-Z Air" air operated ramps, a spacious level deck and sloped access to the full-width gooseneck for additional loading surface. Standard features: Flat platform deck; Full 1-3/4" air-dried oak decking; 10'-0" x 8'-6" oak-covered platform top of gooseneck; Gooseneck swing radius: 91"; Gooseneck 5th wheel height: 51" light; Heavy-duty two-speed landing gear set; 29° slope from deck to gooseneck · 4'-0" long steel covered w/grousers; Full-width lockable toolbox in gooseneck slope area; Toolbox underside of gooseneck with lockable steel lid; Wood-covered toolbox in gooseneck over king pin; Air suspension with dump valve for loading/unloading; Oak-covered beavertail · 65" long with 7° slope; Oak-covered "E-Z Air" loading ramps, air operated, 72" long x 38" wide; Steel disc wheels; Total (14) standard lashing D's · (7) per side; LED Lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black polyurethane enamel finish coat: (hover to see samples).
Specifications
Capacity
- Capacity
- 35.0-ton
- Concentrated Load
- 70,000-pounds
- Concentrated Load Length
- 25'-0"
Dimensions
- Deck Length
- 25'-0"
- Loaded Deck Height
- 36"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 2 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 235/75R17.5(H) low-profile tubeless radial
- Wheels
- 17.5 x 6.75 8-hole steel disc
- Brakes
- 12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Fixed Gooseneck
- Trailer Use
- Rear Loading: Fixed Gooseneck
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
