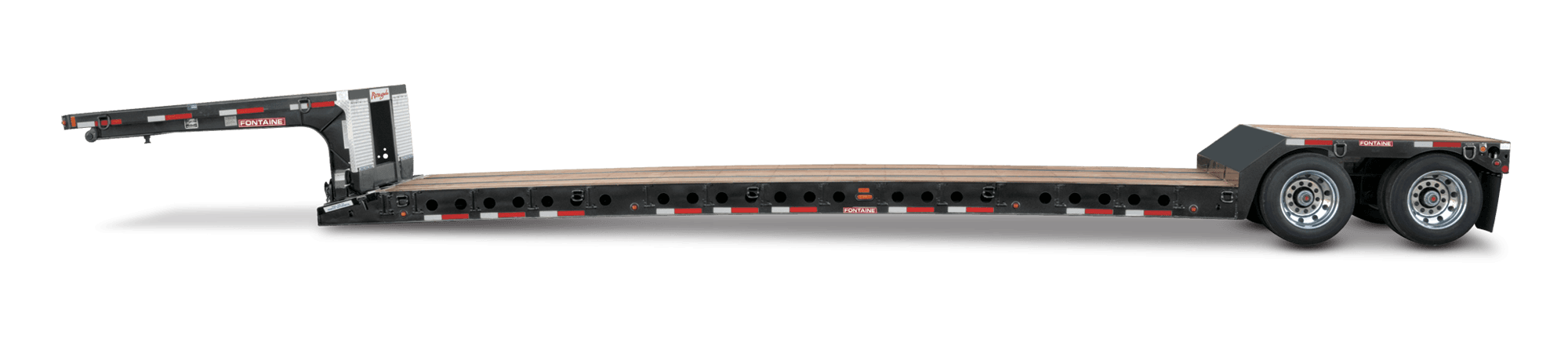

RENEGADE 18 trailer

Fontaine Trailer

Renegade 18

Capacity
40 ton
Axles
2
Deck length
29 ft
Deck height
18 in

Overview

The Fontaine Trailer Renegade 18 is a 40-ton double drop trailer with 2 axles, a 29-foot deck and a 18-inch loaded deck height. Trailers of this type typically haul tall, heavy items such as presses, transformers and compact cranes.

Specifications

Capacity

Standard SpecificationsCapacity40 tons (80,000 lbs) evenly distributed - GAWR and tire ratings determine legal loadsTrailerLength
47' 11"Width:102 inches wideGooseneckDesign:Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loadedSwing radius:81 inchesDeckDeck type:Standard FLDDeck length:29 feet clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:18 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R/22.5
Capacity40 tons (80,000 lbs) evenly distributed - GAWR and tire ratings determine legal loadsTrailerLength
47' 11"Width:102 inches wideGooseneckDesign:Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loadedSwing radius:81 inchesDeckDeck type:Standard FLDDeck length:29 feet clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:18 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R/22.5
Axle Capacity
25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
25,000 lb. nominal capacity per axle NOTE
GAWR determined by suspension type, brakes, tires and other components.

General

TrailerLength
47' 11"Width:102 inches wide
Length
47' 11"
Width
102 inches wide
Design
Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loaded
Swing radius
81 inches
DeckDeck type
Standard FLDDeck length:29 feet clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:18 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal wood (full width)
Deck type
Standard FLD
Flooring
1 3/8 inch nominal wood (full width)
BogieDeck to bogie connection
FixedRear bogie height:40 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floor
Deck to bogie connection
Fixed
Rear bogie height
40 inches
Covered Rear Bogie
Rear bogie platform with 1 1/8 inch wood floor

Gooseneck

GooseneckDesign
Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loadedSwing radius:81 inches

Dimensions

Deck length
29 feet clear deck length
Deck width
8 feet 6 inches
Loaded deck height/clearance
18 inches with 6 inches ground clearance

Axles

AxlesStandard trailer axles
2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"
Standard trailer axles
2
Axle spread
54.5"

Tires & Wheels

TiresTire size
255/70R/22.5
Tire size
255/70R/22.5

About double drop trailers

A double drop has two steps: one behind the neck and one ahead of the rear axles, forming a low well in the middle. The well sits close to the ground and typically runs 25 to 29 feet, which is where tall, heavy items ride — presses, transformers, compact cranes. Detachable and fixed-neck versions exist, and extendable wells handle over-length pieces.

Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
