30 Ton

Fontaine Trailer

Renegade N12

Capacity
30 ton
Axles
2
Deck length
32 ft
Deck height
12 in

Overview

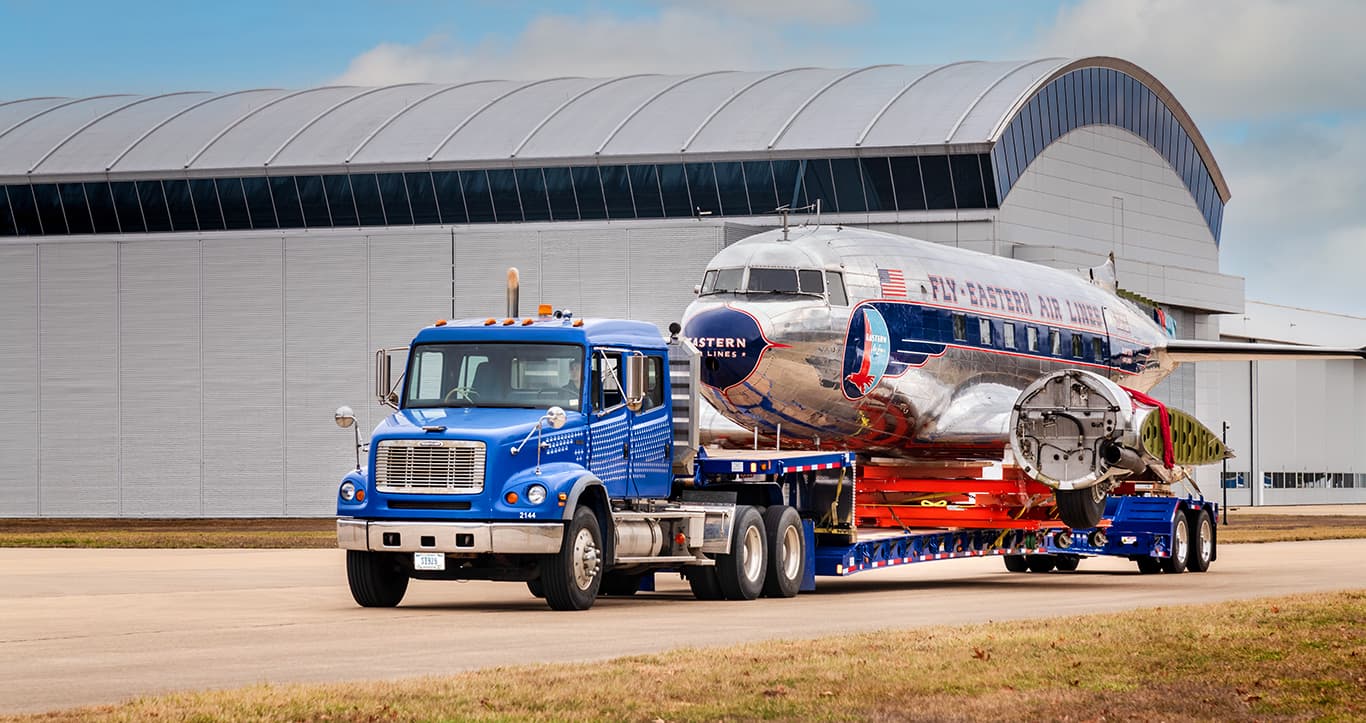

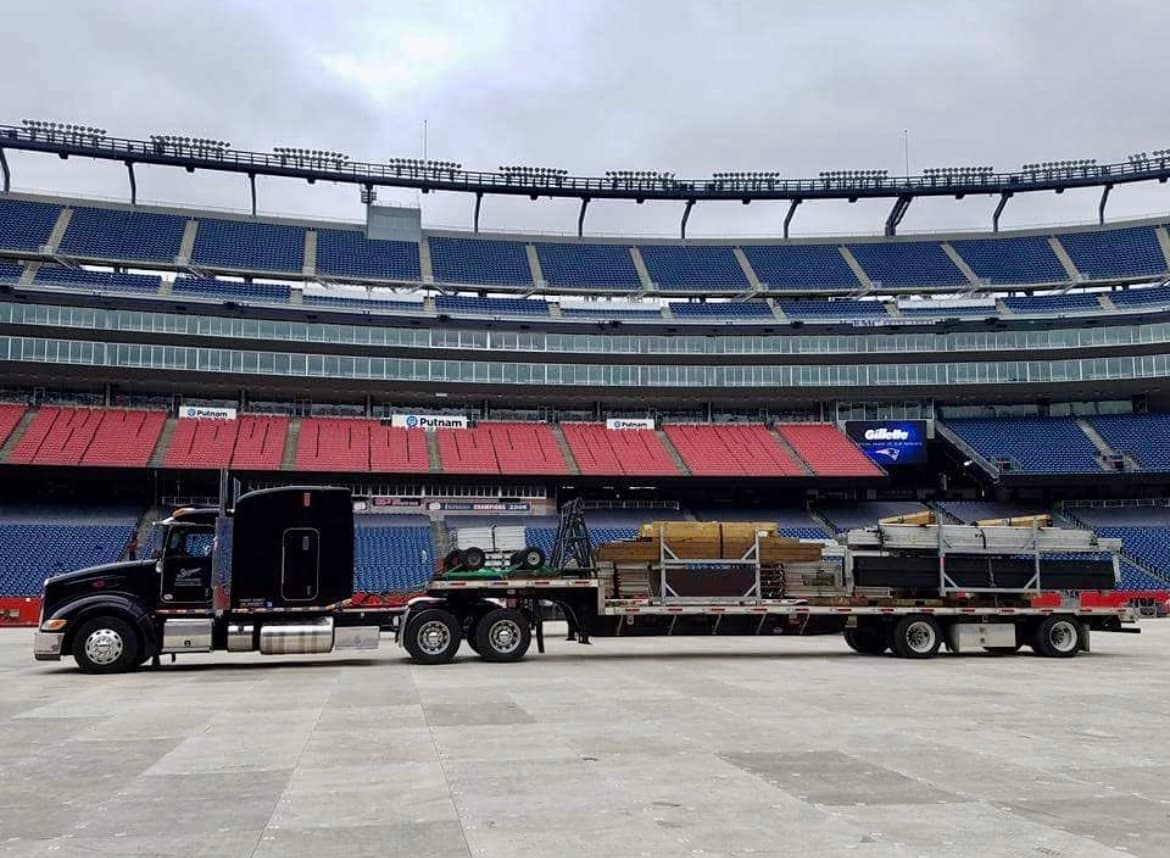

The Fontaine Trailer Renegade N12 is a 30-ton double drop trailer with 2 axles, a 32-foot deck and a 12-inch loaded deck height. Trailers of this type typically haul tall, heavy items such as presses, transformers and compact cranes.

Specifications

Capacity

Standard SpecificationsCapacity30 tons in 16-foot length - GAWR and tire ratings determine legal loadsTrailerLength
53 feet 0 inchesWidth:102 inches wideGooseneckDesign:Narrow hydraulic removable non-ground bearing - swing radius of 84 inches (11 ft 2 in overall gooseneck length) - set up for wet line operationSwing radius:84 inchesDeckDeck type:Standard FLDDeck length:32 feet 11 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:12 inches with 4 inch ground clearance (Fully Loaded)Flooring:1 3/8 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"BogieDeck to bogie connection:FixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard
Capacity30 tons in 16-foot length - GAWR and tire ratings determine legal loadsTrailerLength
53 feet 0 inchesWidth:102 inches wideGooseneckDesign:Narrow hydraulic removable non-ground bearing - swing radius of 84 inches (11 ft 2 in overall gooseneck length) - set up for wet line operationSwing radius:84 inchesDeckDeck type:Standard FLDDeck length:32 feet 11 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:12 inches with 4 inch ground clearance (Fully Loaded)Flooring:1 3/8 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"BogieDeck to bogie connection:FixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard
Axle Capacity
25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
25,000 lb. nominal capacity per axle NOTE
GAWR determined by suspension type, brakes, tires and other components.

General

TrailerLength
53 feet 0 inchesWidth:102 inches wide
Length
53 feet 0 inches
Width
102 inches wide
Design
Narrow hydraulic removable non-ground bearing - swing radius of 84 inches (11 ft 2 in overall gooseneck length) - set up for wet line operation
Swing radius
84 inches
DeckDeck type
Standard FLDDeck length:32 feet 11 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:12 inches with 4 inch ground clearance (Fully Loaded)Flooring:1 3/8 inch nominal Apitong wood (full width)
Deck type
Standard FLD
Flooring
1 3/8 inch nominal Apitong wood (full width)
BogieDeck to bogie connection
FixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floor
Deck to bogie connection
Fixed
Rear bogie height
41.5 inches
Covered Rear Bogie
Rear bogie platform with 1 1/8 inch wood floor

Gooseneck

GooseneckDesign
Narrow hydraulic removable non-ground bearing - swing radius of 84 inches (11 ft 2 in overall gooseneck length) - set up for wet line operationSwing radius:84 inches

Dimensions

Deck length
32 feet 11 inches clear deck length
Deck width
8 feet 6 inches
Loaded deck height/clearance
12 inches with 4 inch ground clearance (Fully Loaded)

Axles

AxlesStandard trailer axles
2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"
Standard trailer axles
2
Axle spread
50"

Tires & Wheels

TiresTire size
255/70R 22.5 H ply OEM Standard
Tire size
255/70R 22.5 H ply OEM Standard

About double drop trailers

A double drop has two steps: one behind the neck and one ahead of the rear axles, forming a low well in the middle. The well sits close to the ground and typically runs 25 to 29 feet, which is where tall, heavy items ride — presses, transformers, compact cranes. Detachable and fixed-neck versions exist, and extendable wells handle over-length pieces.

Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
