Fontaine Trailer
Renegade N14
- Capacity
- 30 ton
- Axles
- 2
- Deck length
- 29 ft
- Deck height
- 15 in
Overview

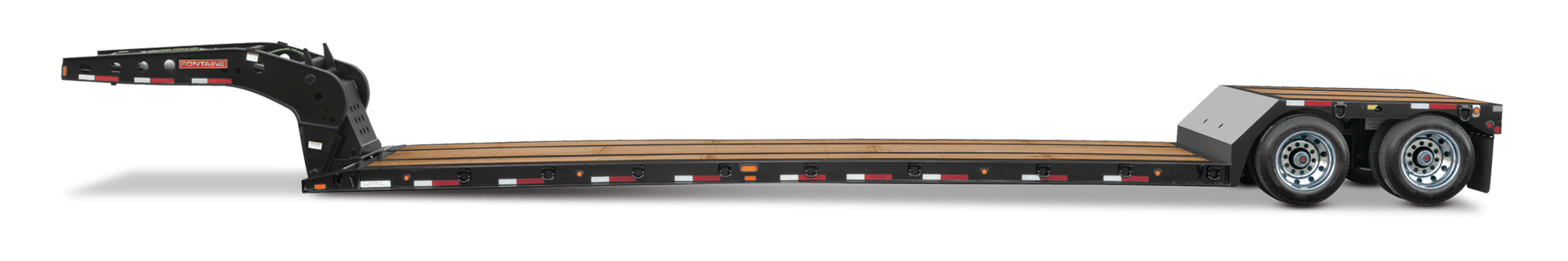

The Fontaine Trailer Renegade N14 is a 30-ton double drop trailer with 2 axles, a 29-foot deck and a 15-inch loaded deck height. Trailers of this type typically haul tall, heavy items such as presses, transformers and compact cranes.
Specifications
Capacity
- Standard SpecificationsCapacity30 tons in 16-foot length (2 or 3 axles) - GAWR and tire ratings determine legal loads - 35 tons evenly distributed 16-foot rigid 2-point load centered in deckTrailerLength
- 50 feet 0 inchesWidth:102 inches wideGooseneckDesign:Narrow hydraulic removable non-ground bearing - swing radius of 102 inches (11 ft 11 in overall gooseneck length) - set up for wet line operationSwing radius:102 inchesDeckDeck type:Standard FLDDeck length:29 feet 2 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:15 inches with 6 inches ground clearance at front and rear of deck - 14 inches with 5 inches ground clearance at center when fully loadedFlooring:2 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"BogieDeck to bogie connection:FixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard
- Capacity30 tons in 16-foot length (2 or 3 axles) - GAWR and tire ratings determine legal loads - 35 tons evenly distributed 16-foot rigid 2-point load centered in deckTrailerLength
- 50 feet 0 inchesWidth:102 inches wideGooseneckDesign:Narrow hydraulic removable non-ground bearing - swing radius of 102 inches (11 ft 11 in overall gooseneck length) - set up for wet line operationSwing radius:102 inchesDeckDeck type:Standard FLDDeck length:29 feet 2 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:15 inches with 6 inches ground clearance at front and rear of deck - 14 inches with 5 inches ground clearance at center when fully loadedFlooring:2 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"BogieDeck to bogie connection:FixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard
- Axle Capacity
- 25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
- 25,000 lb. nominal capacity per axle NOTE
- GAWR determined by suspension type, brakes, tires and other components.
General
- TrailerLength
- 50 feet 0 inchesWidth:102 inches wide
- Length
- 50 feet 0 inches
- Width
- 102 inches wide
- Design
- Narrow hydraulic removable non-ground bearing - swing radius of 102 inches (11 ft 11 in overall gooseneck length) - set up for wet line operation
- Swing radius
- 102 inches
- DeckDeck type
- Standard FLDDeck length:29 feet 2 inches clear deck lengthDeck width:8 feet 6 inchesLoaded deck height/clearance:15 inches with 6 inches ground clearance at front and rear of deck - 14 inches with 5 inches ground clearance at center when fully loadedFlooring:2 inch nominal Apitong wood (full width)
- Deck type
- Standard FLD
- Flooring
- 2 inch nominal Apitong wood (full width)
- BogieDeck to bogie connection
- FixedRear bogie height:41.5 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floor
- Deck to bogie connection
- Fixed
- Rear bogie height
- 41.5 inches
- Covered Rear Bogie
- Rear bogie platform with 1 1/8 inch wood floor
Gooseneck
- GooseneckDesign
- Narrow hydraulic removable non-ground bearing - swing radius of 102 inches (11 ft 11 in overall gooseneck length) - set up for wet line operationSwing radius:102 inches
Dimensions
- Deck length
- 29 feet 2 inches clear deck length
- Deck width
- 8 feet 6 inches
- Loaded deck height/clearance
- 15 inches with 6 inches ground clearance at front and rear of deck - 14 inches with 5 inches ground clearance at center when fully loaded
Axles
- AxlesStandard trailer axles
- 2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:50"
- Standard trailer axles
- 2
- Axle spread
- 50"
Tires & Wheels
- TiresTire size
- 255/70R 22.5 H ply OEM Standard
- Tire size
- 255/70R 22.5 H ply OEM Standard
About double drop trailers
A double drop has two steps: one behind the neck and one ahead of the rear axles, forming a low well in the middle. The well sits close to the ground and typically runs 25 to 29 feet, which is where tall, heavy items ride — presses, transformers, compact cranes. Detachable and fixed-neck versions exist, and extendable wells handle over-length pieces.
