Fontaine Trailer
Renegade X20
- Capacity
- 40 ton
- Axles
- 2
- Deck length
- 29 ft
- Deck height
- 20 in
Overview

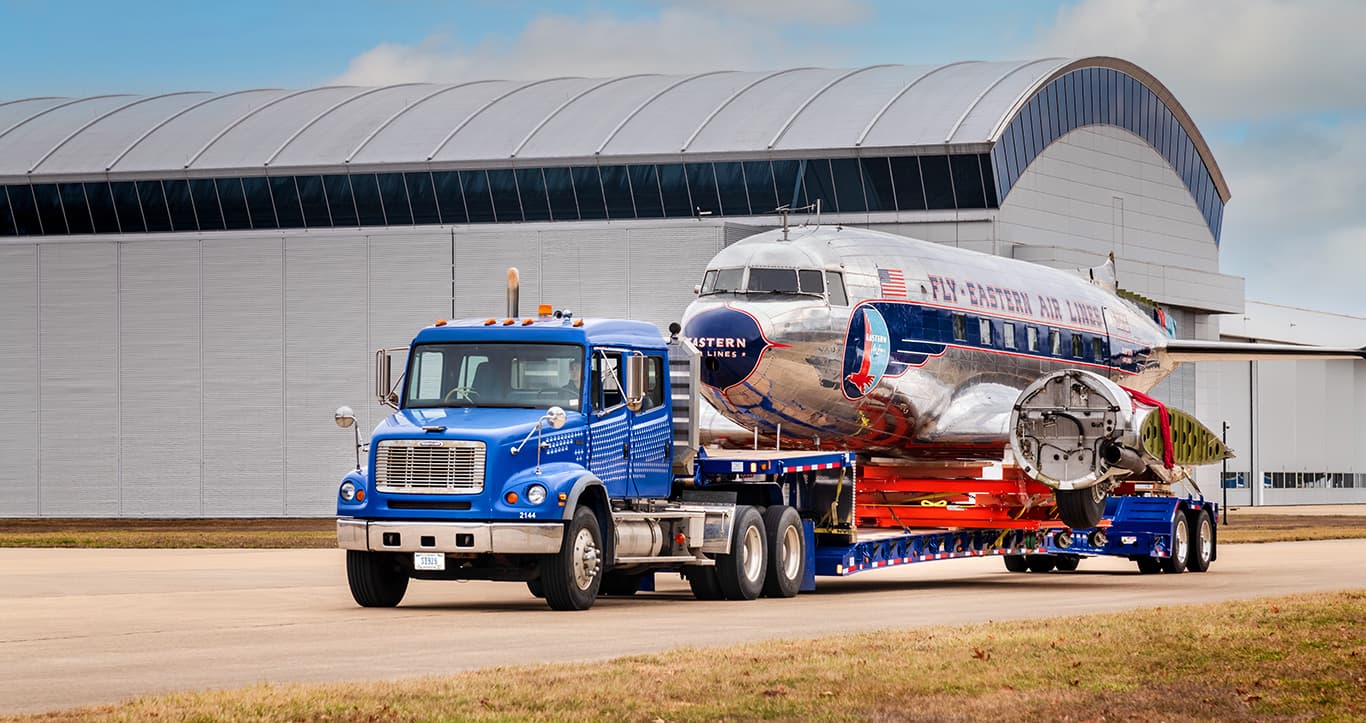

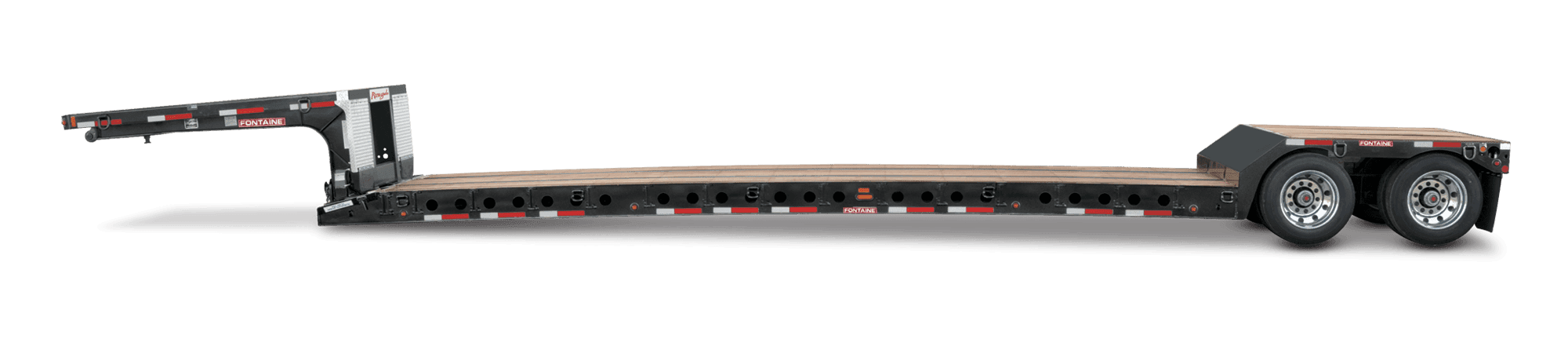

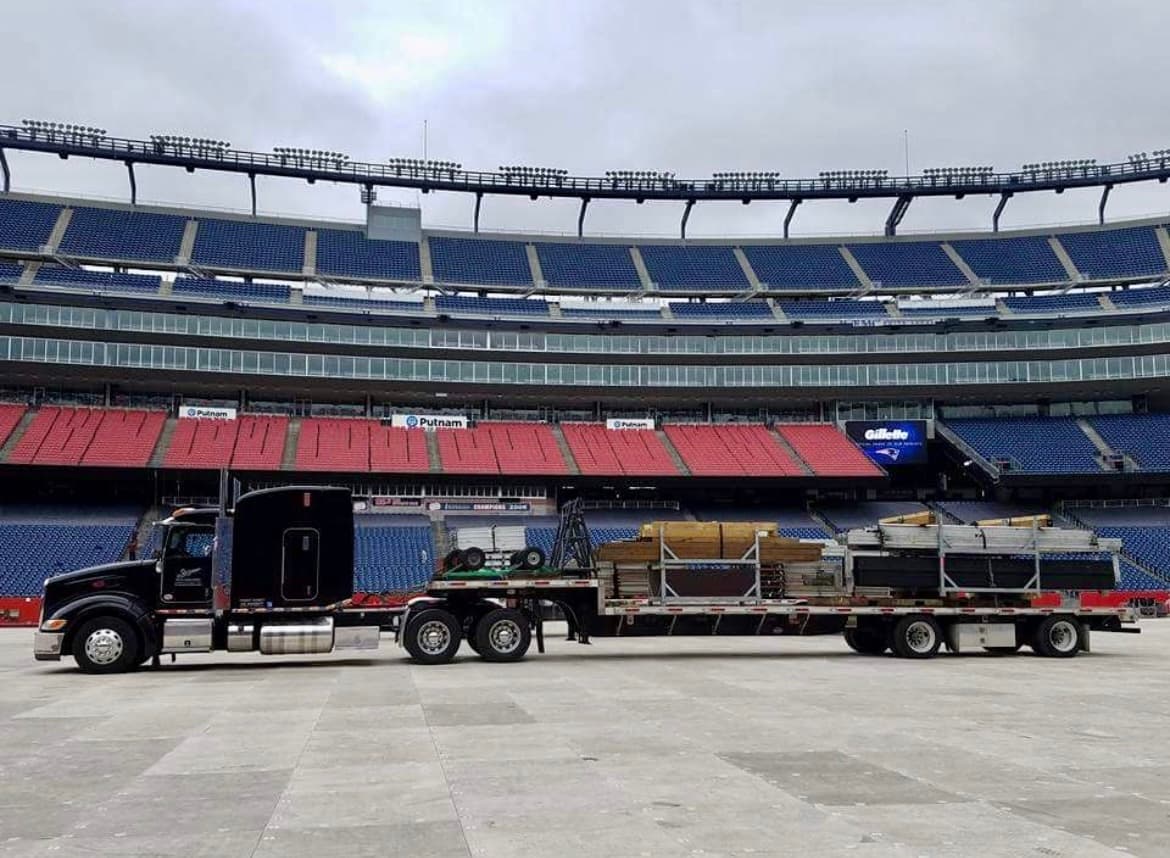

The Fontaine Trailer Renegade X20 is a 40-ton double drop trailer with 2 axles, a 29-foot deck and a 20-inch loaded deck height. Trailers of this type typically haul tall, heavy items such as presses, transformers and compact cranes.
Specifications
Capacity
- Standard SpecificationsCapacity40 tons in 16-foot length - GAWR and tire ratings determine legal loadsTrailerLength
- 47 feet 11 inches ** unless 34 60 deck length selected then overall length is 53Width:102 inches wideGooseneckDesign:Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loadedSwing radius:81 inchesDeckDeck type:Extendable FLDDeck length:29 feet 0 inches clear deck length (retracted) - 50 feet 0 inches (extended) 34 feet 0 inches clear deck length (retracted) - 60 feet 0 inches (extended) ** Note trailer overall length is 53 feetDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard
- Capacity40 tons in 16-foot length - GAWR and tire ratings determine legal loadsTrailerLength
- 47 feet 11 inches ** unless 34 60 deck length selected then overall length is 53Width:102 inches wideGooseneckDesign:Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loadedSwing radius:81 inchesDeckDeck type:Extendable FLDDeck length:29 feet 0 inches clear deck length (retracted) - 50 feet 0 inches (extended) 34 feet 0 inches clear deck length (retracted) - 60 feet 0 inches (extended) ** Note trailer overall length is 53 feetDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal Apitong wood (full width)AxlesStandard trailer axles:2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floorTiresTire size:255/70R 22.5 H ply OEM Standard
- Axle Capacity
- 25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
- 25,000 lb. nominal capacity per axle NOTE
- GAWR determined by suspension type, brakes, tires and other components.
General
- TrailerLength
- 47 feet 11 inches ** unless 34 60 deck length selected then overall length is 53Width:102 inches wide
- Length
- 47 feet 11 inches ** unless 34 60 deck length selected then overall length is 53
- Width
- 102 inches wide
- Design
- Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loaded
- Swing radius
- 81 inches
- DeckDeck type
- Extendable FLDDeck length:29 feet 0 inches clear deck length (retracted) - 50 feet 0 inches (extended) 34 feet 0 inches clear deck length (retracted) - 60 feet 0 inches (extended) ** Note trailer overall length is 53 feetDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1 3/8 inch nominal Apitong wood (full width)
- Deck type
- Extendable FLD
- Flooring
- 1 3/8 inch nominal Apitong wood (full width)
- BogieDeck to bogie connection
- FixedRear bogie height:41 inchesDesign:Covered Rear Bogie:Rear bogie platform with 1 1/8 inch wood floor
- Deck to bogie connection
- Fixed
- Rear bogie height
- 41 inches
- Covered Rear Bogie
- Rear bogie platform with 1 1/8 inch wood floor
Gooseneck
- GooseneckDesign
- Mechanical removable with removable fifth wheel guide rollers - Combination figure-8 plate which provides 50 inches and 52 inches loadedSwing radius:81 inches
Dimensions
- Deck length
- 29 feet 0 inches clear deck length (retracted) - 50 feet 0 inches (extended) 34 feet 0 inches clear deck length (retracted) - 60 feet 0 inches (extended) ** Note trailer overall length is 53 feet
- Deck width
- 8 feet 6 inches
- Loaded deck height/clearance
- 20 inches with 6 inches ground clearance
Axles
- AxlesStandard trailer axles
- 2Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"
- Standard trailer axles
- 2
- Axle spread
- 54.5"
Tires & Wheels
- TiresTire size
- 255/70R 22.5 H ply OEM Standard
- Tire size
- 255/70R 22.5 H ply OEM Standard
About double drop trailers
A double drop has two steps: one behind the neck and one ahead of the rear axles, forming a low well in the middle. The well sits close to the ground and typically runs 25 to 29 feet, which is where tall, heavy items ride — presses, transformers, compact cranes. Detachable and fixed-neck versions exist, and extendable wells handle over-length pieces.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
