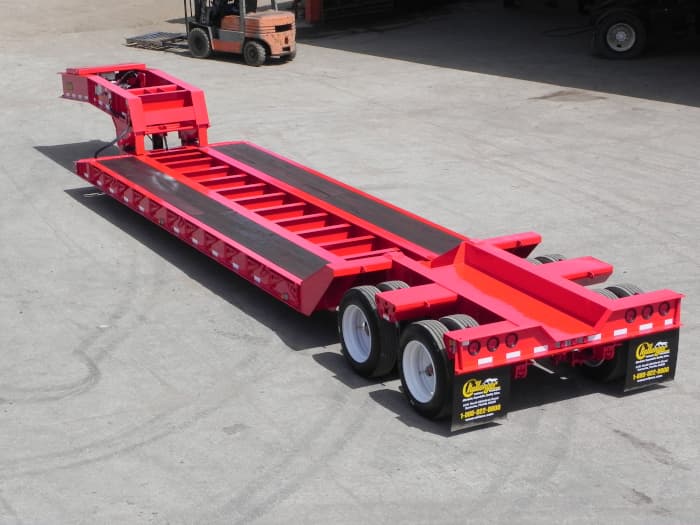

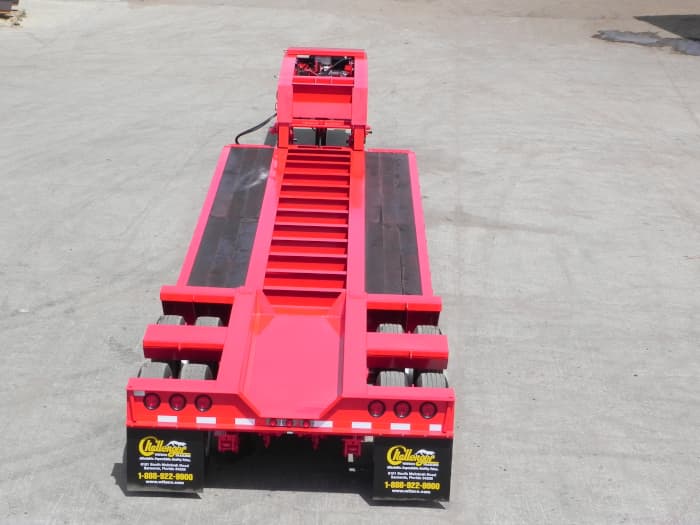

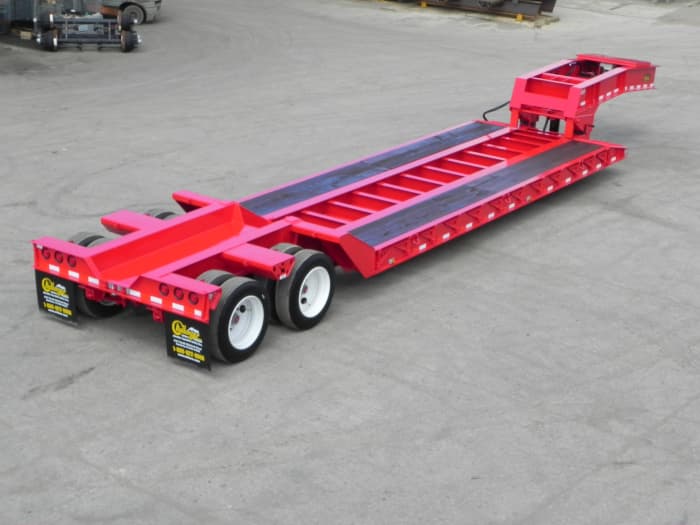

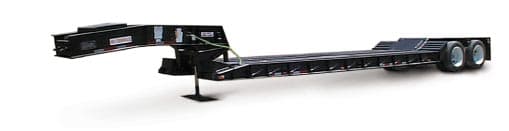

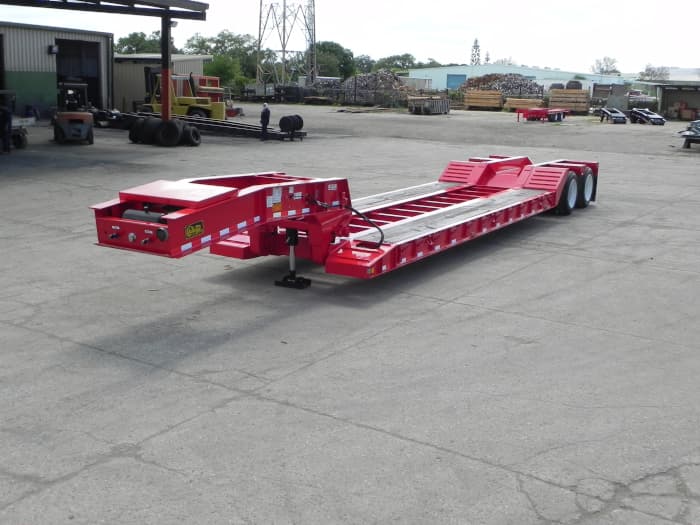

Witzco Challenger
RG-35 • 35 Ton Removable Gooseneck Series
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 22 ft
Overview
From Witzco Challenger
RG 35 Standard Features – 70,000# load capacity, 2 axles with 43′ 11″ overall length. Removable gooseneck, 8’6″ wide, level deck style. Ground bearing, 2 angle scraper gooseneck with self-contained hydraulic system. 22′ load deck, tapered front beam, 2″ lumber decking & (24) 12″ outriggers (12 each side). 3 “D” rings per side of deck & 2 on front stumps at tire area. Hutch 9700 spring suspension, 25,000# capacity axles, 16.5″ x 7″ air brakes, unimount wheels with 255/70 R22.5 Radial tires. Modular wire harness, rubber mounted sealed lites, DOT approved. *Note: ABS brakes required on all 35 and 40-ton domestic sales.
Specifications
Capacity
- Load Capacity
- 70,000 lbs
Running Gear
- Axles
- 2
- Axle Capacity
- 25,000 lbs
- Suspension
- Hutch 9700 spring suspension
- Brakes
- 16.5" x 7" air brakes
- Tires
- 255/70 R22.5
Dimensions
- Overall Length
- 43' 11"
- Deck Length
- 22'
- Width
- 8' 6"
Construction
- Decking
- 2" lumber decking
- Outriggers
- 24 × 12"
Hydraulics
- Hydraulic System
- Self-contained
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
