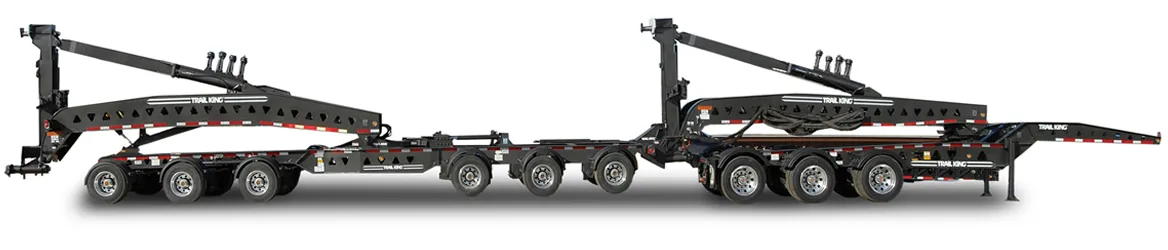

Schnable System for Heavy-Haul & Wind Tower Transport
Interested in Our Hauling Solutions?
- Capacity
- 43 ton
Overview
From Trail King
Trail King offers front and rear schnable goosenecks engineered to be lightweight while still increasing payload. This product offers more lifting power enabled by operating at a lower hydraulic pressure. The supportive truss brace at the top of the tower offers greater stability and service life and the dual-side controls are accessible from the ground level for user-friendly operation. Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King Schnable System Protect Your Investment with Our Complete Line of Services Trail King Paint Options
Specifications
General
- Schnable System – Standard Equipment
- 24’ Gen 3 Front Gooseneck
- Pivoting tower raises and lowers load
- X
- Telescoping single tower adapts to flange diameter
- X
- Single upper tower support
- X
- 1 set of tension hooks
- X
Capacity
- Capacity
- 85,000 lbs.
- Weight
- 11,850 lbs.
Hydraulics
- Hydraulic support (requires external supply)
- X
- Hydraulic Controls
- Both sides
Gooseneck
- Air lock for main lift and gooseneck support arm
- X

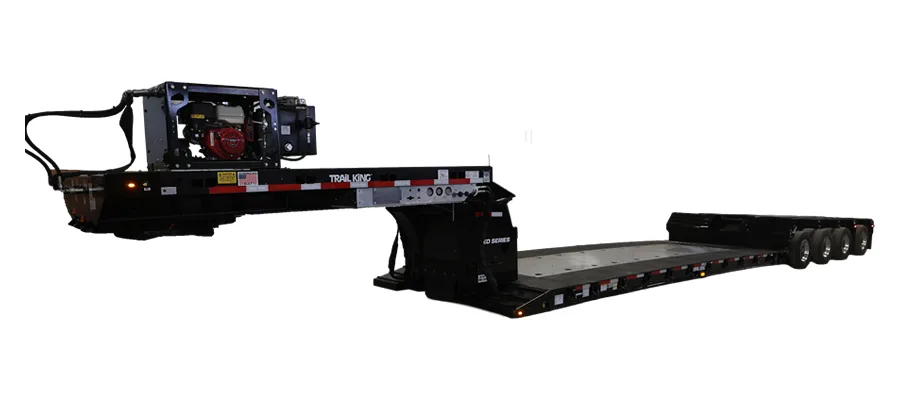

About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
