Rogers Brothers

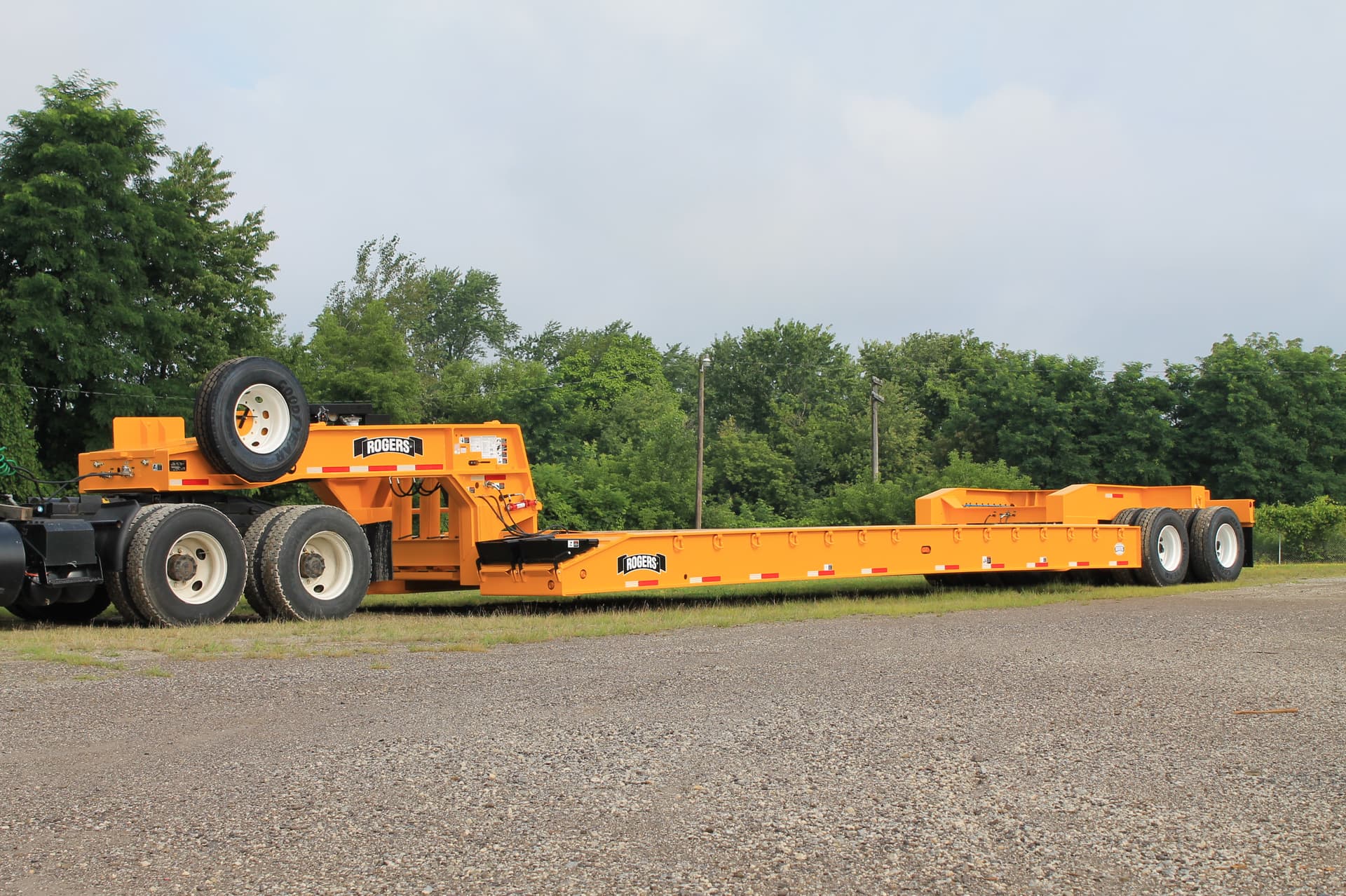

SP132PL 132-Ton Detachable Gooseneck
- Capacity
- 132 ton
- Axles
- 4
- Deck length
- 30.9 ft
- Deck height
- 32 in
Overview
From Rogers Brothers
This 132-ton capacity front loading trailer was manufactured for use in a copper mine in South America. The modular design allows different deck styles to be interchanged with the existing platform deck. A total of four front folding ramps (two on each side of the deck) are steel-covered with grouser bars and a handle. The "Bucket Pocket" in the deck and "Boom Trough" between the rear frame beams gives the bucket and stick of an excavator a place to nestle between the wheels and into the deck to improve overhead clearance.
Specifications
Capacity
- Capacity
- 132.0-ton
- Concentrated Load
- 264,555-pounds
- Concentrated Load Length
- 26'-0"
Dimensions
- Deck Length
- 30'-11"
- Loaded Deck Height
- 32"
- Deck Width
- 14'-8"
- Deck Style
- Platform
Running Gear
- Axles
- 4 axles
- Axle Type
- 44,092 lb capacity with oil-bathed bearings
- Suspension
- 176,370 lb capacity trunnion style suspension
- Tires
- 315/80R22.5(L) low-profile tubeless radial
- Wheels
- 22.5 x 9.00 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes (no ABS)
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Modular
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
