Rogers Brothers

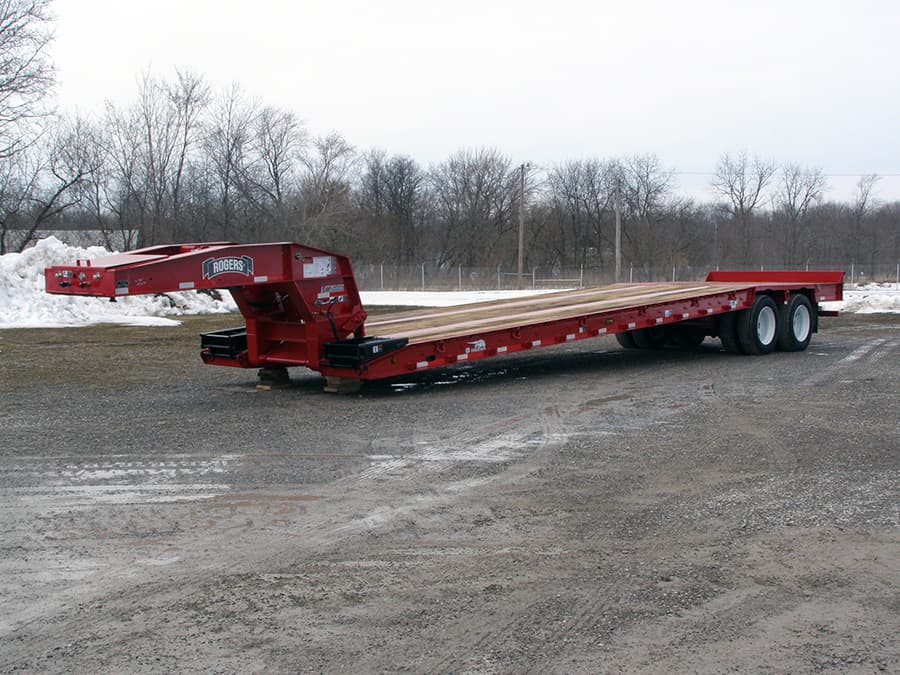

SP35SL 35-Ton Detachable Gooseneck
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 38 ft
Overview
From Rogers Brothers
This 35-ton Sloper is noted for the deck with a gradual 5º incline which makes it a great working companion for paving equipment. The level rear frame is 10'-6" long including a 49" extension and reinforced 1/4" tread plate wheel covers. Standard features: No Foot Direct-Push style detachable gooseneck; Exclusive Croucher low, tapered fron with concealed beam hooks; Trap door extension blocks for adjusting 5th wheel height; Hydraulic power source: Tractor PTO; Full 2-inch air-dired oak decking; Lashing D's (5) each side of deck; Side bracket bearings only; US DOT-approved rear impact guard; Cable pull remote for air tank drain; Anti-lock Braking System; US DOT-approved LED rubber-mounted lights with sealed wiring and 7-wire socket; Rogers red or black industrial enamel finish coat.
Specifications
Capacity
- Capacity
- 35.0-ton
- Concentrated Load
- 70,000-pounds
- Concentrated Load Length
- 19'-0"
Dimensions
- Deck Length
- 38'-0"
- Deck Width
- 8'-6"
- Deck Style
- Sloper
Running Gear
- Axles
- 2 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
