Rogers Brothers
SP40PL 40-Ton Detachable Gooseneck
- Capacity
- 40 ton
- Axles
- 3
- Deck length
- 22 ft
- Deck height
- 21 in
Overview
From Rogers Brothers

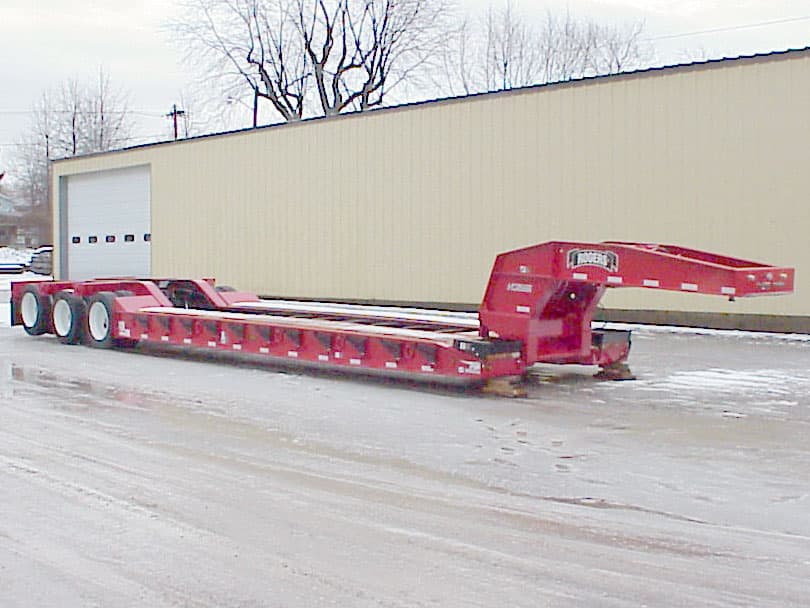

The SP40PL lowbed is a 40-ton capacity platform deck with the "Croucher"® front end. It can carry a load in half the deck length. This trailer was built with four 16" deep beams and no center boards -- for lighter overall weight.
Specifications
Capacity
- Capacity
- 40.0-ton
- Concentrated Load
- 80,000-pounds
- Concentrated Load Length
- 11'-0"
Dimensions
- Deck Length
- 22'-0"
- Loaded Deck Height
- 21"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 3 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
