Rogers Brothers

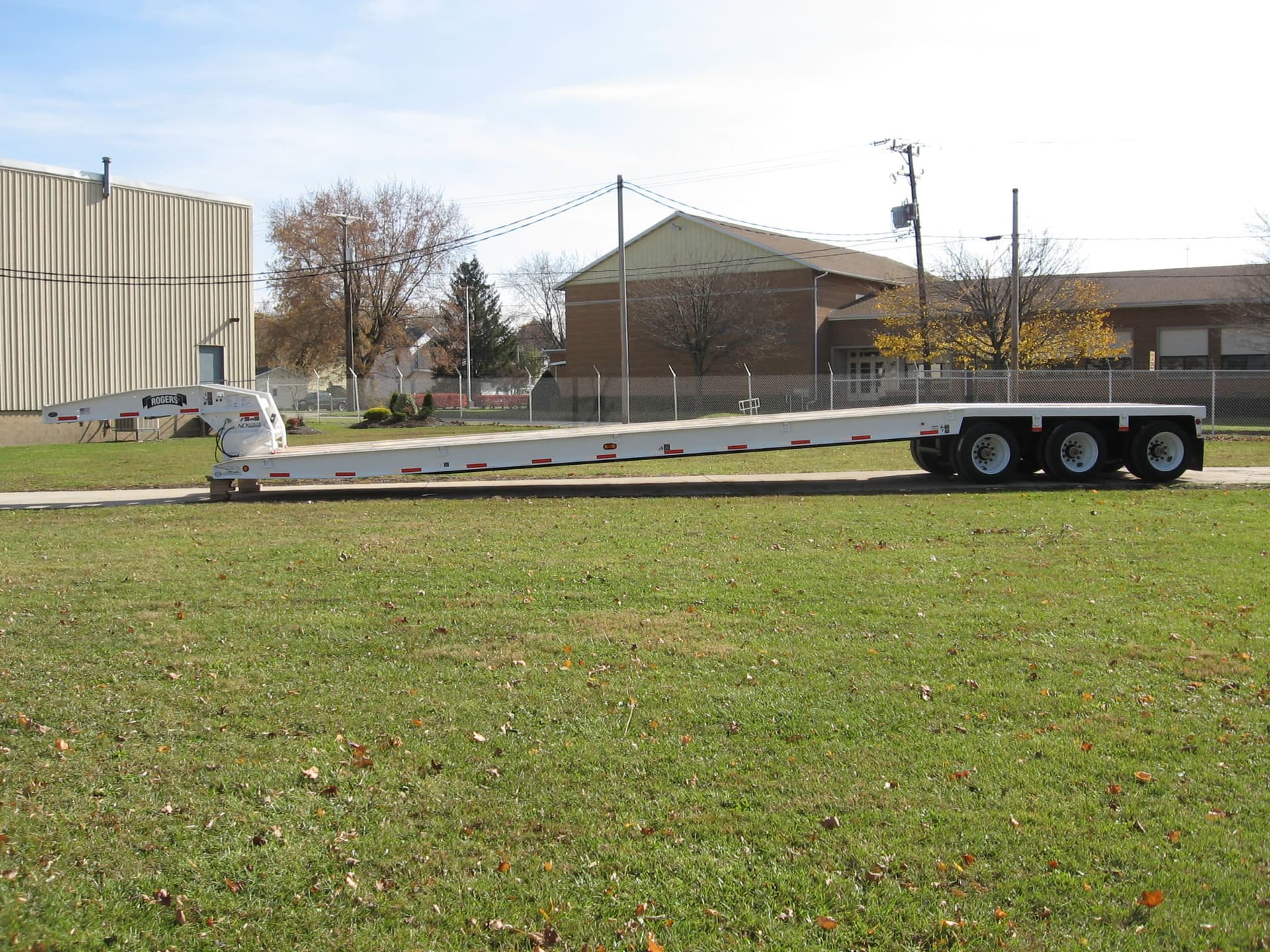

SP40SL-3XAR 40-Ton Detachable Gooseneck
- Capacity
- 40 ton
- Axles
- 3
- Deck length
- 33 ft
Overview
From Rogers Brothers
This 40-ton low bed has a "No Foot"® Direct-Push detachable gooseneck and a "Sloper" deck design known for easier loading.
Specifications
Capacity
- Capacity
- 40.0-ton
- Concentrated Load
- 80,000-pounds
- Concentrated Load Length
- 23'-0"
Dimensions
- Deck Length
- 33'-0"
- Deck Width
- 8'-6"
- Deck Style
- Sloper
Running Gear
- Axles
- 3 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Specialized
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
