Rogers Brothers
SP55DS-BA-R4 55-Ton Detachable Gooseneck
- Capacity
- 55 ton
- Axles
- 3
- Deck length
- 25 ft
- Deck height
- 15 in
Overview
From Rogers Brothers

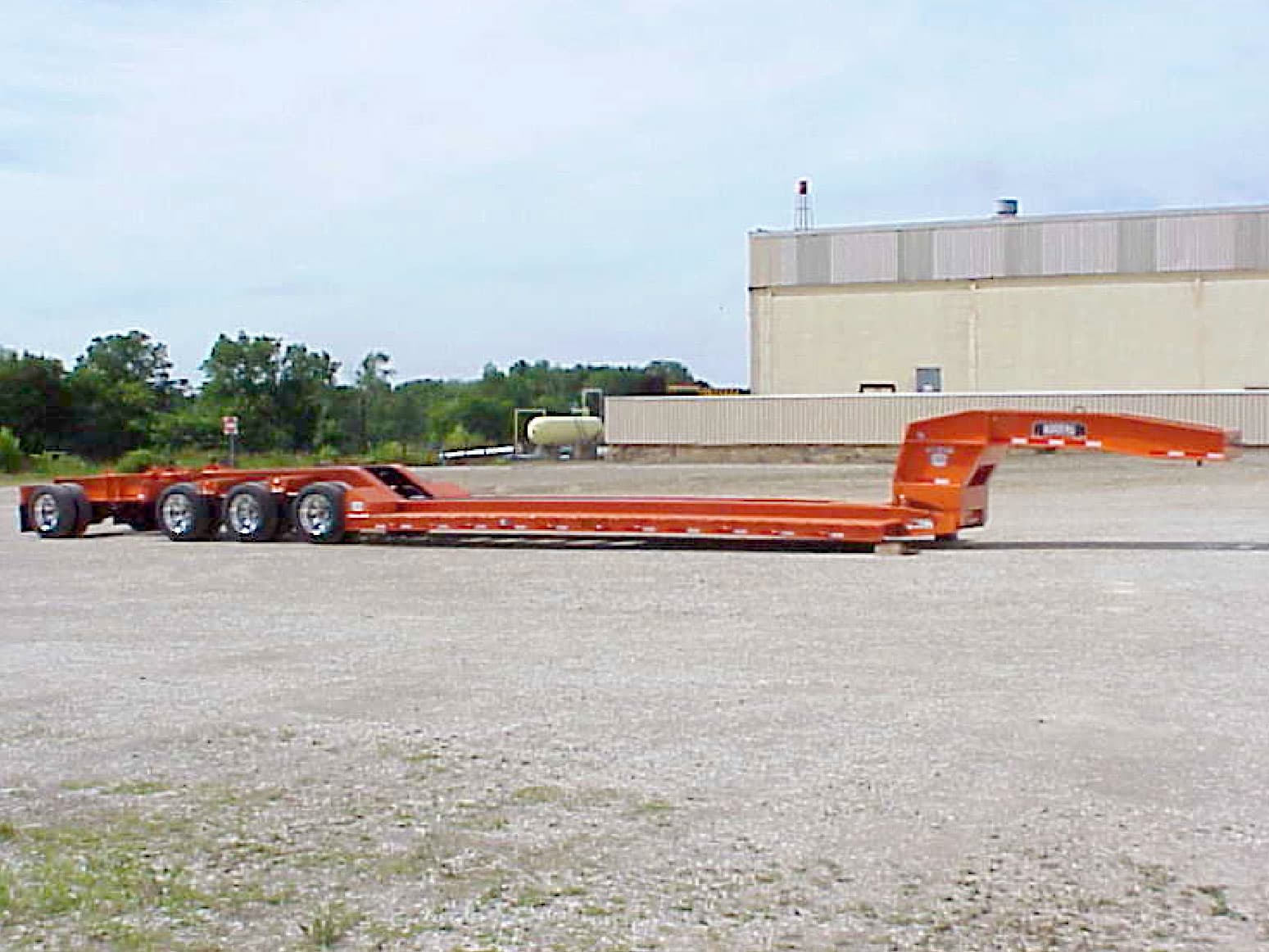

This 55-ton capacity ROGERS specialized lowboy features a 3 + 1 axle configuration to meet certain state weight law restrictions. The patented "No Foot"® gooseneck is designed to use low hydraulic pressures to lift the load without having to shift its position on the deck. The cambered drop side deck height can be as low as 15" in the normal ride condition.
Specifications
Capacity
- Capacity
- 55.0-ton
- Concentrated Load
- 110,000-pounds
- Concentrated Load Length
- 13'-0"
Dimensions
- Deck Length
- 25'-0"
- Loaded Deck Height
- 15"
- Deck Width
- 8'-6"
- Deck Style
- Drop Side
Running Gear
- Axles
- 3+1 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 275/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 aluminum outside/steel inside
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
