Rogers Brothers

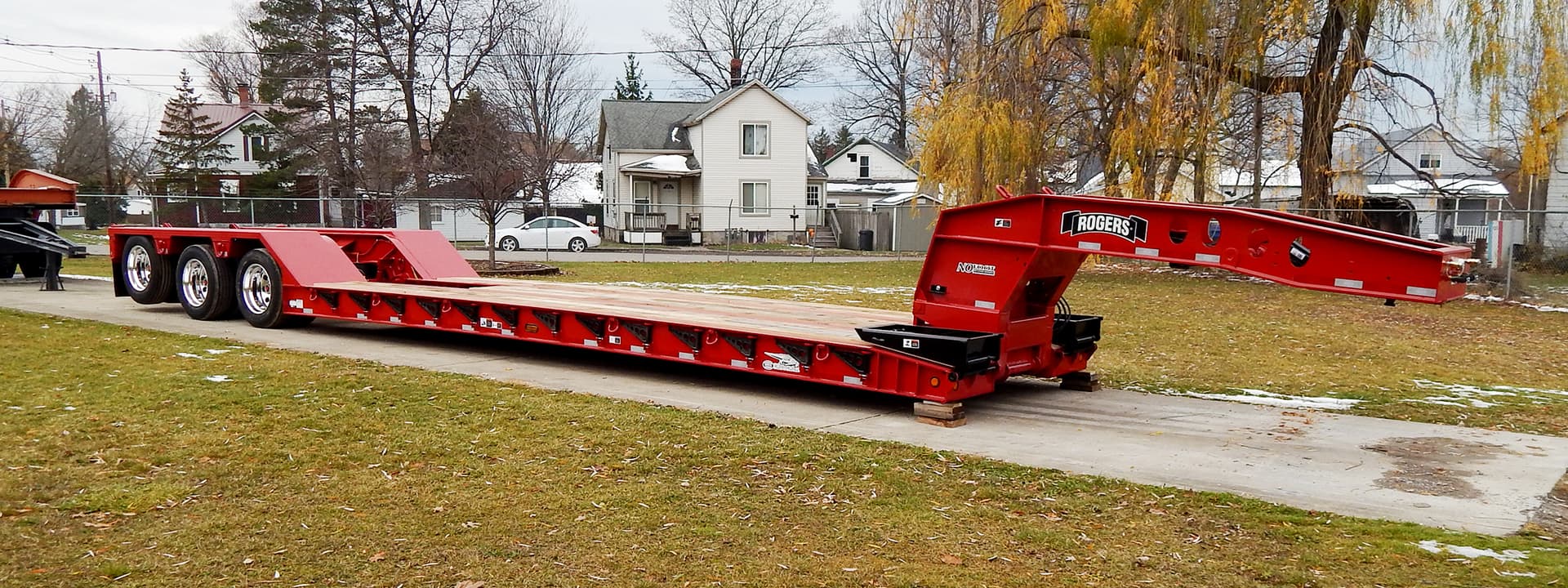

SP55PL 55-Ton Detachable Gooseneck (25' Deck)
- Capacity
- 55 ton
- Axles
- 3
- Deck length
- 25 ft
- Deck height
- 20 in
Overview
From Rogers Brothers
Aggressively designed to reduce weight without sacrificing performance, the ROGERS® Ultima Series model SP55PL is our latest 55-ton detachable gooseneck trailer. It features the "NoFoot"® self-lifting gooseneck, the Croucher® low, tapered front end, and a "Bucket Pocket" in the deck. The wide "Boom Trough" in the trailer's rear frame combines with the 20" loaded deck height for a remarkably low transport height. Standard features: "No Foot"® Tower style gooseneck; Trap door extension blocks for adjusting 5th wheel height; Dual-arm hydraulic gooseneck support jack with shoe; Hydraulic power source: Tractor PTO; Four-beam cambered frame design with 14" main beams; Exclusive "Croucher"® low, tapered front deck with concealed beam hooks; 1 3/4" air-dried oak decking; No center boards; Total (26) removable swinging side brackets; Total (16) bent lashing D's; Total (6) straight lashing D's inside trailer deck; "Bucket Pocket" in rear of deck; Arch-type rear frame with sloped bridge ramps; "Boom Trough" in trailer rear frame; Wide, load-bearing trunnions between tires; LED lights: US DOT-approved 12-volt rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Flag holders; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).
Specifications
Capacity
- Capacity
- 55.0-ton
- Concentrated Load
- 110,000-pounds
- Concentrated Load Length
- 12'-0"
Dimensions
- Deck Length
- 25'-0"
- Loaded Deck Height
- 20"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 3 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 275/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole hub piloted steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
