Rogers Brothers
SP55PL 55-Ton Detachable Gooseneck (26' Deck)
- Capacity
- 55 ton
- Axles
- 3
- Deck length
- 26 ft
- Deck height
- 20 in
Overview
From Rogers Brothers

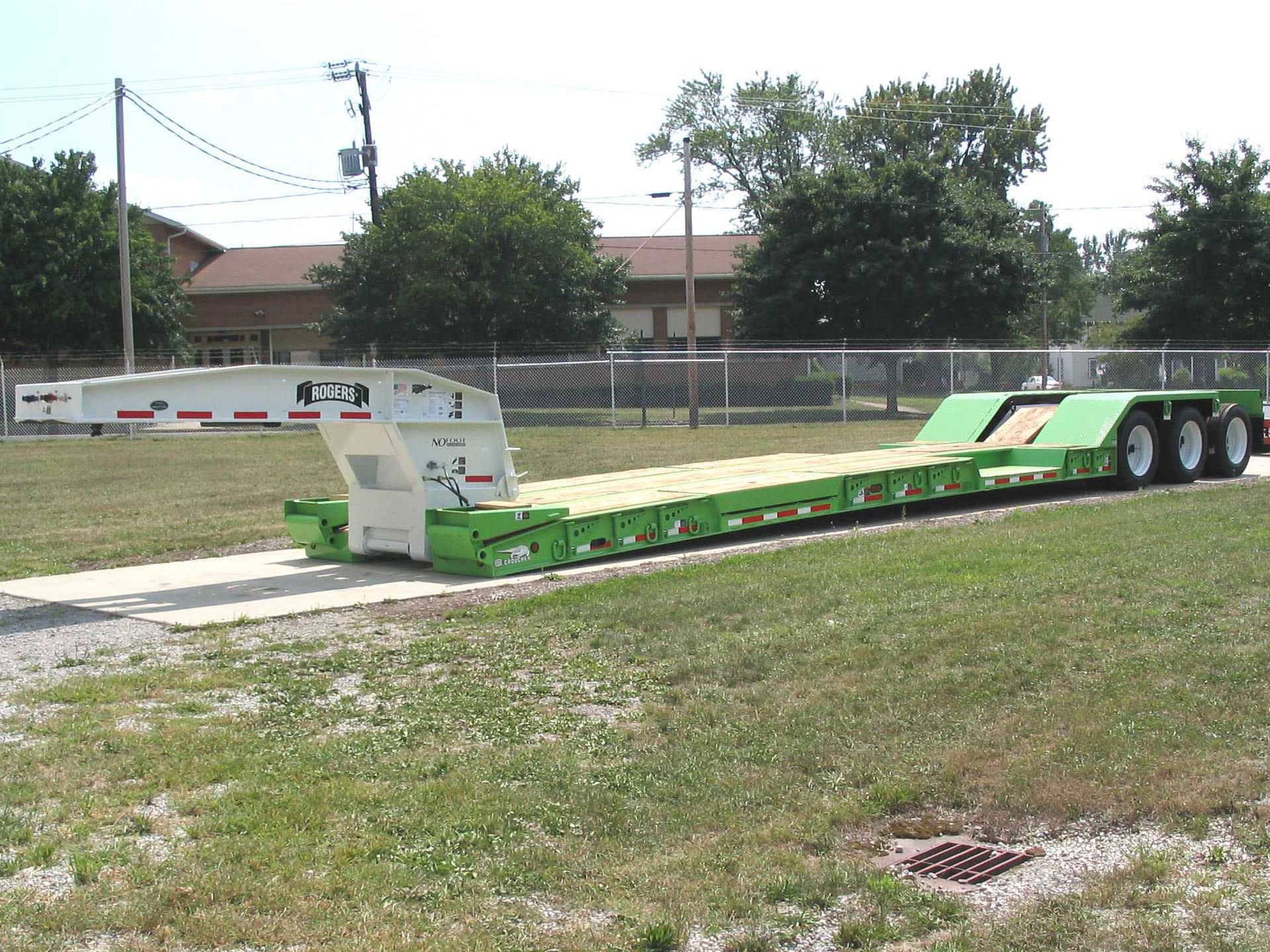

This Specialized ROGERS 55-ton capacity trailer has the exclusive "Croucher"® platform deck featuring the award winning wheel wells. This is a multi-use lowboy capable of carrying excavators, rubber-tired loaders, or milling machines just by removing the deck inserts.
Specifications
Capacity
- Capacity
- 55.0-ton
- Concentrated Load
- 110,000-pounds
- Concentrated Load Length
- 13'-0"
Dimensions
- Deck Length
- 26'-0"
- Loaded Deck Height
- 20"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 3 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 275/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
