Rogers Brothers
SP60DS-R4 60-Ton Detachable Gooseneck
- Capacity
- 60 ton
- Axles
- 3
- Deck length
- 25 ft
- Deck height
- 15 in
Overview
From Rogers Brothers

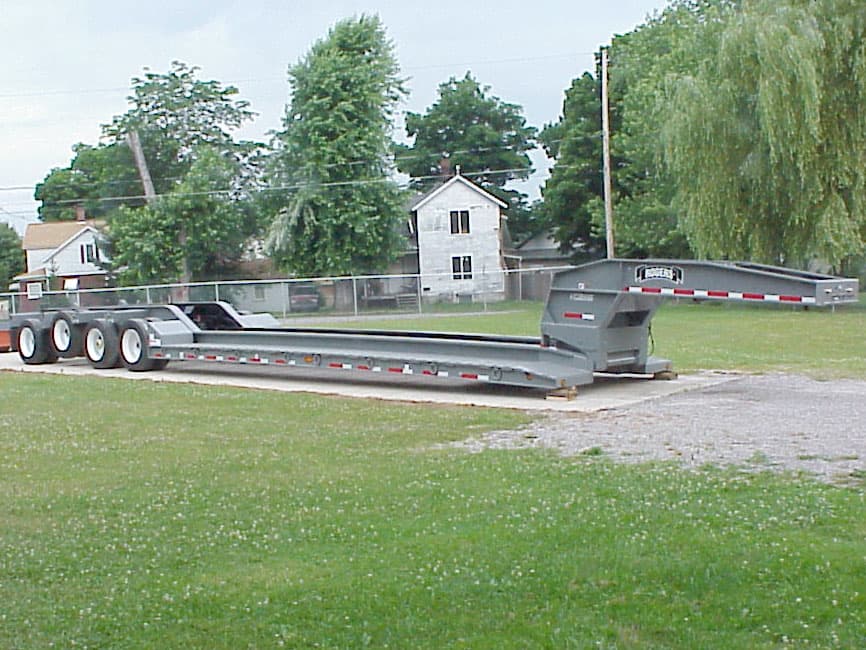

This specialized lowboy has a cambered drop side deck designed to carry 60 tons in 1/2 of its deck length. The front end's taper and the modified ramp ahead of the tires – both assist loading. The patented "No Foot"® gooseneck with a heavy lift package can pick up its load located anywhere on the deck.
Specifications
Capacity
- Capacity
- 60.0-ton
- Concentrated Load
- 120,000-pounds
- Concentrated Load Length
- 13'-0"
Dimensions
- Deck Length
- 25'-0"
- Loaded Deck Height
- 15"
- Deck Width
- 9'-0"
- Deck Style
- Drop Side
Running Gear
- Axles
- 3+1 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 275/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
