Rogers Brothers

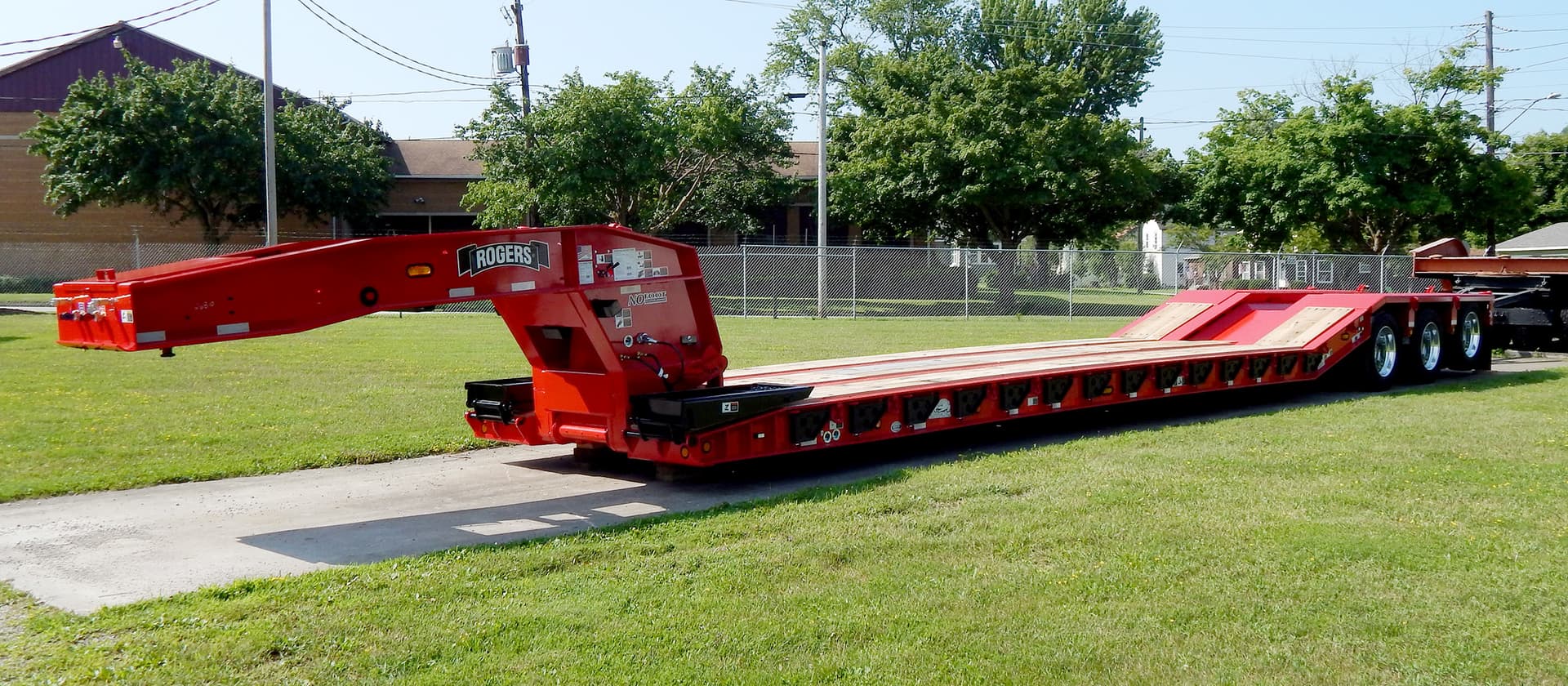

SP60GR-3XAR 60-Ton Detachable Gooseneck (26' Deck)
- Capacity
- 60 ton
- Axles
- 3
- Deck length
- 26 ft
- Deck height
- 20 in
Overview
From Rogers Brothers
This custom designed 60-ton "Gentle Riser"® detachable gooseneck lowboy is loaded with features and optional equipment! It has our exclusive tower style "No Foot"® non-ground bearing gooseneck with optional heavy lift package for extreme duty operation. The trailer deck features the easy to load "Croucher"® front slope, cambered platform deck that is 26 ft. long x 8'-6" wide, the ROGERS "Gentle Riser"® that provides a easy to load 17° load angle from the deck to the rear frame load area. Smooth ride air suspension features multiple ride heights, a dump valve, and an air lift 3rd axle. Standard features: Platform deck 26'-0" x 8'-6" with 20" loaded deck height; "Croucher" front approach with tapered beams and flush beam hooks; 14" deep cambered main beams fabricated with high yield 100ksi steel; Dual-arm hydraulic gooseneck support jack with shoe; Axle spacing 54 ½"; Hydraulic power source: Truck PTO; Full 2" air-dried oak decking; Side member flange reinforcing; Twenty-eight (28) severe-duty swinging removable side brackets; Sixteen (16) bent lashing D's · eight (8) each side of deck; "Bucket Pocket" with last three (3) cross members lowered between main beams; "Gentle Riser" 17° oak-covered incline to rear frame; 3/8" tread plate wheel covers, reinforced; 3/8" smooth plate lowered center cover plate up riser to rear channel; Trunnion beams between wheels with lashing D each end; Air suspension · 25,000 lb capacity with mechanical height control; Suspension dump valve; Air lift on 3rd axle; Premium 4S/2M antilock braking system with spring parking brakes; LED LIghts: US DOT 12-volt rubber grommet mounted; Sealed wiring system with 7-wire socket; Epoxy primer: Rogers Red or Black polyurethane enamel topcoat.
Specifications
Capacity
- Capacity
- 60.0-ton
- Concentrated Load
- 120,000-pounds
- Concentrated Load Length
- 16'-0"
Dimensions
- Deck Length
- 26'-0"
- Loaded Deck Height
- 20"
- Deck Width
- 8'-6"
- Deck Style
- Gentler Riser
Running Gear
- Axles
- 3 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 275/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 aluminum outside/steel inside
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
