Rogers Brothers
SP60GR-3XARR4 60-Ton Detachable Gooseneck
- Capacity
- 60 ton
- Axles
- 3
- Deck length
- 26 ft
- Deck height
- 20 in
Overview
From Rogers Brothers

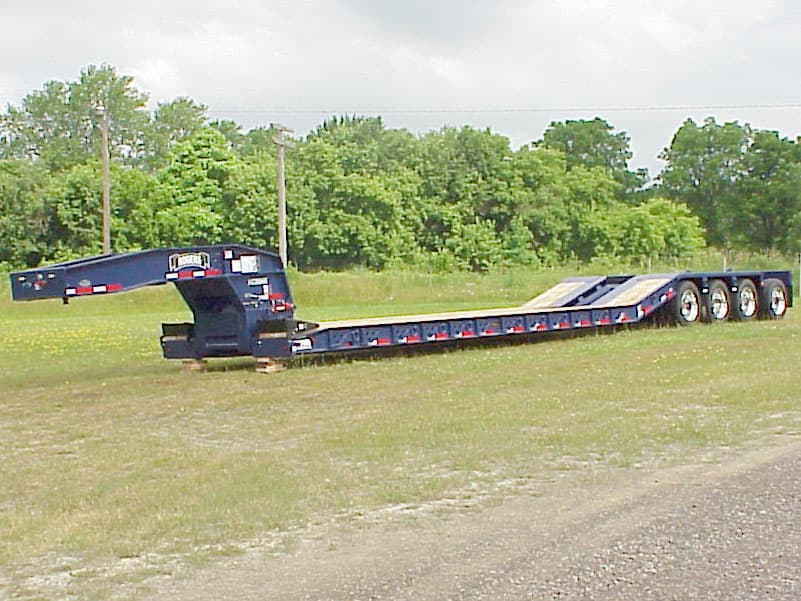

This ROGERS® SP60GR is a 60-ton capacity lowboy equipped with the patented "No Foot"® detachable gooseneck and a 20" loaded platform. The rear frame features the 16º "Gentle Riser" with 3 fixed axles and a removable 4th axle.
Specifications
Capacity
- Capacity
- 60.0-ton
- Concentrated Load
- 120,000-pounds
- Concentrated Load Length
- 16'-0"
Dimensions
- Deck Length
- 26'-0"
- Loaded Deck Height
- 20"
- Deck Width
- 8'-6"
- Deck Style
- Gentler Riser
Running Gear
- Axles
- 3+1 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 275/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 aluminum outside/steel inside
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
