Rogers Brothers

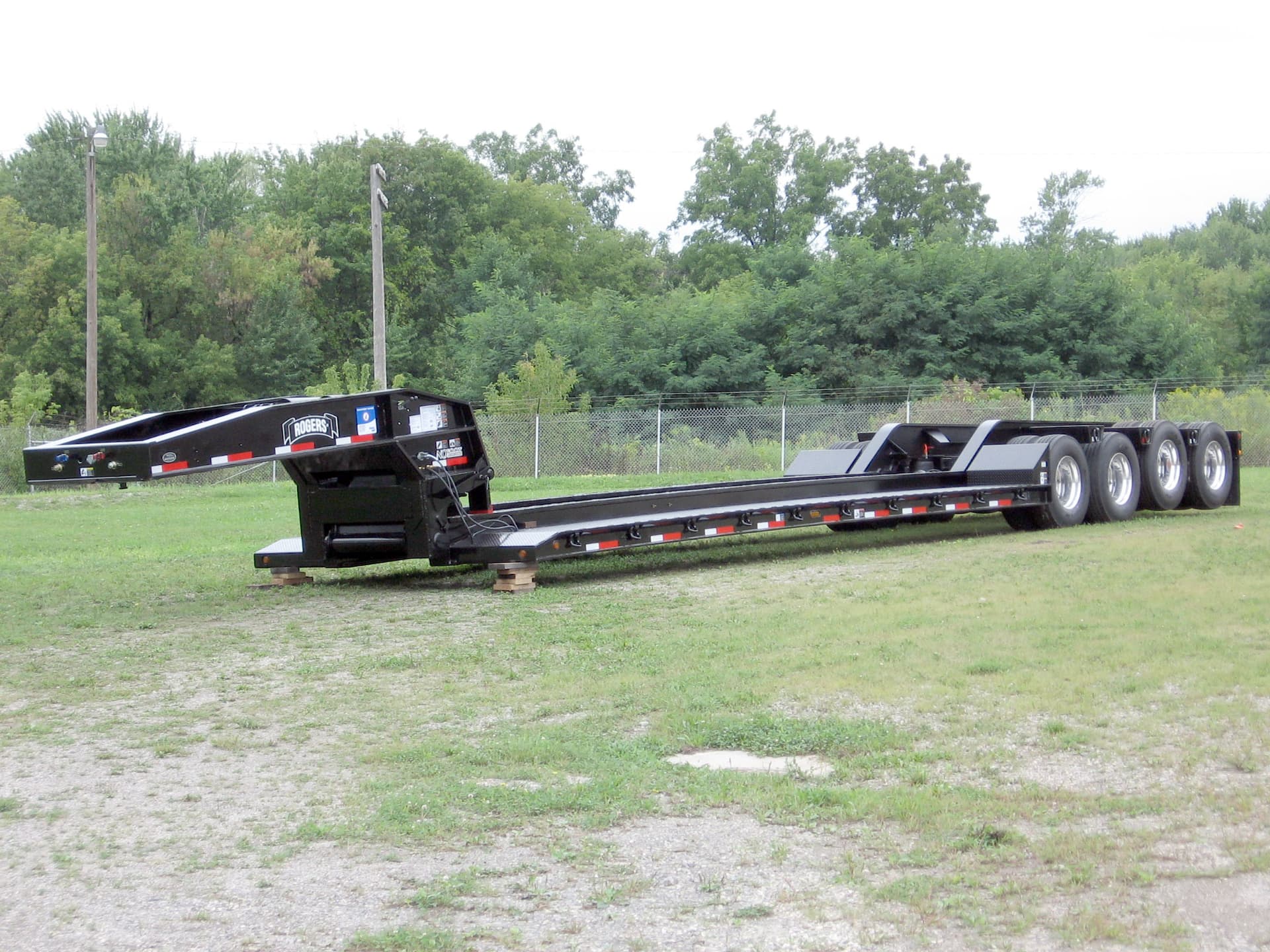

SP75DS-4XAR 75-Ton Detachable Gooseneck
- Capacity
- 75 ton
- Axles
- 4
- Deck length
- 27 ft
- Deck height
- 15 in
Overview
From Rogers Brothers
This 75-ton lowbed has the powerful "No Foot"® detachable gooseneck, drop side deck of 1/4" tread plate, and sloped bridge ramps before the tires. Its load concentration is 150,000 lb. in 14'-0" – half the length of the deck.
Specifications
Capacity
- Capacity
- 75.0-ton
- Concentrated Load
- 150,000-pounds
- Concentrated Load Length
- 14'-0"
Dimensions
- Deck Length
- 27'-0"
- Loaded Deck Height
- 15"
- Deck Width
- 10'-6"
- Deck Style
- Drop Side
Running Gear
- Axles
- 4 axles
- Axle Type
- 25,000 lbs. capacity with oil-bathed bearings
- Suspension
- Air Ride 25,000 lb. capacity per axle
- Tires
- 315/80R22.5(L) low-profile tubeless radial
- Wheels
- 22.5 x 9.00 10-hole aluminum disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
