Rogers Brothers

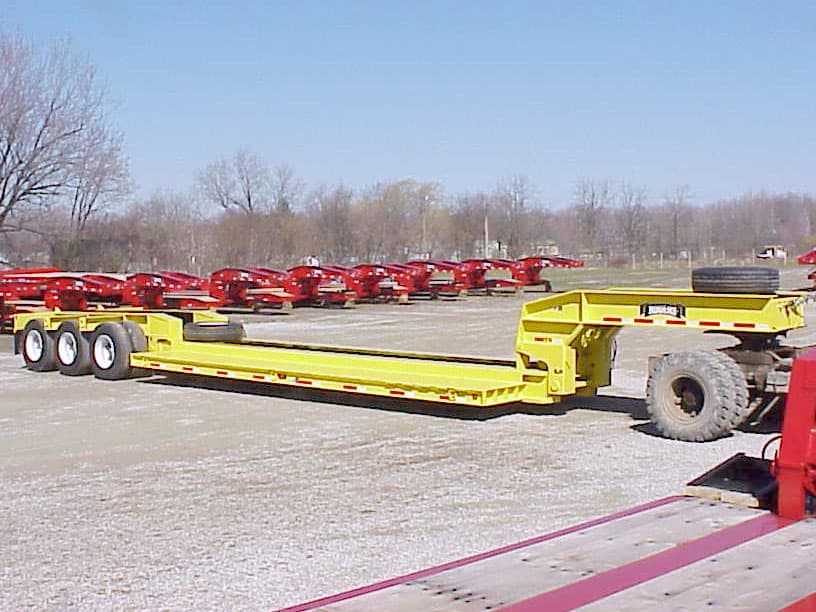

SP80DS-3XDRSP 80-Ton Detachable Gooseneck
- Capacity
- 80 ton
- Axles
- 3
- Deck length
- 25 ft
- Deck height
- 15 in
Overview
From Rogers Brothers
This 80-ton lowboy is a specialized trailer featuring a drop side deck with a detachable rear frame and a powerful ram-foot style detachable gooseneck.
Specifications
Capacity
- Capacity
- 80.0-ton
- Concentrated Load
- 160,000-pounds
- Concentrated Load Length
- 13'-0"
Dimensions
- Deck Length
- 25'-0"
- Loaded Deck Height
- 15"
- Deck Width
- 10'-0"
- Deck Style
- Drop Side
Running Gear
- Axles
- 3 axles
- Axle Type
- 30,000 lbs. capacity with oil-bathed bearings
- Suspension
- 90,000 lb. capacity tri-axle severe-duty spring walking beam
- Tires
- 315/80R22.5(L) low-profile tubeless radial
- Wheels
- 20" spoke type with 22.5 x 9.00 rims
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Modular
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
