Rogers Brothers
SP88PL 88-Ton Detachable Gooseneck
- Capacity
- 88 ton
- Axles
- 4
- Deck length
- 26 ft
- Deck height
- 24 in
Overview
From Rogers Brothers

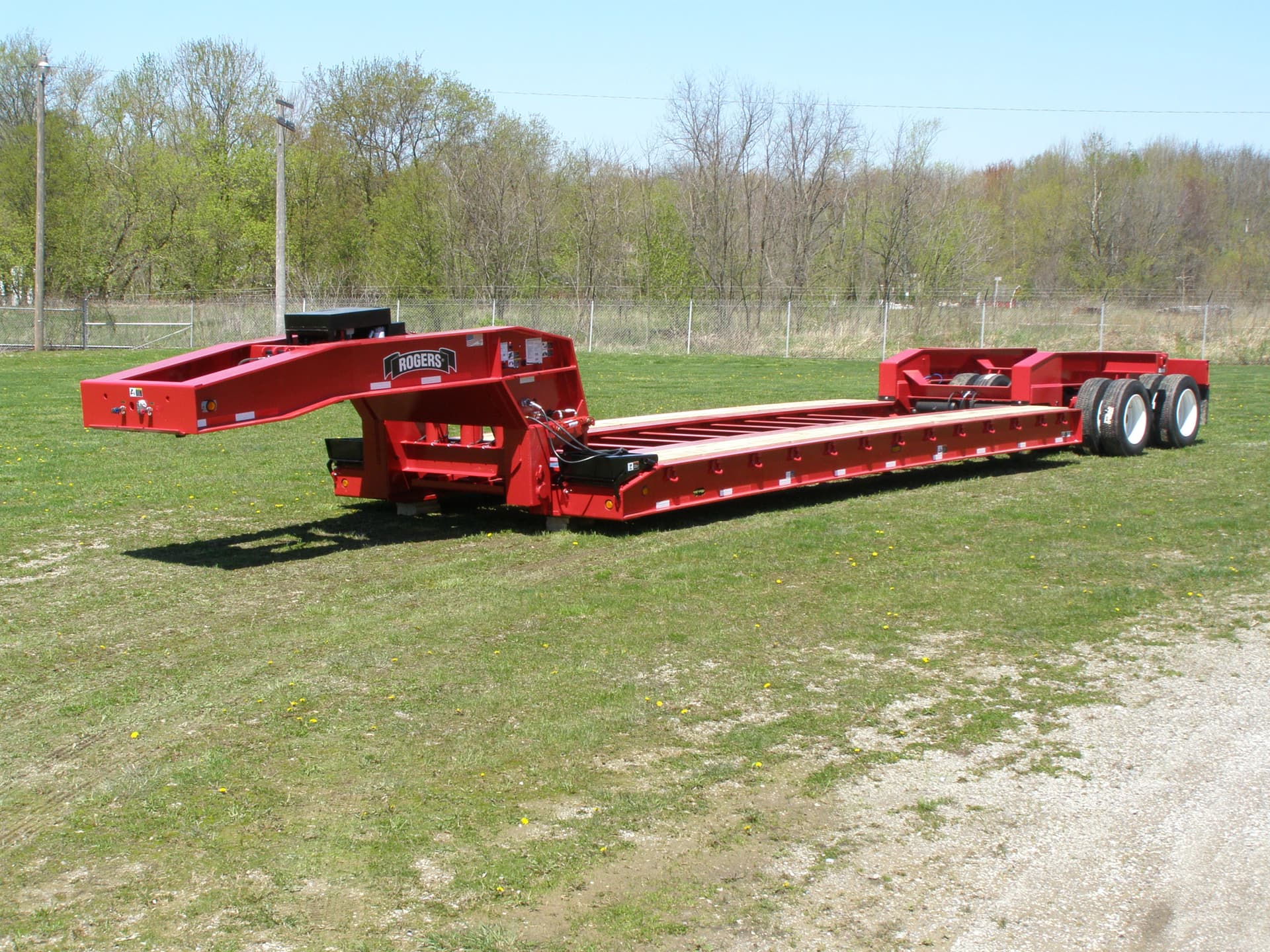

This detachable gooseneck trailer has a hauling capacity of 88 tons concentrated in 1/2 the deck length. The "Bucket Pocket" in the deck and "Boom Trough" between the rear frame beams gives the bucket and stick of an excavator a place to nestle between the wheels and into the deck to improve overhead clearance. Standard features: Four beam cambered deck design with 16" main beams; 2.75 Air dried oak flooring; 22 Bent lashing D's, 11 on each side of deck; "Bucket Pocket" with last 3 cross members lowered between main beams.
Specifications
Capacity
- Capacity
- 88.0-ton
- Concentrated Load
- 176,370-pounds
- Concentrated Load Length
- 13'-0"
Dimensions
- Deck Length
- 26'-0"
- Loaded Deck Height
- 24"
- Deck Width
- 11'-0"
- Deck Style
- Platform
Running Gear
- Axles
- 4 axles
- Axle Type
- 33,070 lb capacity with grease-filled bearings
- Suspension
- 132,277 lb capacity trunnion style suspensions
- Tires
- 275/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes (no ABS)
General
- Trailer Type
- Detachable Gooseneck
- Trailer Use
- Front Loading: Detachable Gooseneck
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
