Trail King

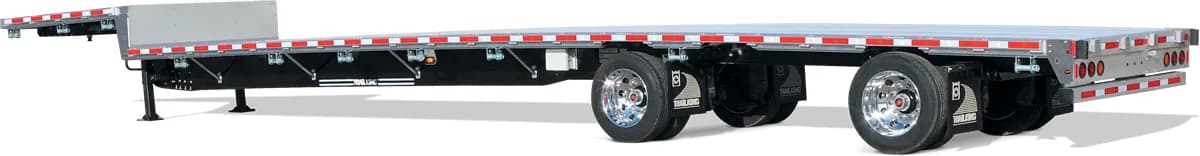

Steel-Aluminum Step Deck
Interested in Our Hauling Solutions?
- Deck length
- 10 ft
- Deck height
- 34 in
Overview

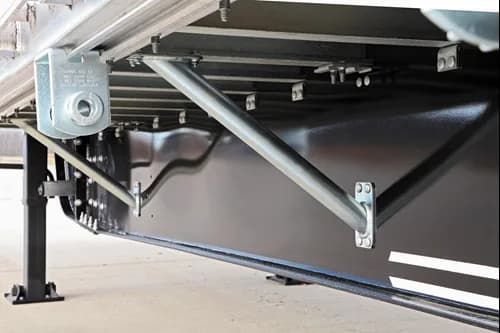

Reinforced Steel GooseneckWeb stiffener bars and 1/4"-thick halfmoon gussets on one side of the web, plus overlapping “wrap-around” flanges where the gooseneck meets the main beam, reinforce the transition area of the gooseneck for uncompromised strength in this critical area. Also included: 4-bolt, easy-access front panel, stake pockets, and flag holders. Knee Braces and Steel CrossmembersKnee braces are bolted on, not welded, reducing stress on the main beam and crossmembers. Crossmembers are on 12" centers in the main deck and 18" centers in the upper deck. Air-Operated Control ValvesHigh quality air-operated valves are contained in a conveniently located, protective sealed box, and control the slider axle brakes/locks and suspension raise/lower functions. Actual functions will vary based on trailer options. Landing GearThe landing gear features a long-lasting, rust-resistant Armor-coated finish. Paint options available. The Aluminum-Steel Combo Center Frame Step Deck trailer has the dual benefits of aluminum and steel; Steel provides strength while aluminum provides weight savings and corrosion resistance. This step deck trailer is engineered to accommodate your toughest payload, regardless of size or shape. Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King Steel-Aluminum Step Deck Protect Your Investment with Our Complete Line of Services Trail King Paint Options We don’t have any current videos of this product on our YouTube channel (YET), but go subscribe so you don’t miss any new uploads!
Specifications
General
- Standard Equipment
- TK80ACS-34
- Concentrated Load Rating
- 60k in 10’
- Cross Member Spacing (Main/Upper)
- 12’/18”
- Anti-Lock Braking System
- 2S1M
- w/ Gauge in Enclosure
- X
- 2-Speed Landing Gear
- X
- Flag Holders
- 3/Side
- Document Holder
- 4 ½“ Round
- Red and White Conspicuity Markings
- X
- Standard TK Decals
- X
- 3/8” x 3” Aluminum Rub Rail w/ Double Chain Spools
- X
- Stake Pockets (24” O.C.) – Sides & Front
- X
- Dock Bumpers
- X
- Landing Gear
- features a long-lasting, rust-resistant Armor-coated finish. Paint options available.
Capacity
- Base Weight
- 9,575 lbs. lbs
- Capacity
- 80k Distributed
- Aluminum Decking w/ (3) Flush Apitong Nailers
- X
Dimensions
- Loaded Deck Height
- 34”
- Loaded Ground Clearance
- 9”
- Overall Width
- 102”
- Overall Length
- 47’ 10”
- Fifth Wheel Height
- 48”-50”
- Upper Deck Length
- 10’
- Full-Length Hook Track
- X
Gooseneck
- Kingpin Setting
- 14”
Running Gear
- Suspension
- Holland CB23U
- Suspension Configuration
- Tandem
- Suspension Spacing
- 50”
- Rear Axle Location
- Wheels Back
- Drum Brakes
- 12 ¼ x 7 ½
- Brake Rating
- 20k
- Wheels
- 6.75 x 17.5 Steel
- Tires
- 235/75R17.5
- Armor Coated Landing Gear & Suspensions
- X
Electrical
- Sealed Electrical System
- X
- LED Lights
- X
- DOT Required Lights w/ Mid-Turn & 3rd Tail Light
- X
Frame
- Anti-Corrosion Barrier Between Aluminum and Steel
- X
- Zinc Coated Steel Components
- X
About step deck trailers
A step deck (or drop deck) has a short upper deck over the fifth wheel and a longer lower deck stepped down behind it. The lower deck sits around 36 to 40 inches high — roughly two feet lower than a flatbed — so it carries freight up to about 10 feet tall without an over-height permit. Common lengths are 48 and 53 feet, with ramps optional for wheeled equipment.
