Trail King
TKEFX Blade Hauler
Find Your Specialized Solution
- Capacity
- 35 ton
- Axles
- 2
Overview

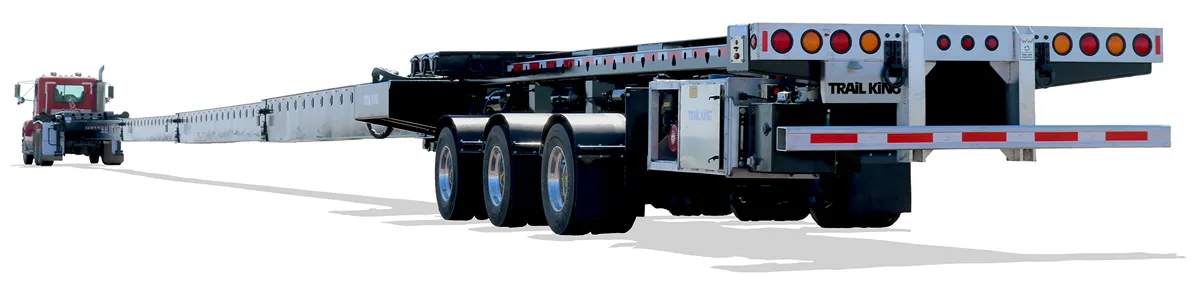

The EFX Extendable trailer is designed to accommodate a variety of wind turbine blade sizes, styles, and lengths. Its narrow, double-telescopic, mono-frame main and low-profile gooseneck keep the overall dimensions to a minimum. Today’s extra-long blades can be maneuvered while in transit or at the job site with hydraulic turntable-style steering. Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King TKEFX Blade Hauler Protect Your Investment with Our Complete Line of Services Trail King Paint Options
Specifications
General
- EFX – Standard Equipment
- 70EFX
Capacity
- Capacity
- 70,000 lbs. lbs
Dimensions
- Overall length (closed)
- 53’
- Overall length (open)
- 144’ 5” (including pull-out)
- Gooseneck length (detachable, low profile)
- 8’10”
- 5th wheel height
- 49”
- Width
- 8’ 6”
Running Gear
- Axles
- 2
About double drop trailers

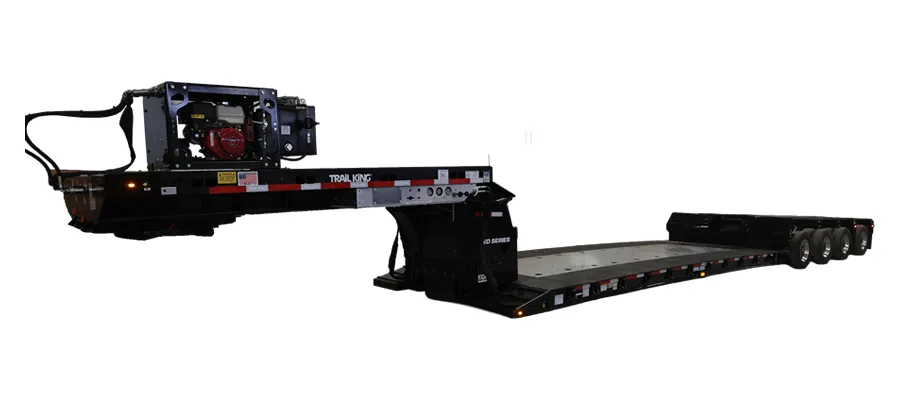

A double drop has two steps: one behind the neck and one ahead of the rear axles, forming a low well in the middle. The well sits close to the ground and typically runs 25 to 29 feet, which is where tall, heavy items ride — presses, transformers, compact cranes. Detachable and fixed-neck versions exist, and extendable wells handle over-length pieces.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
