Trail King

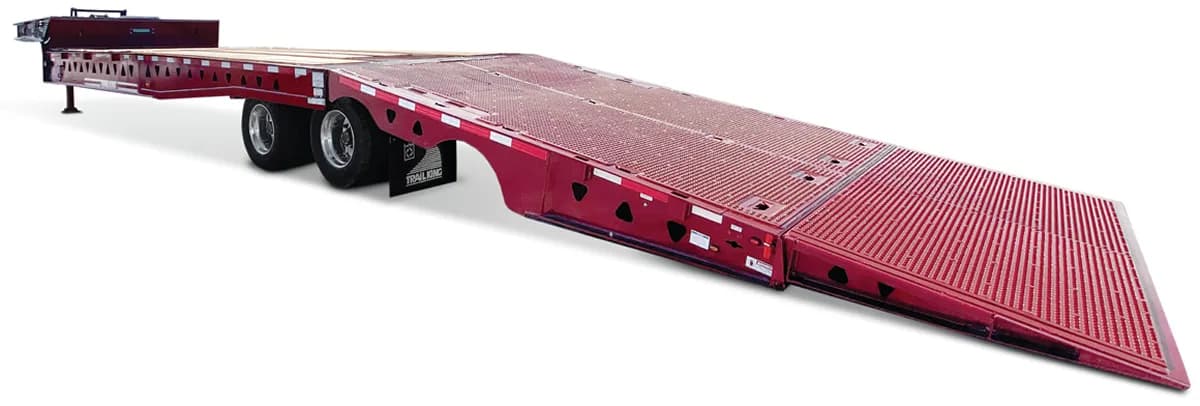

TKHST Hydraulic Sliding Tail
Find Your Specialized Solution
- Capacity
- 25 ton
- Axles
- 2
Overview
Winch & RollerEven disabled equipment can be loaded with ease with the standard 20,000-lb. winch and 9/16” cable, which comes standard with winch guard, skid plate (shown left) and 80’ cable with locking safety hook. Optional roller shown above (right). Hydraulic Valve ControlsDual-side push/pull hydraulic controls and Kar-Tech remote are standard (winch only.) Optional full-function remote offers 2-speed operation. Slow-speed function decreases speed by 50% to allow for better maneuverability of tricky equipment. Centered RollersAs the axles travel, the dovetail deck rides securely on 5"-wide rollers that are centered on the main beams. This prevents damage to the flange, a common problem in offset designs. Side-Access Tool BoxesTwo side-access toolboxes at front of upper deck with chrome T-handles are standard. (Top access with gas shock is optional. Lights are optional.) Grease BankEasy access grease points (along the sides of the trailer) make greasing the entire trailer, including axle components and cylinder pivots, a simple, convenient process. The Trail King Hydraulic Sliding Tail offers a 10 degree load angle and low ground clearance to allow equipment, such as scissor lifts and man lifts, to be loaded easily. Featuring wider track axles as standard, customers are legally hauling throughout North America. The HST has been engineered for easy maintenance, improved scalability, and Trail King’s quality strength, which you’ve come to rely on. Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King TKHST Hydraulic Sliding Tail Protect Your Investment with Our Complete Line of Services Trail King Paint Options We don’t have any current videos of this product on our YouTube channel (YET), but go subscribe so you don’t miss any new uploads!
Specifications
General
- HST – Standard Equipment
- 80HST
- Winch Guard
- X
- 80’ winch cable with locking safety hook
- X
- Five pair of vertical supports inside fold-under
- X
- External stake pockets on 48″ centers, alternating with internal key slots for a tie down every 24″
- X
- Automatic slack adjusters
- X
- 2 speed park stands
- X
Capacity
- Capacity in 10’
- 50,000 lbs. lbs
- Wireless remote for winch (1 function, 2 buttons)
- X
- 1 3/8” (NET) apitong decking
- X
Dimensions
- Overall length
- 47’ 11”
- 14” kingpin setting with 86” swing clearance
- X
- 49” loaded 5th wheel height
- X
- 10-ga. Floor plate decking on upper deck
- X
- 2 tool boxes at front of upper deck
- X
- 10’ recessed ramp to upper deck (10 degrees)
- X
- Tail raises to 58” dock height and lowers to ground
- X
- Air ride raising/lowering with switch on upper deck
- X
Hydraulics
- Hydraulic winch with level wind
- 20,000 lbs
- 16’7” hydraulic tail with 52” fold-under
- X
- No traveling hydraulic lines contained in protective track
- X
- Dual Hydraulic controls (each side)
- X
Running Gear
- 10 degree load angle (with 245/75R 17.5 tires)
- X
- Hydraulic sliding axles
- X
- 49” axle spacing
- X
- 25,000 lb axles (58” wall)
- 2
- Air ride suspension
- X
- 4S2M ABS brakes
- X
- 6.75 x 17.5 8-hole hub piloted wheels
- X
- 245/75R 17.5 – 16 ply radial tires
- X
Frame
- Heavy duty I-beam style tail hinge beam
- X
- Star Traction over steel in tail and fold-under approach
- X
Electrical
- Air and electrical lines contained in protective track
- X
- Three tail lights per side (amber in center). Fourth strobe optional
- X
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
