Capacity
25 ton

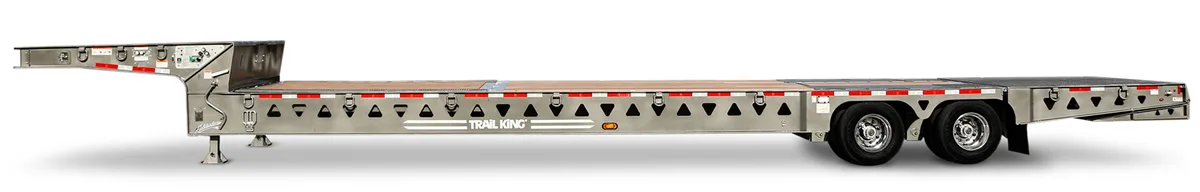

Overview

From Trail King

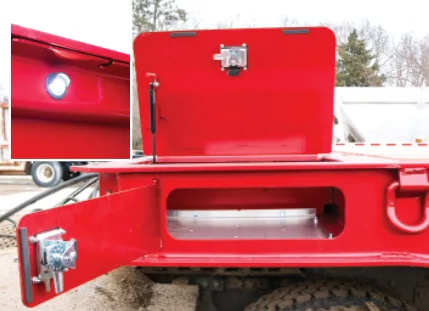

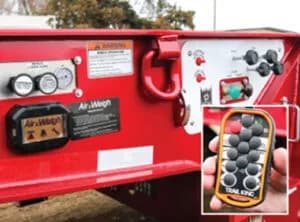

Two Side-Access Tool BoxesAt front of upper deck with chrome T-handles as standard. (Top access with gas shock is optional. Lights are optional.) Winch, Roller, & Skid PlateEven disabled equipment can be loaded with ease with the 20,000-lb. winch & 9/16” cable (standard with winch guard and 80’ cable with locking safety hook). A skid plate is standard (pictured left), or opt for a roller, instead (pictured right). Lighted Hydraulic Valve ControlsPush/pull lighted hydraulic controls on both sides and Kar-Tech remote are standard (winch only). Optional full function remote (shown) offers 2-speed operation. Slow-speed function decreases speed by 50% to allow for better maneuverability of tricky equipment. Flip Tail LockIntegrated flip tail lock prevents the tail from settling to the ground, even in the event of hydraulic failure. Upper Deck Ramp10' hydraulic, recessed ramp at an 11 degree load angle. A locking mechanism ensures that the upper deck stays in place during loading. The Trail King Hydraulic Tail offers a reduced load angle (12.5 degrees), improved weight distribution and a redesigned tail make the Hydraulic Tail your go-to choice. Featuring wider track axles as standard, loading and hauling has never been safer or simpler. The HT offers the most scalability while maintaining dependable load-hauling strength and durability. The TKHT is as light as possible, without sacrificing the rugged strength Trail King is known for. Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King TKHT Hydraulic Tail Protect Your Investment with Our Complete Line of Services Trail King Paint Options TKHT – HYD. TAIL in Augmented Reality powered by JigSpace TKHT – HYD. TAIL (DOUBLE DROP) in augmented reality powered by JigSpace

Specifications

General

STANDARD EQUIPMENT TK80HT
2-AXLE
Winch Guard
X
80’ winch cable with locking safety hook
X
Internal 2-way key slots alternating with external stake pockets for tie downs approximately 24″ OC
X
Automatic slack adjusters
X
One-piece oil seals
X
2 speed park stands
X
Red & white conspicuity markings
X
Mud flaps
X
Flip Tail Lock
prevents the tail from settling to the ground, even in the event of hydraulic failure. Upper Deck Ramp10' hydraulic, recessed ramp at an 11 degree load angle. A locking mechanism ensures that the upper deck stays in place during loading.

Capacity

Capacity (in 10’)
50,000 lbs.
Wireless remote for winch (1 function, 2 buttons)
X
1 3/8” (NET) apitong decking (deck/upper deck ramp)
X

Dimensions

Overall length
47’ 11”
Width
102”
14” kingpin setting with 88” swing
X
9’ straight drop upper deck
X
49” loaded 5th wheel height
X
10’ recessed upper deck ramp w/ ramp locks
X
10-ga. Floor plate decking on upper deck
X
2 tool boxes at front of upper deck
X
Tail raises to 58” dock height and lowers to ground
X
Star traction over 10 ga. smooth steel on deck and fold-uder
X
Air ride raising/lowering with switch on upper deck
X
Mid-turn signal clearance lights
X
Upper Deck Ramp
w/ ramp locks X10-ga. Floor plate decking on upper deckXHydraulic winch with level wind 20,000 lbsWinch GuardX80’ winch cable with locking safety hookXWireless remote for winch (1 function, 2 buttons) X2 tool boxes at front of upper deckX8′ hydraulic tail with 52” fold-underXTail raises to 58” dock height and lowers to groundX1/4″ floor plate over wheels w/ last 2′ Star Traction over 1/4″ smooth steelXStar traction over 10 ga. smooth steel on deck and fold-uderXAir ride raising/lowering with switch on upper deckXInternal 2-way key slots alternating with external stake pockets for tie downs approximately 24″ OCX1 3/8” (NET) apitong decking (deck/upper deck ramp)X49” axle spacingX25,000 lb axles (5/8” wall)XAir ride suspensionX4S2M ABS brakesXAutomatic slack adjustersX6.75 x 17.5 8-hole steel disc wheelsXOne-piece oil sealsXZip Tork axle nutsX245/70R 17.5 radial tiresXLighted Dual Hydraulic controls (each side)X2 speed park standsXRubber mounted sealed lights with sealed harness systemXLED lights, 50 state legalXThree tail lights per side (amber in center)XElectrical system per DOT regulationsXMid-turn signal clearance lightsXRed & white conspicuity markingsXMud flapsXVideos3D Model<span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start"></span>TKHT – HYD. TAIL in Augmented Reality powered by JigSpace

Hydraulics

Hydraulic winch with level wind
20,000 lbs
8′ hydraulic tail with 52” fold-under
X
Lighted Dual Hydraulic controls (each side)
X

Running Gear

1/4″ floor plate over wheels w/ last 2′ Star Traction over 1/4″ smooth steel
X
49” axle spacing
X
25,000 lb axles (5/8” wall)
X
Air ride suspension
X
4S2M ABS brakes
X
6.75 x 17.5 8-hole steel disc wheels
X
Zip Tork axle nuts
X
245/70R 17.5 radial tires
X

Electrical

Rubber mounted sealed lights with sealed harness system
X
LED lights, 50 state legal
X
Three tail lights per side (amber in center)
X
Electrical system per DOT regulations
X
