Trail King

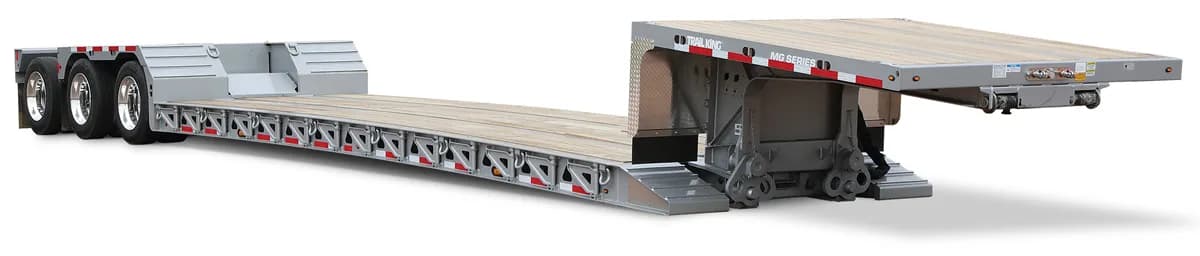

TKMG-HG Detachable Gooseneck
Interested in Our Hauling Solutions?
- Capacity
- 30 ton
Overview
Optional Flip AxleConfigure your MG-HG to suit your particular hauling needs, with the addition of a flip axle or third fixed axle. Mini BoomDeeper mini-boom trough provides clearance for equipment with hitches. In addition to providing a convenient step for the operator, the removable plates provide easy access to axles. Traction aids and D-rings in transition area are standard OutriggersThe MG-HG includes thirteen pair of various kinds of D-rings (straight, bent-style, recessed, and pan-style), top flange keyhole slots for ½” chain on 24” centers, and swing-out brackets on 24” centers for mounting (optional) full-depth outriggers. 3 position stirrupsThe three position stirrups (on mechanical gooseneck only) can easily accommodate a variety of desired 5th wheel heights and deck heights. Roller assemblyRemovable roller pin makes roller maintenance and replacement easier. Optional retractable gooseneck pins makes the switch to a flip neck possible without removing rollers. Access panel is removable for easy maintenance of hydraulic, air and electrical lines. The Commercial MG-HG Detachable Gooseneck trailer comes loaded with the most standard equipment of any trailer of its kind on the market. Engineered to accommodate four interchangeable gooseneck styles, the MG-HG offers the ultimate in hauling versatility. Call our toll-free number 800-843-3324 The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager. Trail King TKMG-HG Detachable Gooseneck Protect Your Investment with Our Complete Line of Services Trail King Paint Options TKMG-HG Detachable Gooseneck Poster
Specifications
General
- TKMG-HG STANDARD EQUIPMENT
- 70MG
Capacity
- Capacity (concentrated in 16′)
- 60,000 lbs lbs
Dimensions
- Full width mechanical gooseneck (14″ KP / 82″ SC)
- 9’10”
About removable gooseneck trailers
A removable gooseneck trailer is a lowboy whose front neck detaches — hydraulically or mechanically — so the deck rests on the ground and becomes its own ramp. Tracked and low-clearance machines drive on from the front without separate ramps or a dock. RGNs are the default choice for excavators over 30 tons, and the format scales with added axles, jeeps and boosters into the 100-ton-plus range for permitted loads.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
