Rogers Brothers
TVT25 25-Ton Fixed Gooseneck
- Capacity
- 25 ton
- Axles
- 2
- Deck length
- 18 ft
Overview
From Rogers Brothers

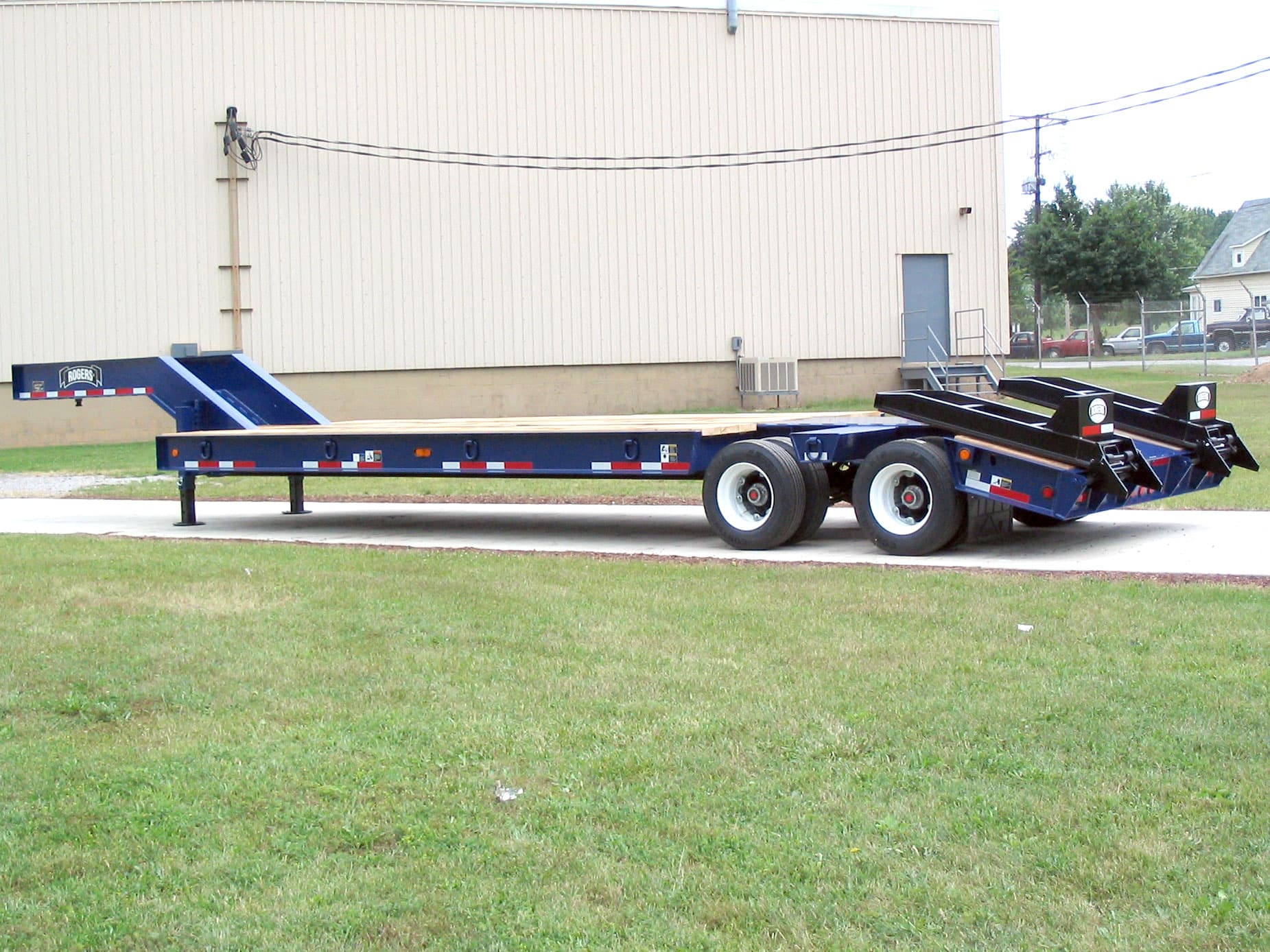

ROGERS Fixed Gooseneck TVT25 has the convenience of rear loading with a spacious level deck and high ground clearance ideal for off-road hauling. Standard features: Low-profile fixed gooseneck; Pin type landing legs; Gooseneck storage area over the king pin; Full 1-3/4" air-dried oak decking; Total (10) bent lashing D's; Trunnions between wheels; Flag holders; Oak-covered 14º sloped beavertail; center 1/4" smooth cover plate; Dual spring-assisted "E–Z Flip" rear ramps, oak-covered, laterally adjustable; LED lights: US DOT-approved rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).
Specifications
Capacity
- Capacity
- 25.0-ton
- Concentrated Load
- 50,000-pounds
- Concentrated Load Length
- 12'-0"
Dimensions
- Deck Length
- 18'-0"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 2 axles
- Axle Type
- 22,500 lbs. capacity with oil-bathed bearings
- Suspension
- 44,800 lb. capacity tandem axle multi-leaf 4-spring
- Tires
- 215/75R17.5(H) low-profile tubeless radial
- Wheels
- 17.5 x 6.75 8-hole steel disc
- Brakes
- 12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- TVT
- Trailer Use
- Rear Loading: Fixed Gooseneck
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
