Rogers Brothers
TVT35 35-Ton Fixed Gooseneck
- Capacity
- 35 ton
- Axles
- 2
- Deck length
- 20 ft
- Deck height
- 35 in
Overview
From Rogers Brothers

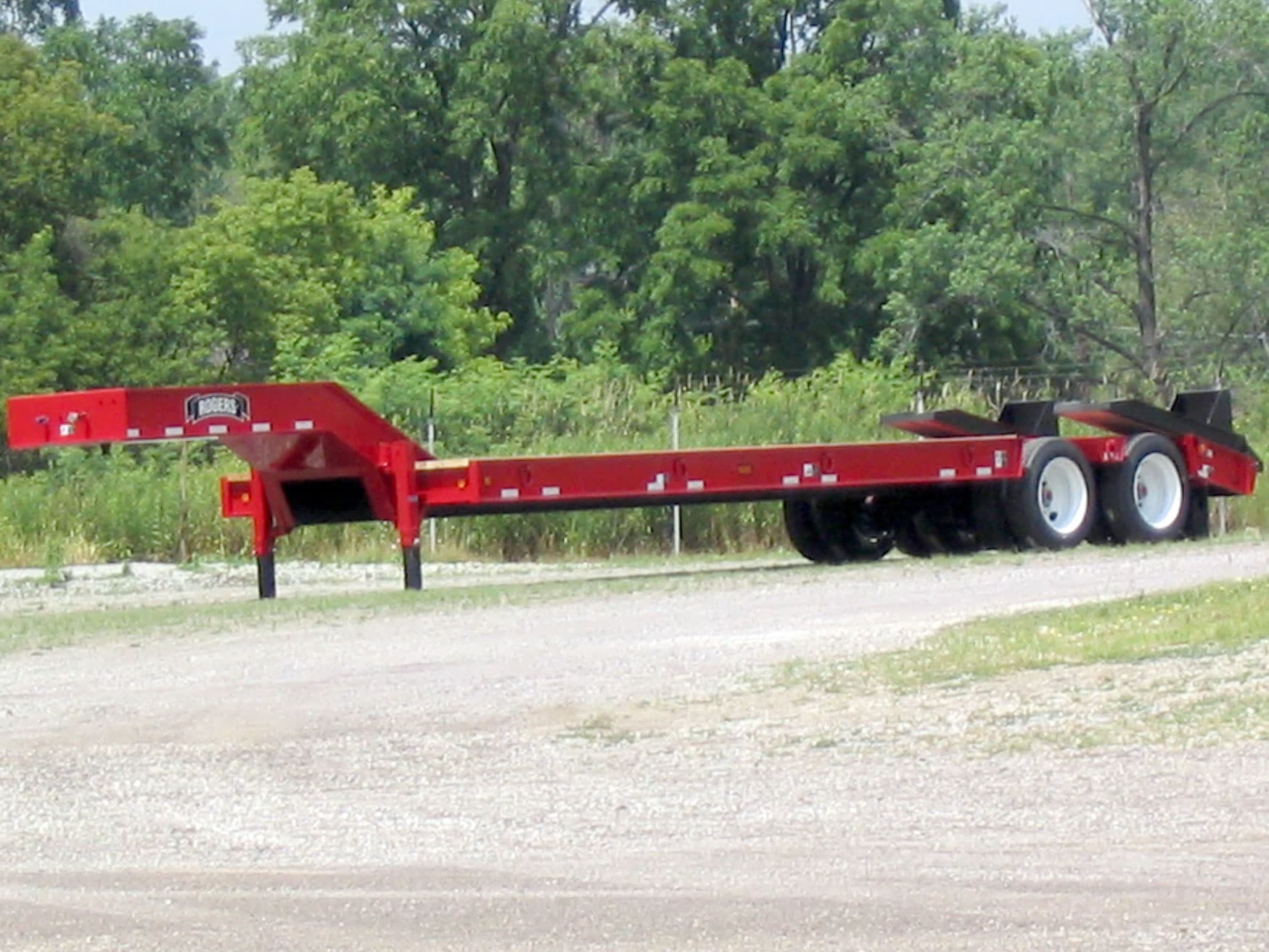

TVT35 is a 35-ton fixed gooseneck which is economical and dependable, easy to load and safe to operate. It’s the choice of companies that need a low deck, but with greater ground clearance than a "double drop" lowboy. Standard features: Low-profile fixed gooseneck; Pin type landing legs; Storage area over the king pin; Full 2" air-dried oak decking; Total (12) bent lashing D’s; Trunnions between wheels; Oak-covered 14º sloped beavertail; Center rear frame smooth 1/4" cover plate; Dual spring-assisted "E–Z Flip" oak-covered rear loading ramps, laterally adjustable; LED lights: US DOT-approved rubber-mounted with sealed wiring and 7-wire socket; Remote air tank drain; Epoxy primer; Rogers Red or Black industrial enamel finish coat: (hover to see samples).
Specifications
Capacity
- Capacity
- 35.0-ton
- Concentrated Load
- 70,000-pounds
- Concentrated Load Length
- 14'-0"
Dimensions
- Deck Length
- 20'-0"
- Loaded Deck Height
- 35"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 2 axles
- Axle Type
- 22,500 lbs. capacity with oil-bathed bearings
- Suspension
- 50,000 lb. capacity tandem axle heavy-duty multi-leaf 4-spring
- Tires
- 255/70R22.5(H) low-profile tubeless radial
- Wheels
- 22.5 x 8.25 10-hole steel disc
- Brakes
- 16 1/2" x 7" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- TVT
- Trailer Use
- Rear Loading: Fixed Gooseneck
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
