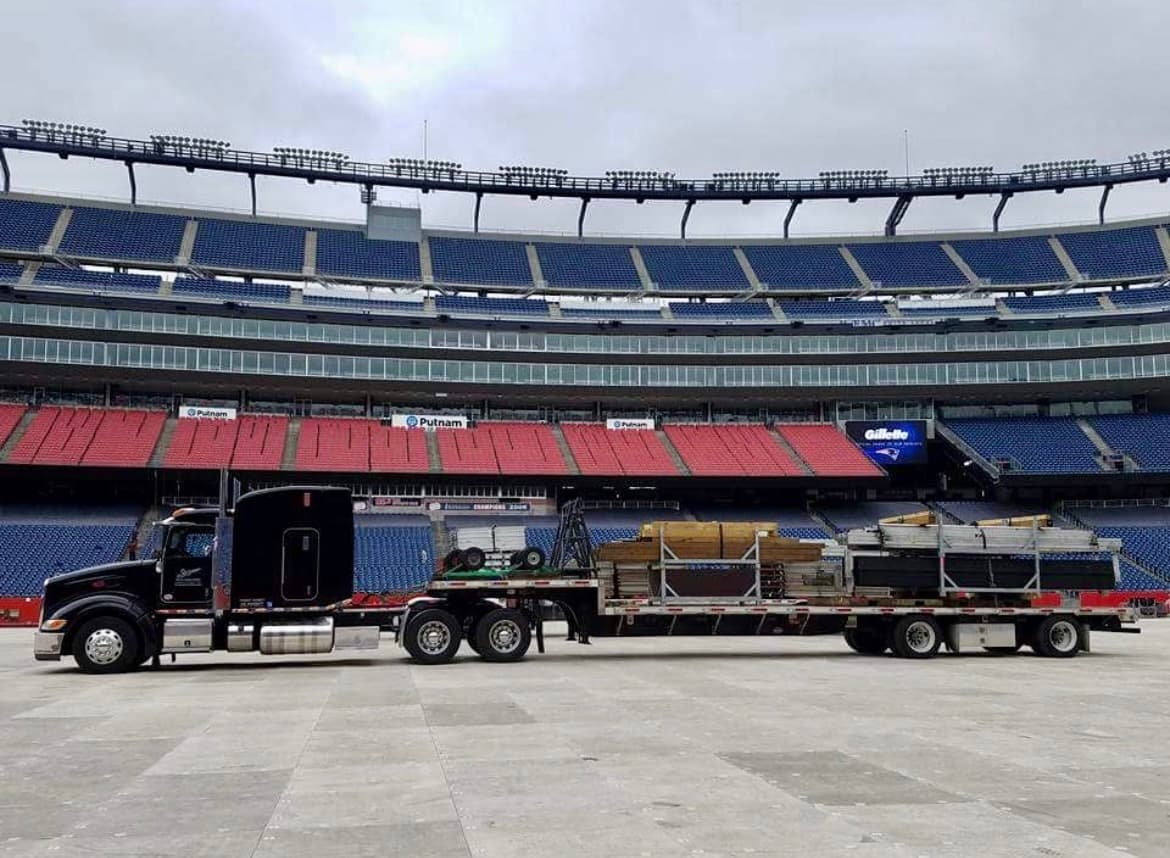

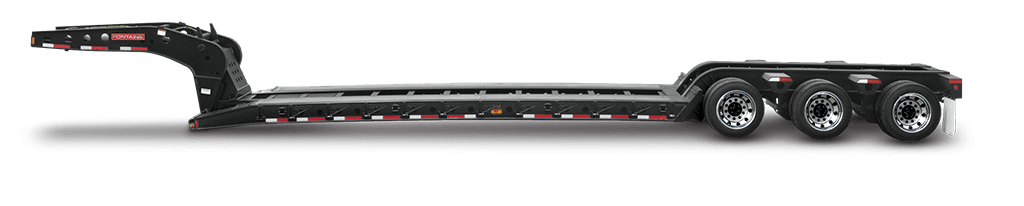

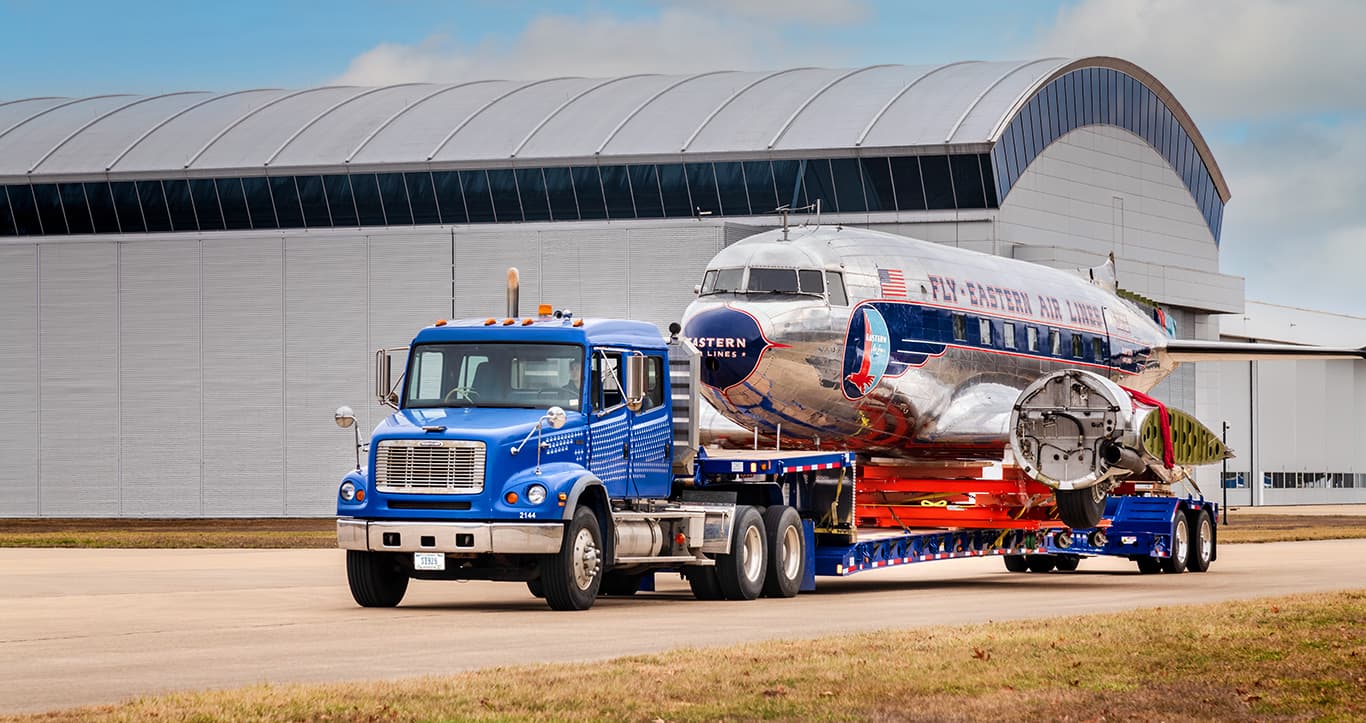

Fontaine Trailer
Workhorse 50
- Capacity
- 50 ton
- Axles
- 3
- Deck length
- 25 ft
- Deck height
- 20 in
Overview
The Fontaine Trailer Workhorse 50 is a 50-ton lowboy trailer with 3 axles, a 25-foot deck and a 20-inch loaded deck height. Trailers of this type typically haul excavators, dozers, cranes and drill rigs.
Specifications
Capacity
- Standard SpecificationsCapacity50 tons in 12-foot length, 52 tons in 16 feet length - GAWR and GVWR determine legal payloadsTrailerLength
- 50 feet 1 inchWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length) - NGBDeckDeck type:FLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)AxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel coversTiresTire size:255/70R 22.5 Economical OEM Standard
- Capacity50 tons in 12-foot length, 52 tons in 16 feet length - GAWR and GVWR determine legal payloadsTrailerLength
- 50 feet 1 inchWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length) - NGBDeckDeck type:FLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)AxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel coversTiresTire size:255/70R 22.5 Economical OEM Standard
- Axle Capacity
- 25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
- 25,000 lb. nominal capacity per axle NOTE
- GAWR determined by suspension type, brakes, tires and other components.
General
- TrailerLength
- 50 feet 1 inchWidth:8 feet 6 inches
- Length
- 50 feet 1 inch
- Width
- 8 feet 6 inches
- Design
- Hydraulic removable non-ground bearing design
- Swing radius
- 102 inches (11 feet 11 inches overall gooseneck length) - NGB
- DeckDeck type
- FLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:20 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)
- Deck type
- FLD
- Flooring
- 1.5 inch nominal wood (side rails only)
- BogieDeck to bogie connection
- FixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel covers
- Deck to bogie connection
- Fixed
- Rear bogie height
- 40 inches to top flange 37 inches to top of bolsters
- Covered Rear Bogie
- Weld-on load bearing wheel covers
Gooseneck
- GooseneckDesign
- Hydraulic removable non-ground bearing designSwing radius:102 inches (11 feet 11 inches overall gooseneck length) - NGB
Dimensions
- Deck length
- 25 feet clear deck length, 24 feet optional
- Deck width
- 8 feet 6 inches
- Loaded deck height/clearance
- 20 inches with 6 inches ground clearance
Axles
- AxlesStandard trailer axles
- 3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"
- Standard trailer axles
- 3
- Axle spread
- 54.5"
Tires & Wheels
- TiresTire size
- 255/70R 22.5 Economical OEM Standard
- Tire size
- 255/70R 22.5 Economical OEM Standard
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
