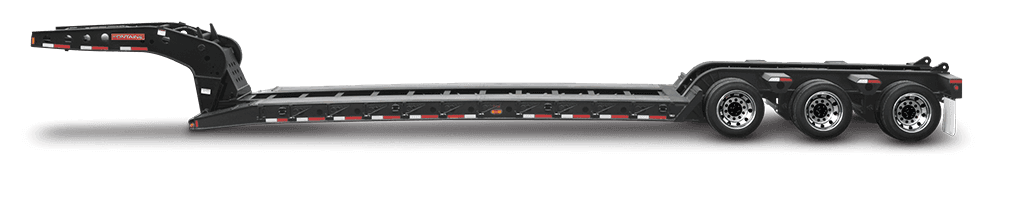

Workhorse 51 trailer

Fontaine Trailer

Workhorse 51

Capacity
51 ton
Axles
3
Deck length
25 ft
Deck height
22 in

Overview

The Fontaine Trailer Workhorse 51 is a 51-ton lowboy trailer with 3 axles, a 25-foot deck and a 22-inch loaded deck height. Trailers of this type typically haul excavators, dozers, cranes and drill rigs.

Specifications

Capacity

Standard SpecificationsCapacity51 tons in 12-foot length - GAWR and tire ratings determine legal payloadsTrailerLength
50 feet 11-1/2 inchesWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:108 inches (11 feet 11 inches overall gooseneck length) - NGBDeckDeck type:FLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)AxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel coversTiresTire size:255/70R 22.5 H ply OEM Standard
Capacity51 tons in 12-foot length - GAWR and tire ratings determine legal payloadsTrailerLength
50 feet 11-1/2 inchesWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:108 inches (11 feet 11 inches overall gooseneck length) - NGBDeckDeck type:FLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)AxlesStandard trailer axles:3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"BogieDeck to bogie connection:FixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel coversTiresTire size:255/70R 22.5 H ply OEM Standard
Axle Capacity
25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.
25,000 lb. nominal capacity per axle NOTE
GAWR determined by suspension type, brakes, tires and other components.

General

TrailerLength
50 feet 11-1/2 inchesWidth:8 feet 6 inches
Length
50 feet 11-1/2 inches
Width
8 feet 6 inches
Design
Hydraulic removable non-ground bearing design
Swing radius
108 inches (11 feet 11 inches overall gooseneck length) - NGB
DeckDeck type
FLDDeck length:25 feet clear deck length, 24 feet optionalDeck width:8 feet 6 inchesLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal wood (side rails only)
Deck type
FLD
Flooring
1.5 inch nominal wood (side rails only)
BogieDeck to bogie connection
FixedRear bogie height:40 inches to top flange 37 inches to top of bolstersDesign:Covered Rear Bogie:Weld-on load bearing wheel covers
Deck to bogie connection
Fixed
Rear bogie height
40 inches to top flange 37 inches to top of bolsters
Covered Rear Bogie
Weld-on load bearing wheel covers

Gooseneck

GooseneckDesign
Hydraulic removable non-ground bearing designSwing radius:108 inches (11 feet 11 inches overall gooseneck length) - NGB

Dimensions

Deck length
25 feet clear deck length, 24 feet optional
Deck width
8 feet 6 inches
Loaded deck height/clearance
22 inches with 6 inches ground clearance

Axles

AxlesStandard trailer axles
3Axle Capacity:25,000 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components.Axle spread:54.5"
Standard trailer axles
3
Axle spread
54.5"

Tires & Wheels

TiresTire size
255/70R 22.5 H ply OEM Standard
Tire size
255/70R 22.5 H ply OEM Standard

About lowboy trailers

A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.

Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
