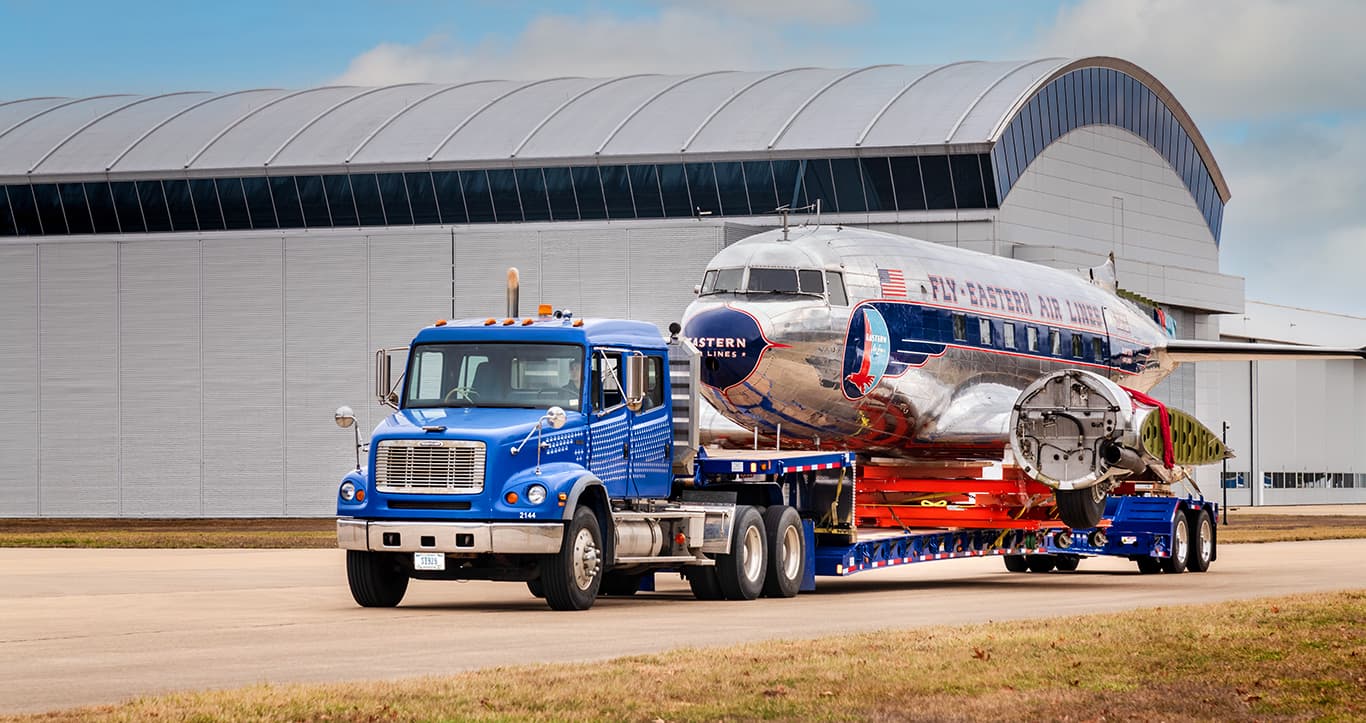

Workhorse 55PVR trailer

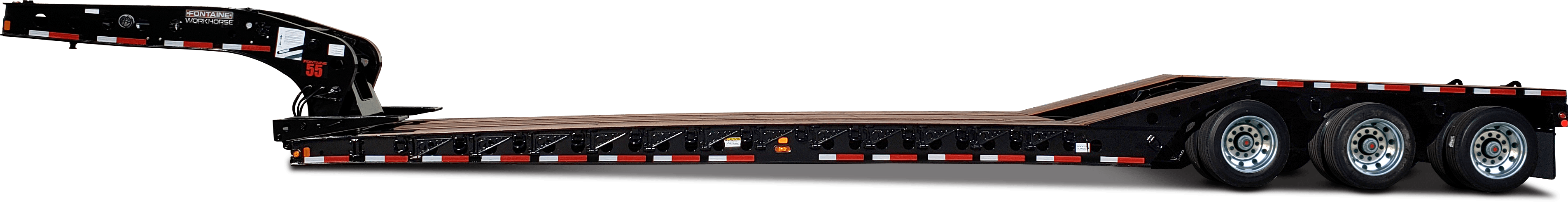

Workhorse 55PVR trailer

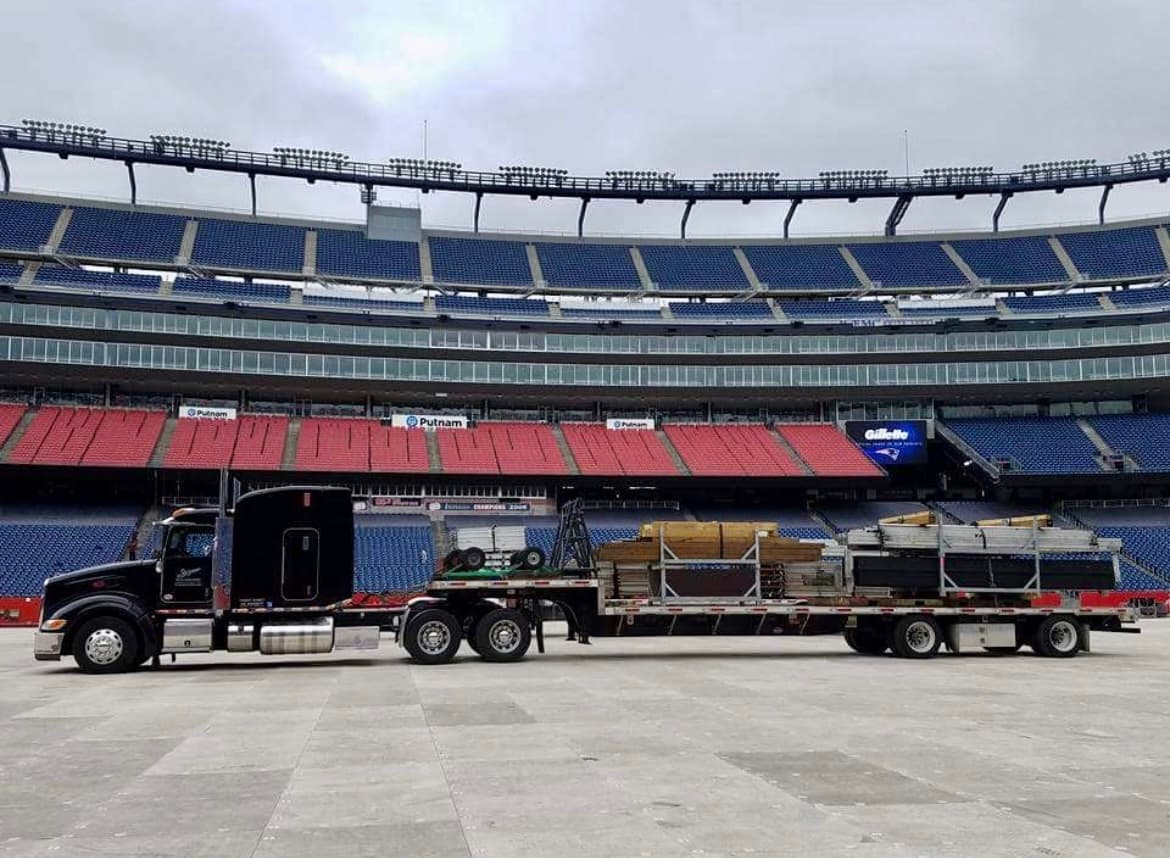

Workhorse 55PVR trailer
Workhorse 55PVR trailer
Workhorse 55PVR trailer

Fontaine Trailer

Workhorse 55PVR

Capacity
55 ton
Axles
3
Deck length
24 ft
Deck height
22 in

Overview

The Fontaine Trailer Workhorse 55PVR is a 55-ton lowboy trailer with 3 axles, a 24-foot deck and a 22-inch loaded deck height. Trailers of this type typically haul excavators, dozers, cranes and drill rigs.

Specifications

Capacity

Standard SpecificationsCapacity55 tons in 16-foot length with 3 or 4 axles close coupled payloads50 tons in 12-foot length with 3 or 4 axles close coupledGAWR and tire ratings determine legal payloadsTrailerLength
53 feetWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:8 feet 6 inchesDeckDeck type:Flat Level Deck design (tapered beam design)Deck length:24 feet clear deck lengthDeck width:8 feet 6 inches overallLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal apitong wood (full width)AxlesStandard trailer axles:3Axle Capacity:22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other componentsAxle spread:54.5 inches (between axles)BogieDeck to bogie connection:Fixed with ramps outboard of mainbeamsRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)TiresTire size:255/70R 22.5 OEM standardRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
Capacity55 tons in 16-foot length with 3 or 4 axles close coupled payloads50 tons in 12-foot length with 3 or 4 axles close coupledGAWR and tire ratings determine legal payloadsTrailerLength
53 feetWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:8 feet 6 inchesDeckDeck type:Flat Level Deck design (tapered beam design)Deck length:24 feet clear deck lengthDeck width:8 feet 6 inches overallLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal apitong wood (full width)AxlesStandard trailer axles:3Axle Capacity:22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other componentsAxle spread:54.5 inches (between axles)BogieDeck to bogie connection:Fixed with ramps outboard of mainbeamsRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)TiresTire size:255/70R 22.5 OEM standardRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
Axle Capacity
22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components
22,500 lb. nominal capacity per axle NOTE
GAWR determined by suspension type, brakes, tires and other components

General

TrailerLength
53 feetWidth:8 feet 6 inches
Length
53 feet
Width
8 feet 6 inches
Design
Hydraulic removable non-ground bearing design
Swing radius
8 feet 6 inches
DeckDeck type
Flat Level Deck design (tapered beam design)Deck length:24 feet clear deck lengthDeck width:8 feet 6 inches overallLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal apitong wood (full width)
Deck type
Flat Level Deck design (tapered beam design)
Flooring
1.5 inch nominal apitong wood (full width)
BogieDeck to bogie connection
Fixed with ramps outboard of mainbeamsRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
Deck to bogie connection
Fixed with ramps outboard of mainbeams
Rear bogie height
43 inches to top flange
Covered Rear Bogie
Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)

Gooseneck

GooseneckDesign
Hydraulic removable non-ground bearing designSwing radius:8 feet 6 inches

Dimensions

Deck length
24 feet clear deck length
Deck width
8 feet 6 inches overall
Loaded deck height/clearance
22 inches with 6 inches ground clearance

Axles

AxlesStandard trailer axles
3Axle Capacity:22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other componentsAxle spread:54.5 inches (between axles)
Standard trailer axles
3
Axle spread
54.5 inches (between axles)
You can reposition or replace a damaged kingpin on your lowbed trailer with ease. Dual kingpin slots let you reposition the kingpin from 102" swing radius to 81" swing radius. Use 81" kingpin position to comply with kingpin-to-rear-axle restrictions.NOTE
Available on Workhorse 55LCC. Not available on Workhorse 50 and 51.

Tires & Wheels

TiresTire size
255/70R 22.5 OEM standardRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
Tire size
255/70R 22.5 OEM standard

About lowboy trailers

A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.

Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
