Fontaine Trailer
Workhorse 55PVR PRO
- Capacity
- 55 ton
- Axles
- 3
- Deck length
- 24 ft
- Deck height
- 22 in
Overview

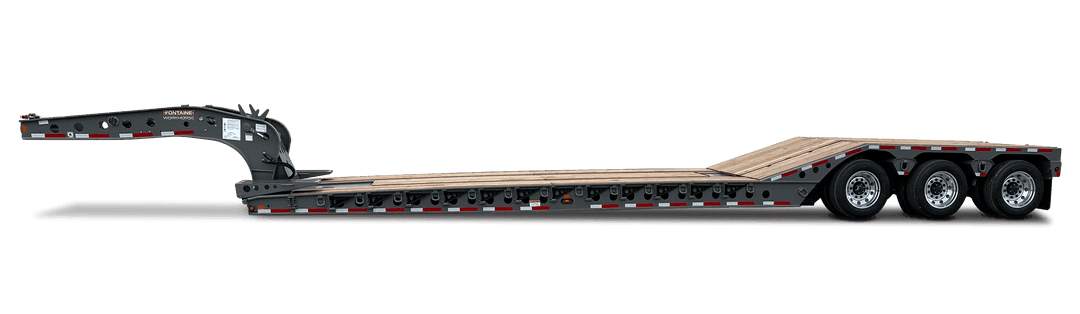

The Fontaine Trailer Workhorse 55PVR PRO is a 55-ton lowboy trailer with 3 axles, a 24-foot deck and a 22-inch loaded deck height. Trailers of this type typically haul excavators, dozers, cranes and drill rigs.
Specifications
Capacity
- Standard SpecificationsCapacity55 tons in 16-foot length with 3 or 4 axles close coupled payloads50 tons in 12-foot length with 3 or 4 axles close coupledGAWR and tire ratings determine legal payloadsTrailerLength
- 53 feetWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:8 feet 6 inchesDeckDeck type:Flat Level Deck design (tapered beam design)Deck length:24 feet clear deck lengthDeck width:8 feet 6 inches overallLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal apitong wood (full width)AxlesStandard trailer axles:3Axle Capacity:22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other componentsAxle spread:54.5 inches (between axles)BogieDeck to bogie connection:Fixed with ramps outboard of mainbeamsRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)TiresTire size:255/70R 22.5 OEM standardRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
- Capacity55 tons in 16-foot length with 3 or 4 axles close coupled payloads50 tons in 12-foot length with 3 or 4 axles close coupledGAWR and tire ratings determine legal payloadsTrailerLength
- 53 feetWidth:8 feet 6 inchesGooseneckDesign:Hydraulic removable non-ground bearing designSwing radius:8 feet 6 inchesDeckDeck type:Flat Level Deck design (tapered beam design)Deck length:24 feet clear deck lengthDeck width:8 feet 6 inches overallLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal apitong wood (full width)AxlesStandard trailer axles:3Axle Capacity:22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other componentsAxle spread:54.5 inches (between axles)BogieDeck to bogie connection:Fixed with ramps outboard of mainbeamsRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)TiresTire size:255/70R 22.5 OEM standardRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
- Axle Capacity
- 22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other components
- 22,500 lb. nominal capacity per axle NOTE
- GAWR determined by suspension type, brakes, tires and other components
General
- TrailerLength
- 53 feetWidth:8 feet 6 inches
- Length
- 53 feet
- Width
- 8 feet 6 inches
- Design
- Hydraulic removable non-ground bearing design
- Swing radius
- 8 feet 6 inches
- DeckDeck type
- Flat Level Deck design (tapered beam design)Deck length:24 feet clear deck lengthDeck width:8 feet 6 inches overallLoaded deck height/clearance:22 inches with 6 inches ground clearanceFlooring:1.5 inch nominal apitong wood (full width)
- Deck type
- Flat Level Deck design (tapered beam design)
- Flooring
- 1.5 inch nominal apitong wood (full width)
- BogieDeck to bogie connection
- Fixed with ramps outboard of mainbeamsRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
- Deck to bogie connection
- Fixed with ramps outboard of mainbeams
- Rear bogie height
- 43 inches to top flange
- Covered Rear Bogie
- Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
Gooseneck
- GooseneckDesign
- Hydraulic removable non-ground bearing designSwing radius:8 feet 6 inches
Dimensions
- Deck length
- 24 feet clear deck length
- Deck width
- 8 feet 6 inches overall
- Loaded deck height/clearance
- 22 inches with 6 inches ground clearance
Axles
- AxlesStandard trailer axles
- 3Axle Capacity:22,500 lb. nominal capacity per axle NOTE: GAWR determined by suspension type, brakes, tires and other componentsAxle spread:54.5 inches (between axles)
- Standard trailer axles
- 3
- Axle spread
- 54.5 inches (between axles)
- You can reposition or replace a damaged kingpin on your lowbed trailer with ease. Dual kingpin slots let you reposition the kingpin from 102" swing radius to 81" swing radius. Use 81" kingpin position to comply with kingpin-to-rear-axle restrictions.NOTE
- Available on Workhorse 55LCC. Not available on Workhorse 50 and 51.
Tires & Wheels
- TiresTire size
- 255/70R 22.5 OEM standardRear bogie height:43 inches to top flangeDesign:Connections to accept optional 51/60 rear axleCovered Rear Bogie:Load Bearing Wheel Covers – Apitong wood filled with center insert for full width loading (insert has 4-point lift capability with mechanical locking pin in front; bolts in bump stop in rear)
- Tire size
- 255/70R 22.5 OEM standard
About lowboy trailers
A lowboy drops the deck between the gooseneck and the rear axles, putting the load 18 to 24 inches off the ground. That low center of gravity is what lets tall equipment — excavators, dozers, cranes, drill rigs — travel under bridges without an over-height permit. Fixed-neck lowboys load from the rear or side; detachable-neck models let the machine drive straight on from the front. Typical capacities run 35 to 60 tons, with multi-axle configurations reaching well beyond that.
